🔍 Product Overview

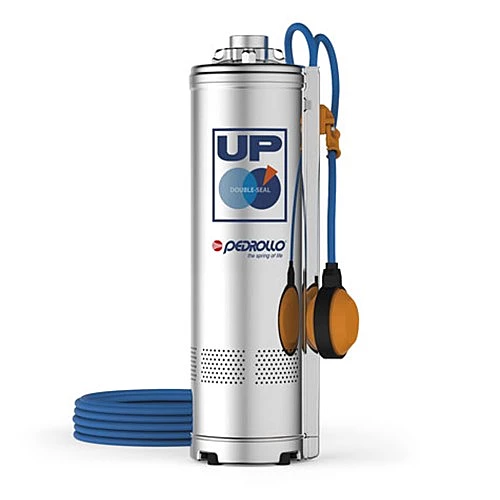

This 3-phase, 480V, 2HP submersible pump is built for robust performance in water systems requiring high reliability and vertical installation. Ideal for use in commercial booster systems, rainwater harvesting setups, and fire protection solutions. Includes durable stainless steel housing and advanced internal components for consistent operation and longevity.
REQUIRES CHECK VALVE
Vertical or Horizontal Cistern Pump
1¼" FPT Connection
3.1 Amps
28 GPM @ 160' TDH 116 PSID @ Shutoff
Operates to 3" minimum submergence.
36 lb. dry weight.

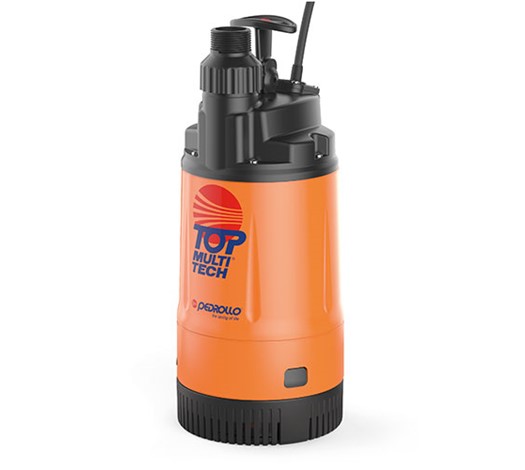

The Pedrollo TOP Multi-Tech 5 is a high-efficiency, multi-stage submersible pump designed for clean water applications. Ideal for domestic water supply, irrigation, and rainwater harvesting systems, this pump offers reliable performance with integrated electronic controls. 10 GPM @ 50 PSI, 60 PSI shutoff, 1 HP, start point 20 psi (fixed). Automatic dry run protection. Blockage/pump exerciser function. Thermal overload. Class F Insulation. 30' USA grounded plug. 1.25" NHT (or MPT) connection.
External pressure tank recommended, to prevent short cycling and premature pump wear.

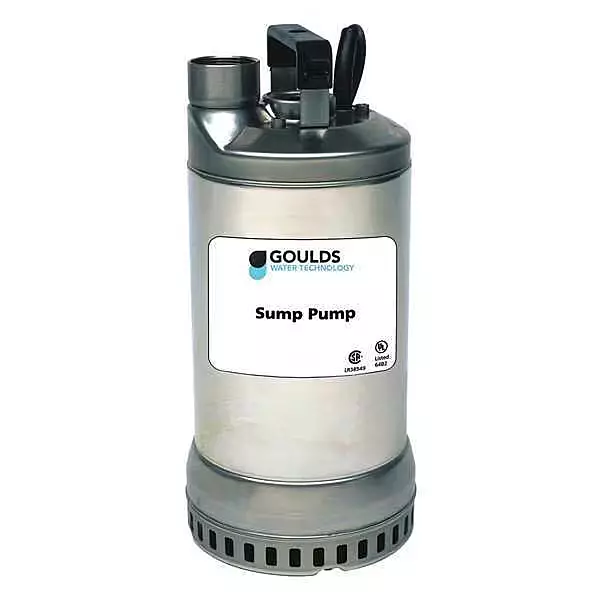

The Goulds Water Technology 1DW51E1EA Submersible Dewatering Pump features an AISI 304 stainless steel open impeller, casing, polyurethane coated diffuser, and 304 SS shaft with keyed and locking cap screw impeller fastening. The pump has heavy duty upper and lower ball bearing construction. The motor is air filled class F insulated design for continuous use. Pump ratings are within the motor’s working limits and can be operated continuously without damage.
Applications for the 1DW51E1EAinclude draining ditches and pits, industrial water drainage/transfer, handling dirty waters, water transfer, excavating drainage in building trade.
Specifications:
- Motor: 1Hp, 230V, Single Phase
- Capacities: up to 110 GPM
- Maximum Heads: up to 66 feet TDH
- Maximum Pump Submergence: 23 ft.
- Maximum Amps: 6.3

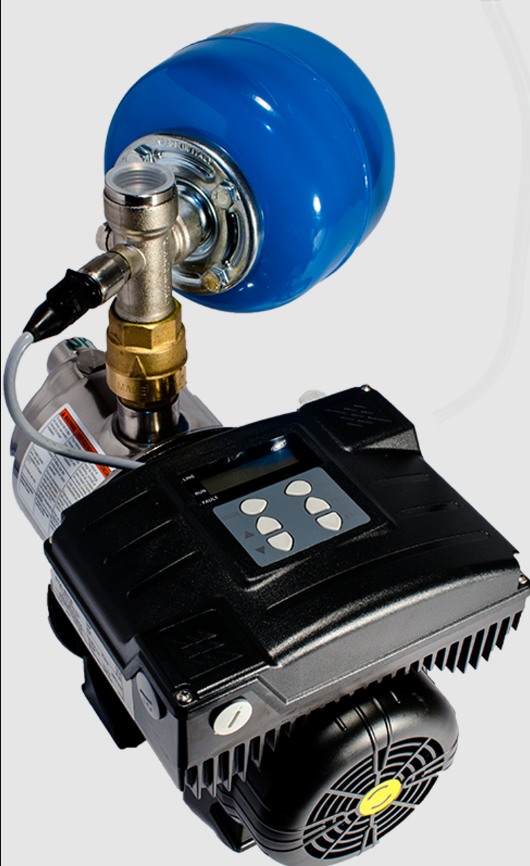

The Pentair Intelliboost is a compact, all-in-one variable speed booster system designed to deliver constant water pressure in residential and light commercial applications. It integrates a multi-stage pump, variable frequency drive (VFD), pressure transducer, and expansion tank into a single unit for easy installation and operation.
🔍 Product Overview
This 3-phase, 480V, 2HP submersible pump is built for robust performance in water systems requiring high reliability and vertical installation. Ideal for use in commercial booster systems, rainwater harvesting setups, and fire protection solutions. Includes durable stainless steel housing and advanced internal components for consistent operation and longevity.
REQUIRES CHECK VALVE
Vertical or Horizontal Cistern Pump
1¼" FPT Connection
3.1 Amps
28 GPM @ 160' TDH 116 PSID @ Shutoff Operates to 3" minimum submergence.
36 lb. dry weight.

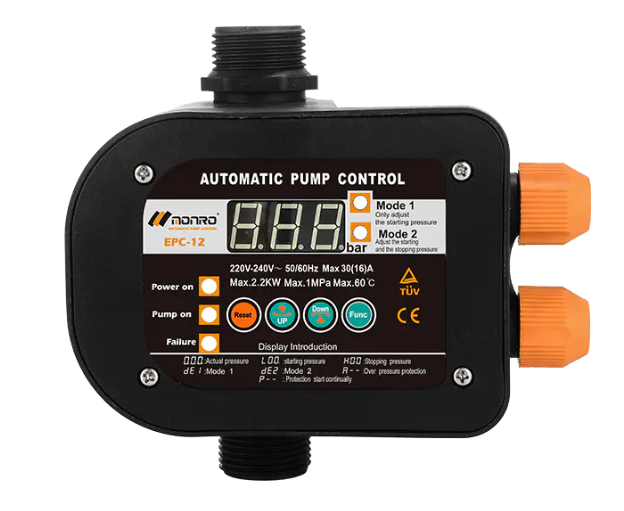

The EPC 12 is a versatile electronic pump controller built for 120V and 240V systems. It manages pump operation based on system demand, with adjustable pressure setpoints and dry-run protection. This version does not include a pressure tank and is ideal for custom setups where a separate tank is used.

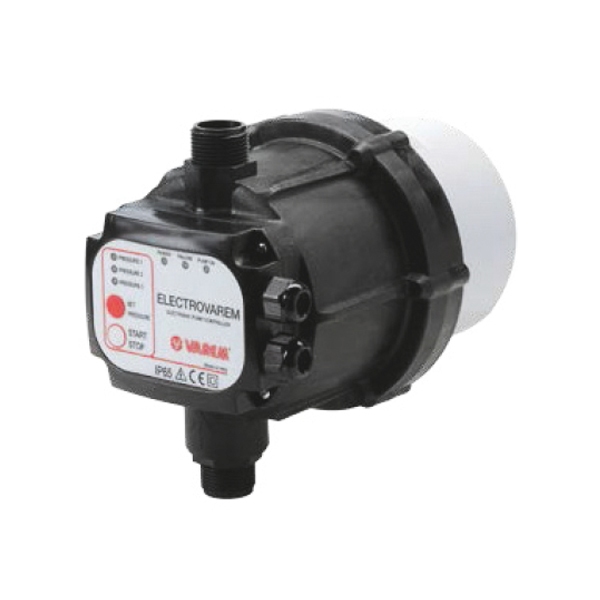

The Electrovarem EV003763PL16M000 is an advanced electronic pump controller designed for automatic water pressure management in residential and light commercial applications. It integrates a 0.8-gallon pressure tank and offers comprehensive protection features, including dry-run prevention, overpressure safeguards, and water hammer mitigation. This controller ensures consistent water pressure and extends pump lifespan by reducing frequent cycling.

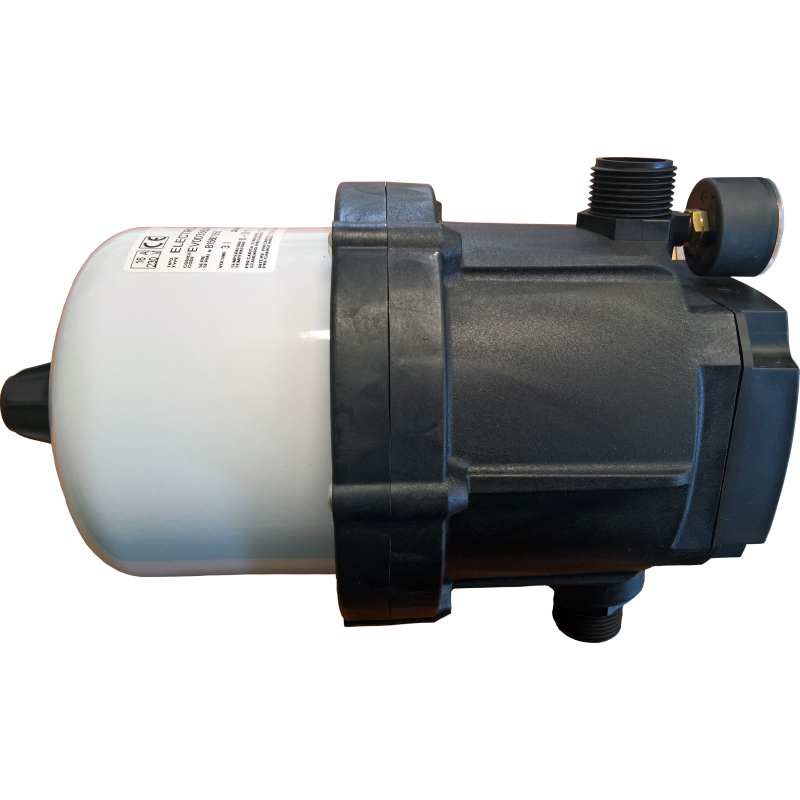

The Electrovarem EV003763PL26M000 is a high-capacity pump controller designed for both 120V and 240V systems. It features a built-in 1-liter pressure tank, integrated check valve, and run-dry protection with automatic reset. Starts on flow to prevent nuisance cycling from leaks.
TOP MULTI-TECH pumps are recommended for pumping clean water and liquids that are not chemically aggressive for the materials from which the pump is made. Because of their high efficiency and reliability they are suitable for use in applications such as domestic water supply from reservoirs, tanks or relatively deep wells, for drawing rain water from cisterns to water gardens or for use in irrigation systems, etc. An internal electronic device starts or stops the pump automatically when the tap is opened or closed.
Performance Range:- Flow rate up to 120.00 l/min (7.2 m³/h)
- Head up to 42.00 m
Application Limit:- Temperature of the liquid to +40 °C
- 5 m maximum immersion depth
- Maximum height between pump and point of use 10 m
- Suction down to 34 mm above ground level
- Continuous service S1
The Sta-Rite P43B0030A3-C is a 3 HP, 230V, 3-phase, 4-inch submersible motor from the Pentek XE Series, designed for residential, commercial, and agricultural water systems. Constructed with 304L stainless steel and featuring a Kingsbury-type thrust bearing, this motor ensures durability and reliable performance in demanding environments.
