Pressure Tanks

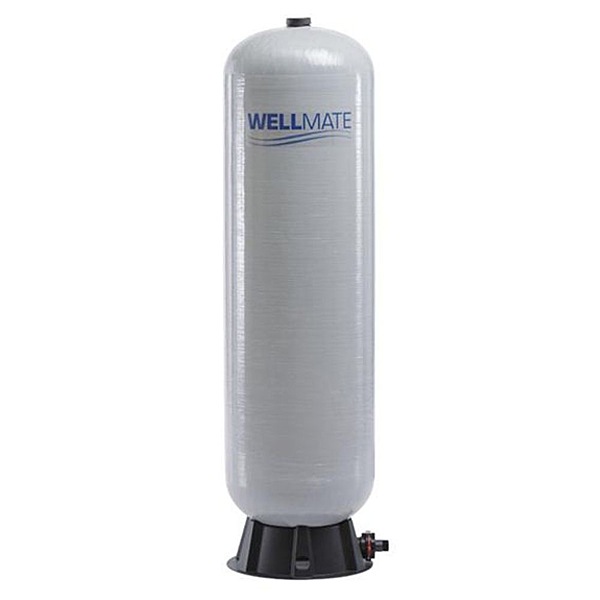

The WellMate WM-35WB is a corrosion-proof well pressure tank that is made with a composite of continuous fiberglass strands sealed with high-grade epoxy resin. They won't rust, dent, or come apart at the seams, and a rugged impact proof base is included. The WellMate WM-35WB comes with a 5 year warranty with a one year replacement labor allowance.
Features:
- Corrosion-proof composite construction
- Won’t rust in corrosive environments, particularly important in coastal regions
- Little or no maintenance
- Longer life, greater flexibility
- Light weight
- Replaceable air cell

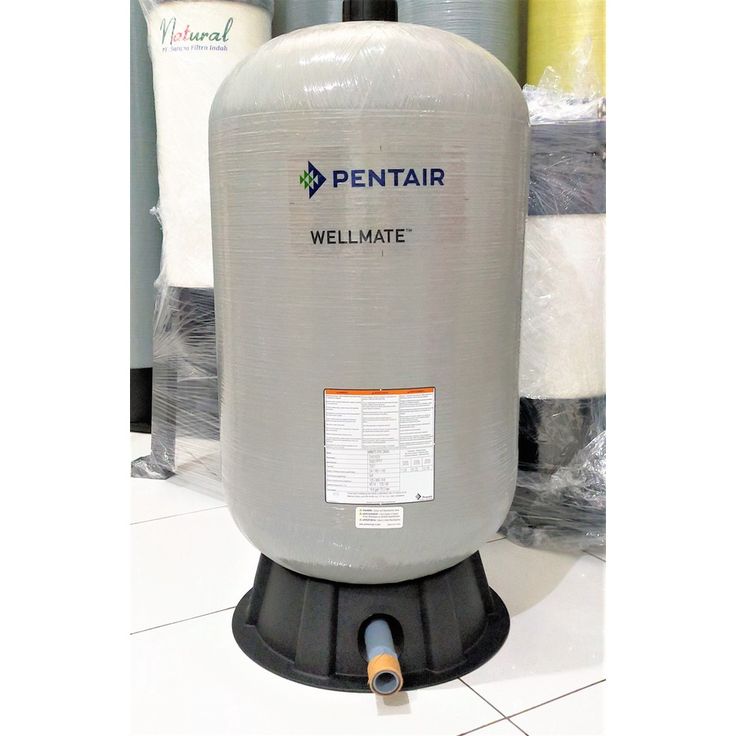

The WellMate WM-6 (WM0075 C) Pressure Tank is a durable, corrosion-resistant solution for residential and light commercial water systems. Constructed from fiberglass, it offers a lightweight alternative to traditional steel tanks, simplifying installation and maintenance. 19.8 gallon, 16"D x 32"H, 125 psig max, 1" MPT connection, suitable for potable water.
The WellMate WM-20 Classic (Part Number: CH31050) is a 60.0-gallon (227-liter) composite pressure tank designed for residential, light commercial, and pressure boosting applications. Its corrosion-proof construction and lightweight design offer significant advantages over traditional steel tanks.

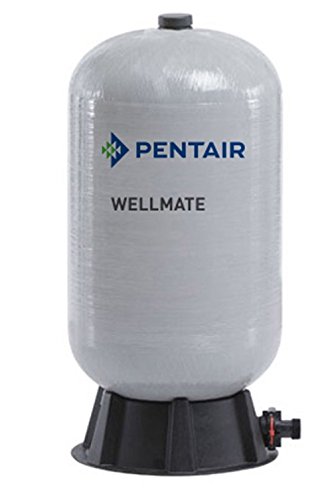

40.3-gallon WellMate Composite Pressure Tank with a Quick Connect bottom connection, replaceable air cell, and corrosion-resistant fiberglass construction. Designed for residential and light commercial well-water pressure systems.
Key Specifications:
- Brand/Model: WellMate WM-12 / WM0150
- Capacity: 40.3 gallons (153 liters)
- Drawdown: approx. 12.1 gallons (45.8 L) at 30/50 psi switch setting
- Material: Fiberglass composite (HDPE liner, fiberglass filament wound outer shell, epoxy resin sealed)
- Connection: 1" male NPT with Quick Connect bottom fitting
- Tank Dimensions: 16" diameter x 57" overall height
- Maximum Operating Pressure: 125 psi (8.6 bar)
- Maximum Temperature: 120°F
- Assembly Weight: approx. 29 lb
- Warranty: 5 years

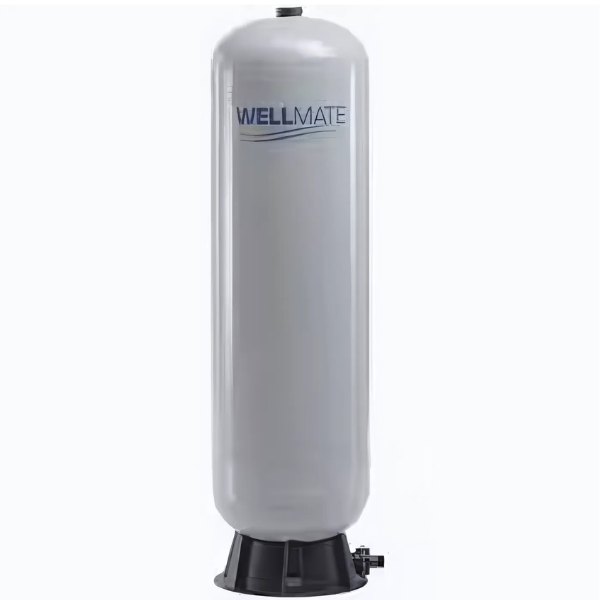

The WellMate WM-25WB QC is an 86.7-gallon composite Fiberglass pressure tank built for residential, agricultural, and light commercial water systems. It features a rustproof fiberglass construction and Quick Connect (QC) bottom plumbing for simplified installation and maintenance. 24"D x 56"H, 125 psig max, 1¼" MPT connection, suitable for potable water. Replaceable bladder, 5 year warranty. Stocked in Doraville Warehouse
- Drawdown/Gallons: 35.9 @ 30-50 psi
- 24-1/4" x 74-1/2"
- NSF/ANSI Standard 61 Section 8 and Annex G
