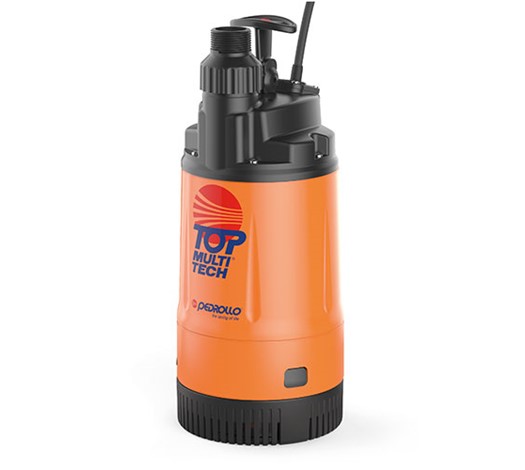

Pedrollo TOP MULTI-TECH 5 220V Automatic Submersible Pump

Model: TOP MULTI-TECH 5

Voltage: 220V–240V, 60Hz

Power: 1.1 HP (0.75 kW)

Application: Automatic pressure boosting for clean water in wells, tanks, or cisterns

Pump Type: Multi-stage submersible

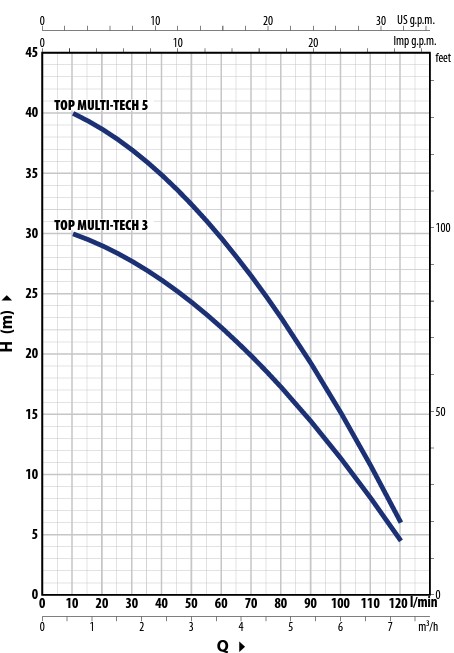

Max Flow Rate: 120 L/min (7.2 m³/h)

Max Head: 52 meters

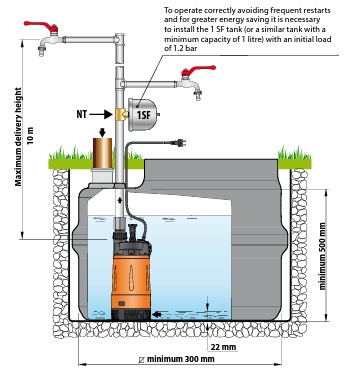

Max Submersion Depth: 5 meters

Max Water Temperature: +40°C

Inlet/Outlet Size: 1¼" BSP

Integrated Features:

• Dry-run protection

• Automatic start/stop

• Built-in check valve

• Pressure and flow sensing

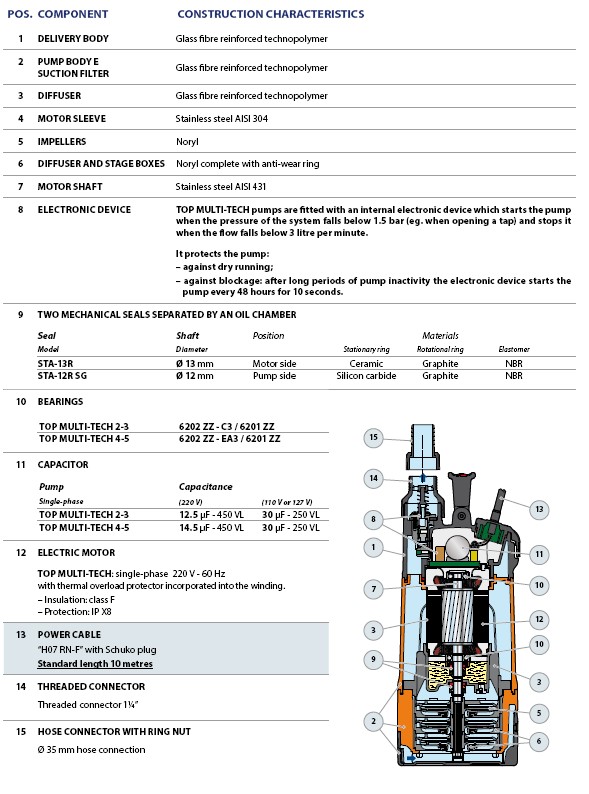

Materials:

• Impellers & diffusers: Technopolymer

• Pump body: Stainless steel AISI 304

• Motor casing: Stainless steel

• Shaft: Stainless steel with ceramic seal rings

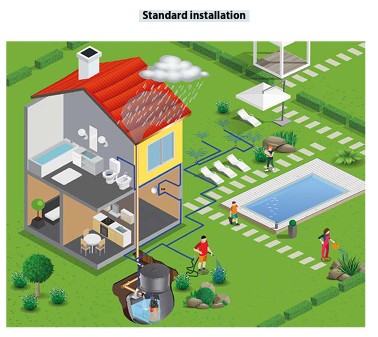

Recommended Uses:

• Domestic water supply

• Garden irrigation

• Pressure boosting from tanks or cisterns



  🛠️ Standard Inclusions


  • Automatic multi-stage submersible pump

  • Integrated electronic pressure controller

  • 10-meter power cable

  • Dry-run protection system

  • Built-in check valve

    🌿 Applications Suitable for:

    • Domestic water supply from tanks or wells

    • Rainwater harvesting systems

    • Garden irrigation

    • Pressure boosting in residential settings



      📄 Certifications & Compliance

      • CE certified

      • Manufactured in ISO 9001 certified facilities

      • Compliant with EN 60335-1 and EN 60034-1 standards



        🚚 Shipping & Handling

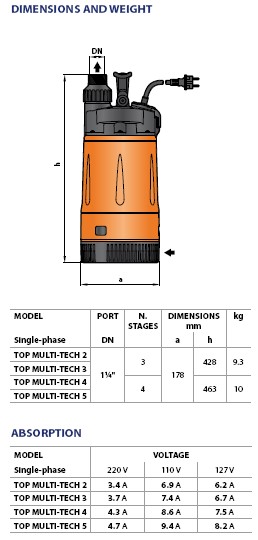

        • Shipping Dimensions: 178 mm × 463 mm

        • Shipping Weight: Approximately 10.5 kg

        • Packaging: Securely boxed with protective materials

        • Delivery: Standard ground shipping
