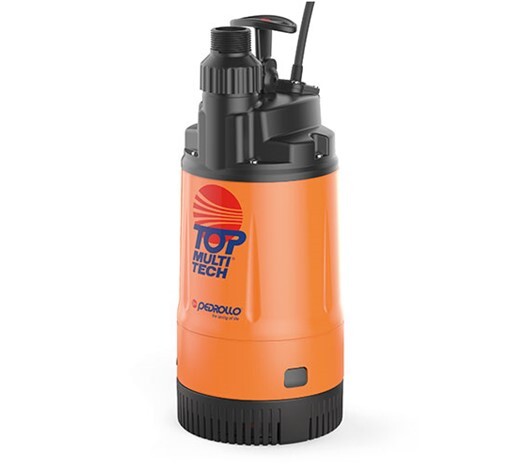

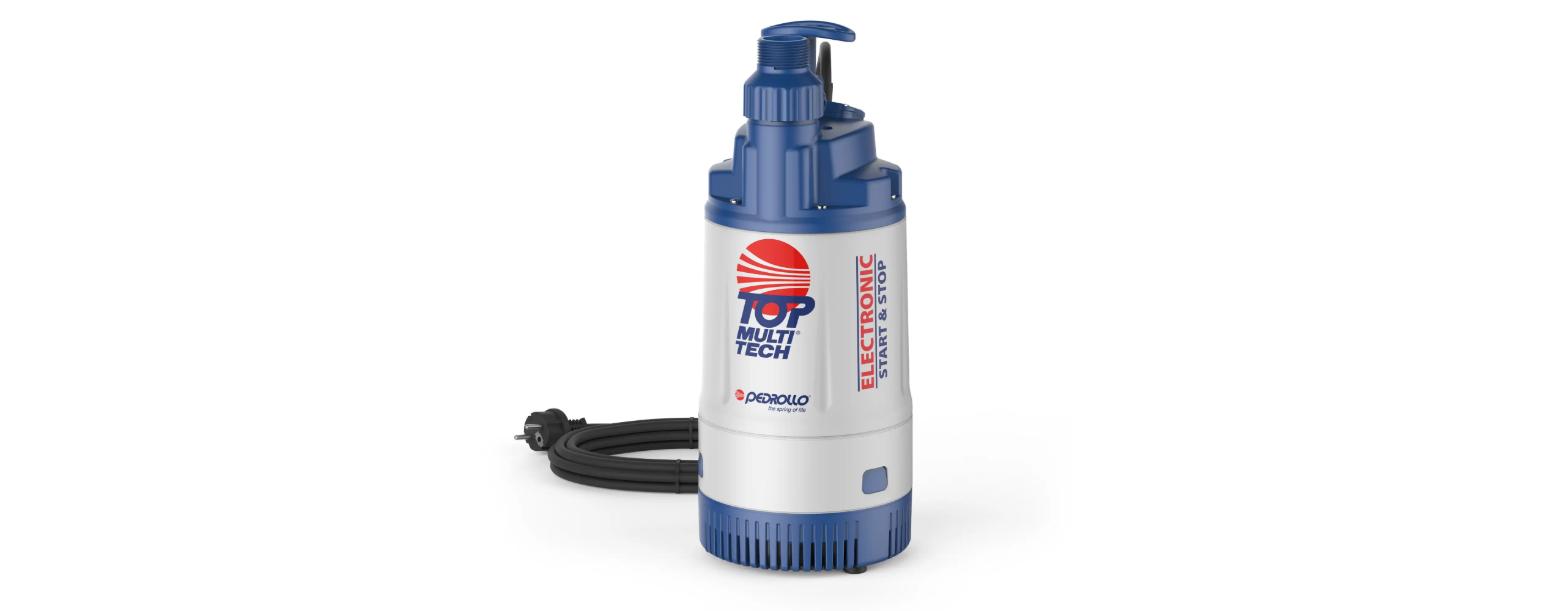

TOP Multi-Tech 5 110V Automatic Cistern Pump With Pressure Tank & Tee
The TOP Multi-Tech 5 is an automatic, multi-stage submersible pump built for cisterns, rainwater harvesting, and domestic water pressure boosting. It includes an integrated pressure tank and tee for quick setup and dependable operation.
TOP MULTI-TECH pumps are recommended for pumping clean water and liquids that are not chemically aggressive for the materials from which the pump is made. Because of their high efficiency and reliability they are suitable for use in applications such as domestic water supply from reservoirs, tanks or relatively deep wells, for drawing rain water from cisterns to water gardens or for use in irrigation systems, etc. An internal electronic device starts or stops the pump automatically when the tap is opened or closed.

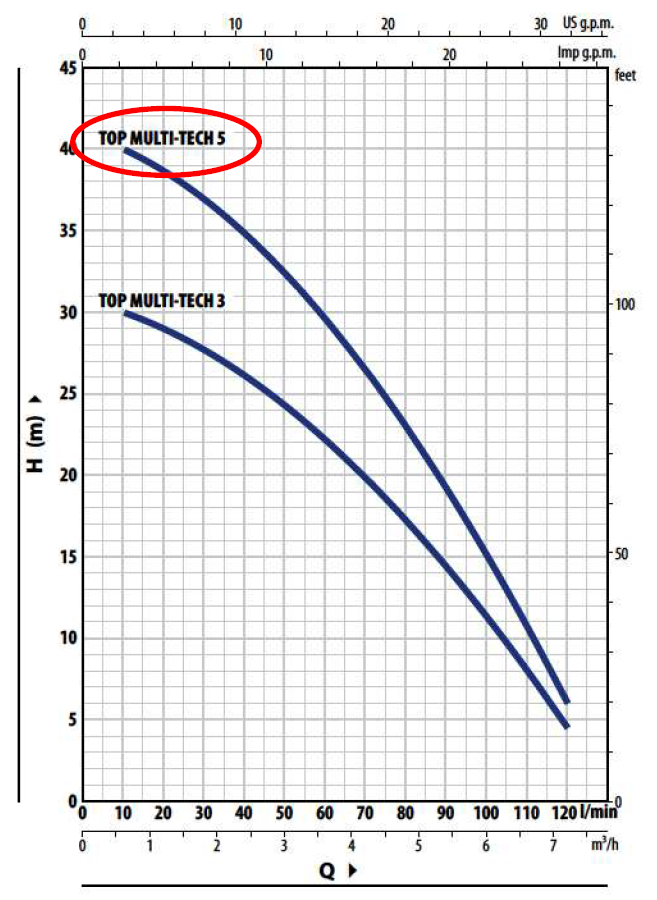

Performance Range:- Flow rate up to 120.00 l/min (7.2 m³/h)
- Head up to 42.00 m
Application Limit:- Temperature of the liquid to +40 °C
- 5 m maximum immersion depth
- Maximum height between pump and point of use 10 m
- Suction down to 34 mm above ground level
- Continuous service S1
Product Details
🔍 Key Specifications
Part Number: TOP Multi 5 110V
Power Supply: 110V, Single-phase
Motor Power: 0.75 kW (1 HP)
Maximum Flow Rate: 120 l/min (7.2 m³/h)
Maximum Head: 41 meters
Restart Pressure: 1.5 bar
Maximum Immersion Depth: 5 meters
Max Liquid Temperature: +40°C
Outlet Size: 1¼" threaded connector

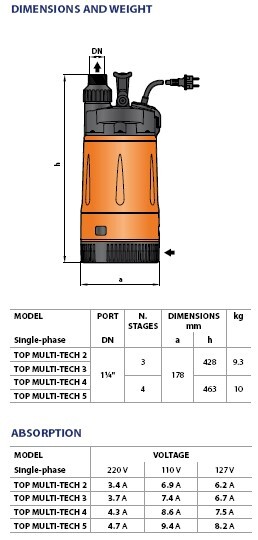

Dimensions: 16" L × 10" W × 10" H
Weight: 22 lbs (10 kg)
🛠️ Standard Inclusions
Automatic multi-stage submersible pump
Integrated 1-liter pressure tank
Pre-installed three-way tee fitting
10-meter power cable
Dry-run protection system
Built-in electronic pressure controller
🌿 Applications Suitable for:
Supplying pressurized water from cisterns or tanks

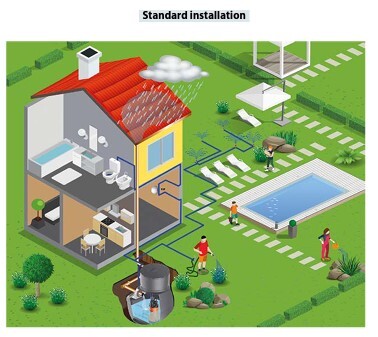

Rainwater harvesting systems
Domestic water boosting
Garden irrigation systems
📄 Certifications & Compliance
CE certified
Built to ISO 9001 manufacturing standards
Compliant with safety standards for water pumps
🚚 Shipping & Handling
Shipping Dimensions: 16" L × 10" W × 10" H
Shipping Weight: 22 lbs (10 kg)
Packaging: Complete kit (pump, pressure tank, tee)
Delivery: Standard ground shipping
