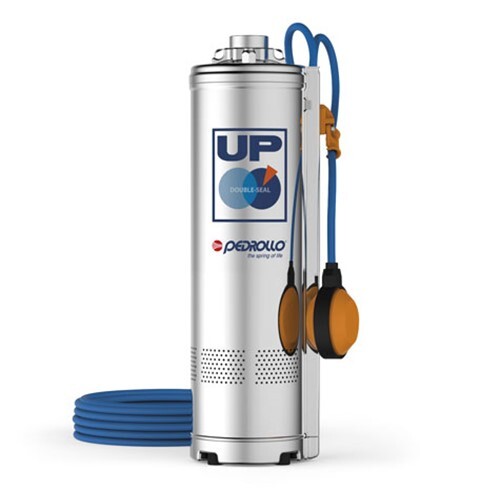

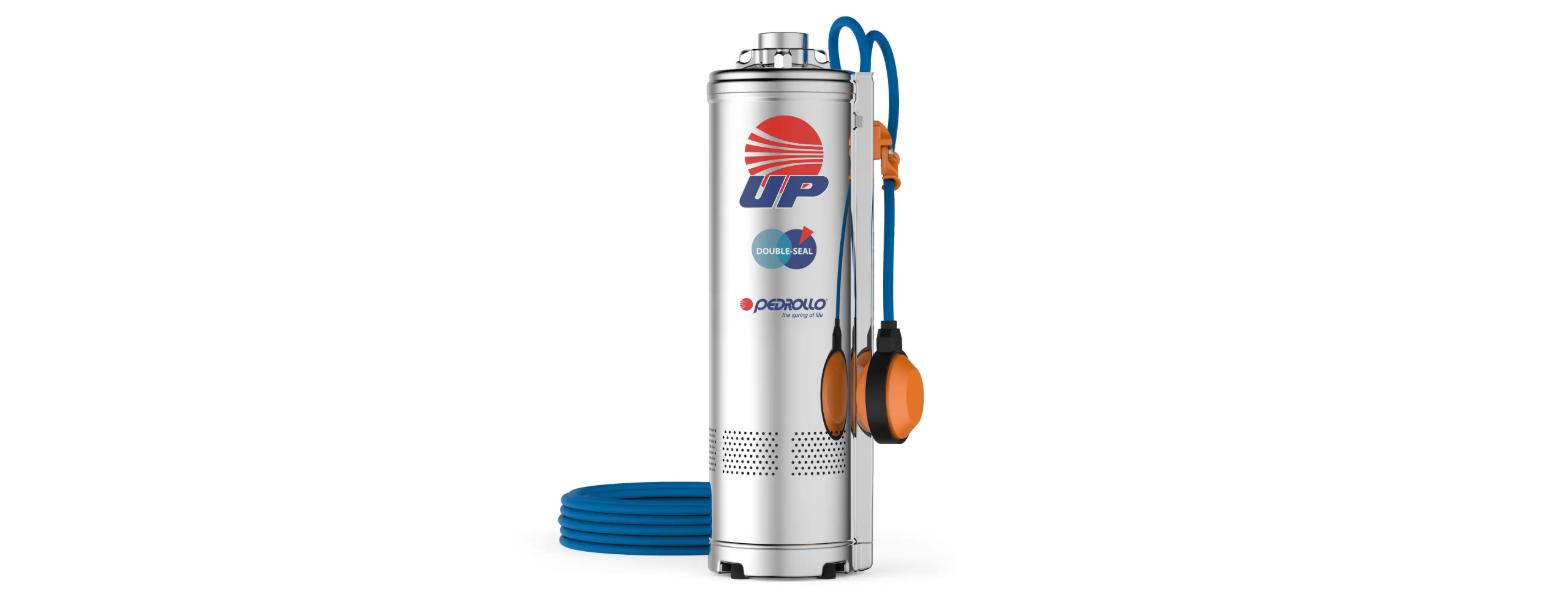

Pedrollo UP 4/4 480V 3 Phase 2HP Submersible Pump STD
🔍 Product Overview
This 3-phase, 480V, 2HP submersible pump is built for robust performance in water systems requiring high reliability and vertical installation. Ideal for use in commercial booster systems, rainwater harvesting setups, and fire protection solutions. Includes durable stainless steel housing and advanced internal components for consistent operation and longevity.
REQUIRES CHECK VALVE

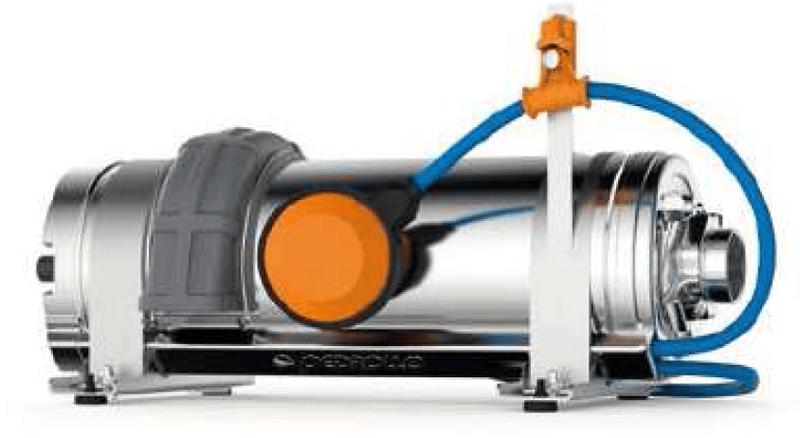

Vertical or Horizontal Cistern Pump
1¼" FPT Connection
3.1 Amps

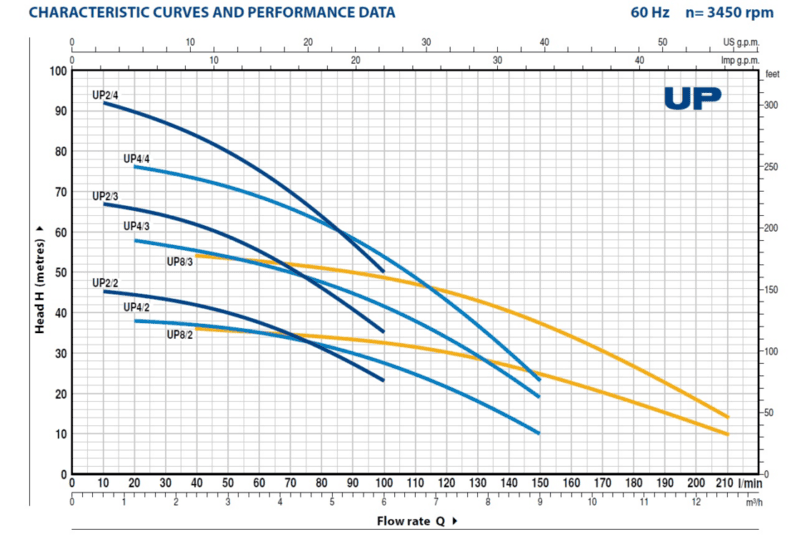

28 GPM @ 160' TDH 116 PSID @ Shutoff
Operates to 3" minimum submergence.
36 lb. dry weight.
Product Details
🛠️ Key Specifications
Voltage: 480V
Horsepower: 2 HP
Phase: 3
Pump Type: Vertical Submersible
Build: Stainless steel casing with integrated float and thermal protection
Applications: Rainwater harvesting, irrigation, water transfer, and pressure boosting
🚚 Shipping & Handling
Shipping Weight: 36 lbs
Shipping Dimensions: 42" L × 8" W × 8" H
Ships From: Doraville, GA Warehouse
Handling Time: 2–4 Business Days
Freight Class: Ships via UPS/FedEx Ground or LTL Freight depending on quantity ordered
