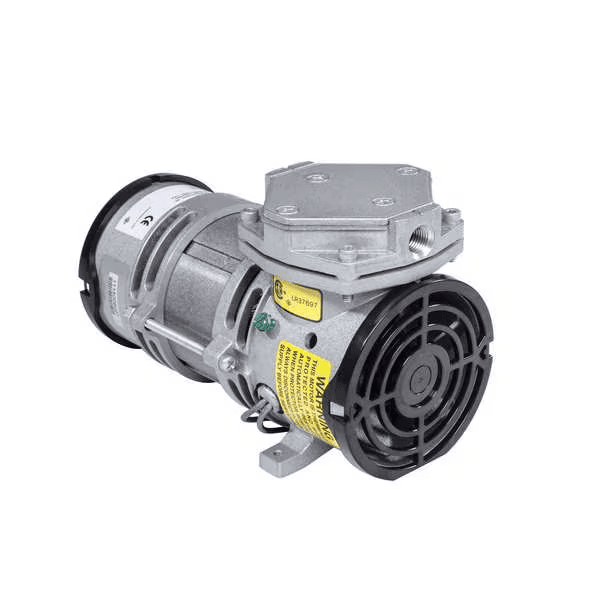

Gast MOA-P101-AA Oil-Less Diaphragm Pump | 1/16 HP 115V
Dimensions
Details
Product Details
The Gast MOA-P101-AA is a quiet, oil-free diaphragm pump engineered for reliable continuous-duty performance. Because incoming air never passes the motor, it delivers clean, cool air even at maximum duty—no oil contamination and minimal heat pickup. The 1/16 HP shaded-pole motor runs on 115V AC and produces up to 0.52 CFM of flow, 50 PSI of pressure, and 24 in Hg of vacuum. A rugged aluminum housing, corrosion-resistant internals, and oversized bearings extend service life, while operation stays quiet at 70 dBA. Routine maintenance is simple: the diaphragm, valves, and air filter are field-replaceable using the Gast K309 service kit. Well suited for medical, dental, laboratory, and OEM applications requiring dependable oil-free air.
Key Specifications
- Type: Diaphragm compressor / vacuum pump (oil-less)
- Output Power: 1/16 HP
- Voltage: 115V AC, 60 Hz
- Max Flow Rate: 0.52 CFM
- Max Continuous Pressure: 50 PSI
- Max Intermittent Pressure: 50 PSI
- Max Vacuum: 24 in Hg
- Inlet: 1/4 in NPT, Female
- Outlet: 1/4 in NPT, Female
- Housing Material: Aluminum
- Noise Level: 70 dBA
- Standards: CE, CSA, cUR
- Service Kit: K309
Shipping Dimensions & Weight
- Product weight: ~6.85 lb
- Assembled dimensions: 4.27 in (W) × 4.72 in (H); depth ~5–6 in
