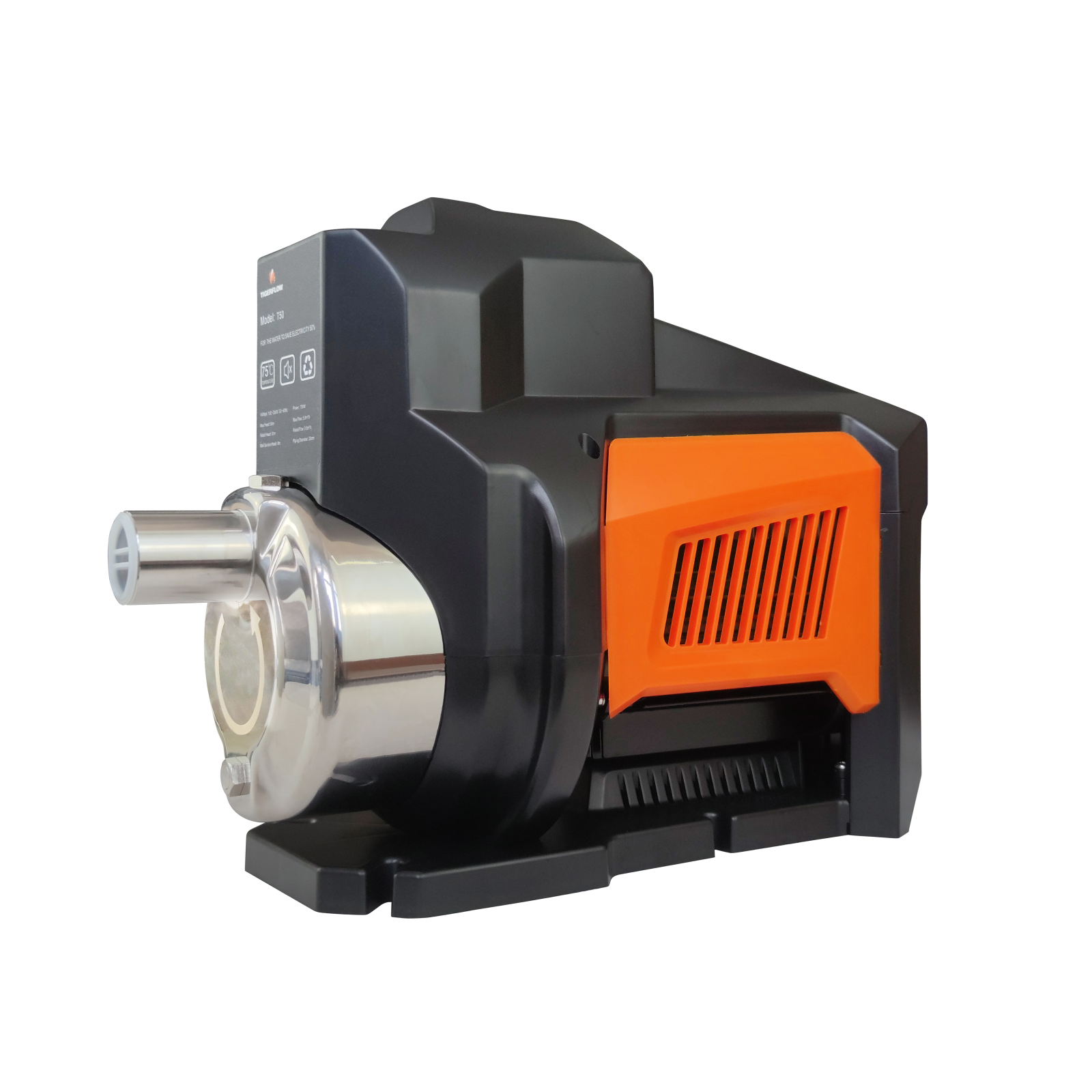

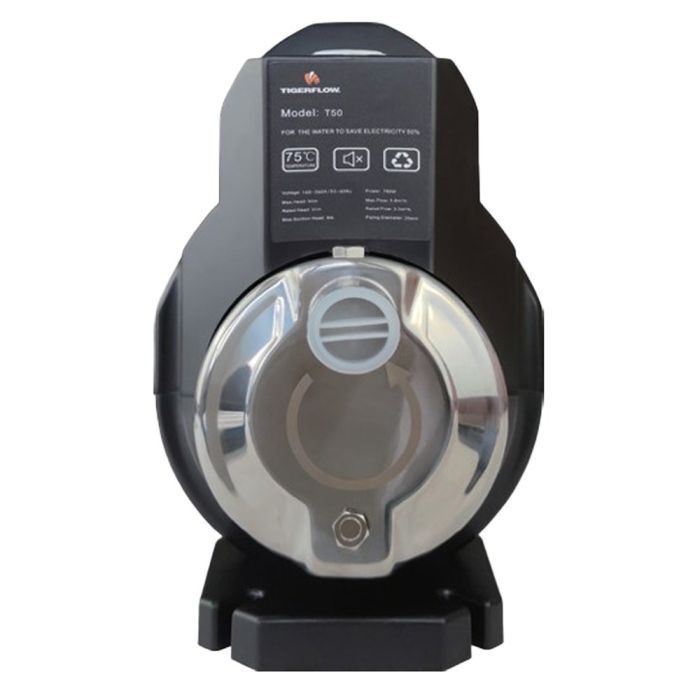

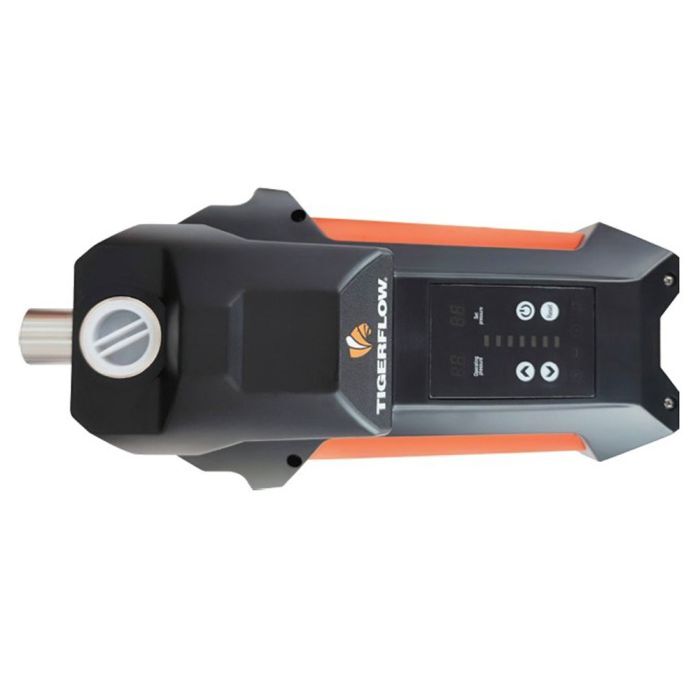

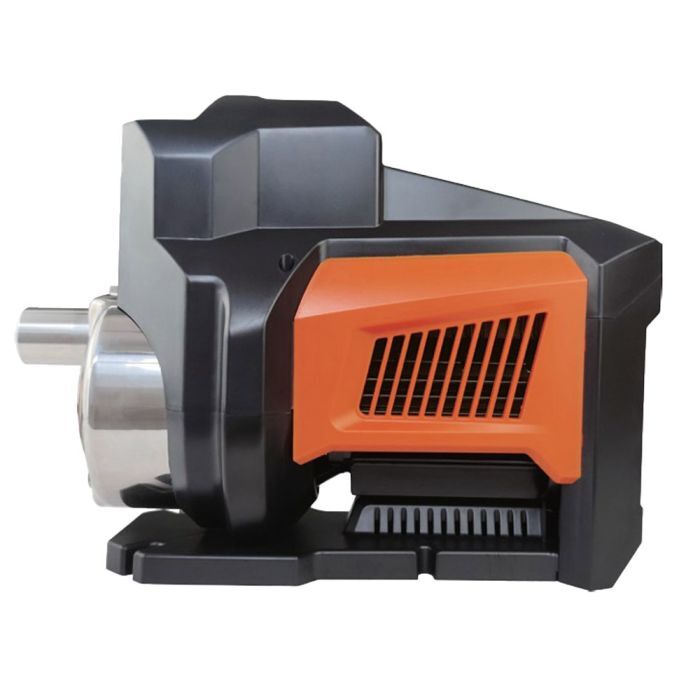

TigerFlow Ocelot 25 Simplex Booster Pump 1HP 120V (3300005758)

Key Specifications

• Model: Ocelot

• Power Supply: 120V AC, Single-phase

• Motor: Permanent magnet motor with integrated VFD

• Max Boost Pressure: 50 PSI at 10 GPM

• Self-Priming Capability: Up to 5 ft

• Pump Body: AISI 304 stainless steel

• Built-in Expansion Tank: Yes

• Connection: 120 VAC 3-prong cable & 1” Pump Connection

• Operating Conditions:

  • Liquid Temperature: 0°F to 104°F

  • Ambient Temperature: Up to 167°F

  • Maximum Altitude: 3,300 ft

  • Maximum Working Pressure: 115 PSI

• Weight: Approximately 18 lbs

Standard Inclusions

• Integrated VFD controller

• Built-in expansion tank

• Stainless steel pump body

• 120V power cable

• User manual

Applications Suitable for:

• Residential water pressure boosting

• Light commercial water systems

• Irrigation systems

• Rainwater harvesting setups

• Recreational vehicles and boats

Certifications & Compliance

• CE certified

• RoHS compliant

Shipping & Handling Notes

• Shipping Dimensions: 16" L × 10" W × 12" H

• Shipping Weight: Approximately 20 lbs

• Packaging: Individually boxed with protective padding

• Delivery: Ships via standard ground service
