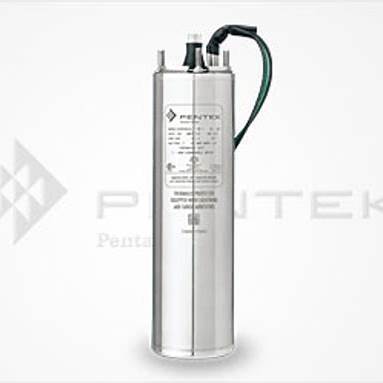

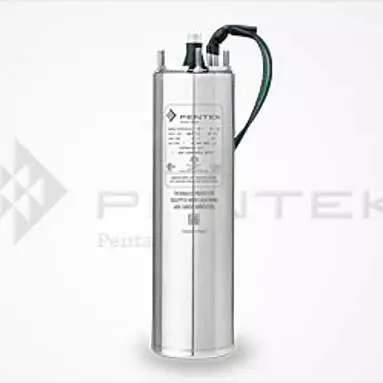

Sta-Rite P43B0030A3-C 3 HP 4" Submersible Motor – Pentek XE Series, 230V, 3-Phase
The Sta-Rite P43B0030A3-C is a 3 HP, 230V, 3-phase, 4-inch submersible motor from the Pentek XE Series, designed for residential, commercial, and agricultural water systems. Constructed with 304L stainless steel and featuring a Kingsbury-type thrust bearing, this motor ensures durability and reliable performance in demanding environments.
Product Details
📐 Key Specifications
Model Number: P43B0030A3-C
Horsepower: 3 HP
Voltage: 230V
Phase: 3-phase
Frequency: 60 Hz
Service Factor: 1.15
Full Load Amps: 9.2 A
Max Load (SF Load Amps): 10.1 A
Locked Rotor Amps: 58.9 A
Thrust Load Capacity: 900 lbs
Motor Length: 15.3 inches
Weight: 32 lbs
Construction Material: 304L Stainless Steel
Insulation Class: Class F
Protection Features:
Encapsulated epoxy stator design
Surge arrestor for protection against voltage surges
Kingsbury-type thrust bearing for high thrust loads
Applications: Suitable for residential, commercial, and agricultural clean water systems
🚚 Shipping & Handling
Packaging: Individually boxed
Shipping Weight: Approximately 32 lbs
Shipping Dimensions: Approximately 16" x 6" x 6"
Shipping Options: Standard ground shipping; expedited options available upon request
Availability: Typically ships within 1-2 business days
