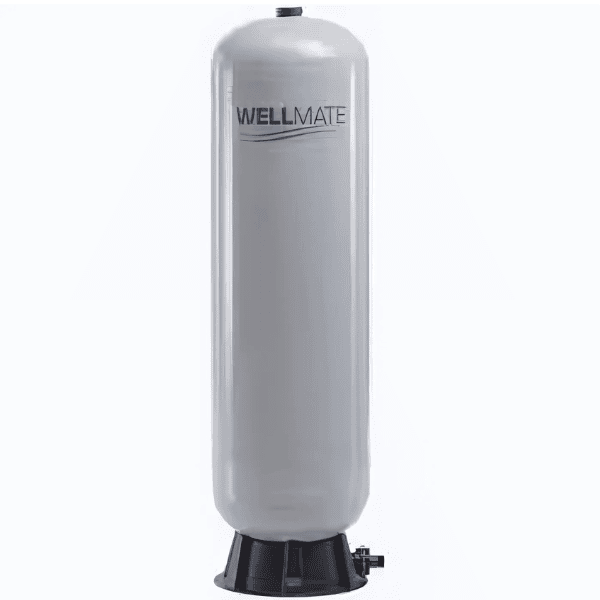

WellMate WM-25WB QC 86.7-Gallon Pressure Tank
The WellMate WM-25WB QC is an 86.7-gallon composite Fiberglass pressure tank built for residential, agricultural, and light commercial water systems. It features a rustproof fiberglass construction and Quick Connect (QC) bottom plumbing for simplified installation and maintenance. 24"D x 56"H, 125 psig max, 1¼" MPT connection, suitable for potable water. Replaceable bladder, 5 year warranty. Stocked in Doraville Warehouse
$1,394.00
Choose Quantity :
Product Information
Product Details
🔍 Key Specifications:
- Model: WM-25WB QC
- Capacity: 86.7 gallons (328 liters)
- Maximum Operating Pressure: 125 psi (8.6 bar)
- Drawdown (at 30/50 psi setting): 26.8 gallons (101.5 liters)
- Diameter: 24 inches (610 mm)
- Height: 55.25 inches (1403 mm)
- Inlet/Outlet Connection: 1¼" male NPT Quick Connect (bottom entry)
- Material: Fiberglass composite shell with seamless polyethylene liner
- Air Cell: Replaceable heavy-duty butyl diaphragm
- Weight: Approximately 77.2 lbs (35.0 kg)
- Certifications: NSF/ANSI 61 & FDA compliant materials
🛠️ Standard Inclusions:
- Fiberglass pressure tank
- Replaceable air cell
- Quick Connect plumbing fitting
- Installation guide
🌿 Applications Suitable for:
- Residential well systems
- Agricultural irrigation
- Pressure boosting systems
- Rainwater harvesting setups
📄 Certifications & Compliance:
- NSF/ANSI Standard 61 certified
- Manufactured in ISO 9001 certified facilities
🚚 Shipping & Handling:
- Shipping Dimensions: 24" W × 24" D × 55.25" H
- Shipping Weight: Approximately 80 lbs (36.3 kg)
- Packaging: Securely boxed with protective materials
- Delivery: Standard ground shipping
