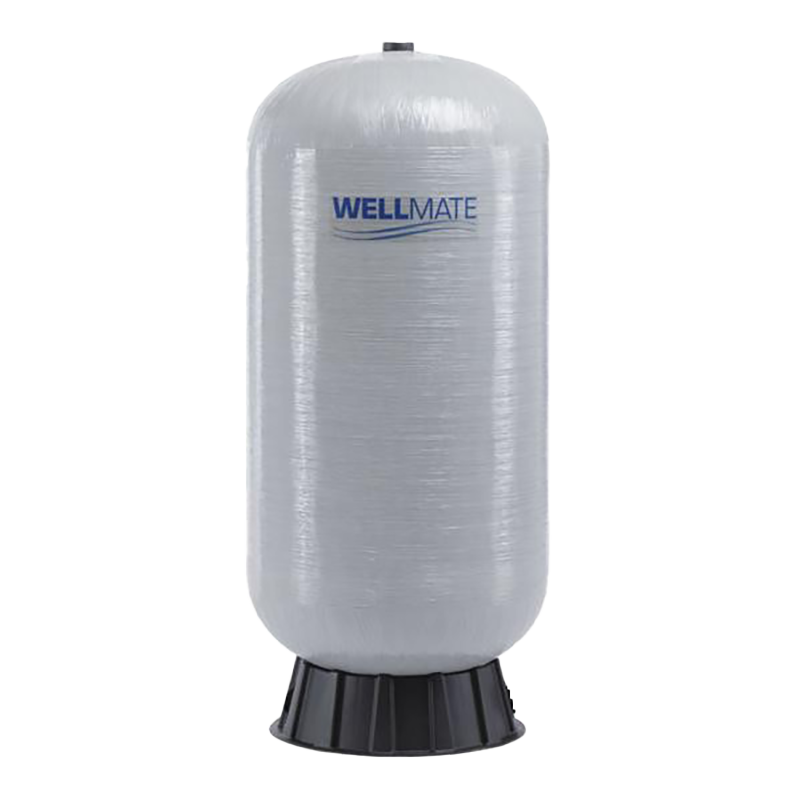

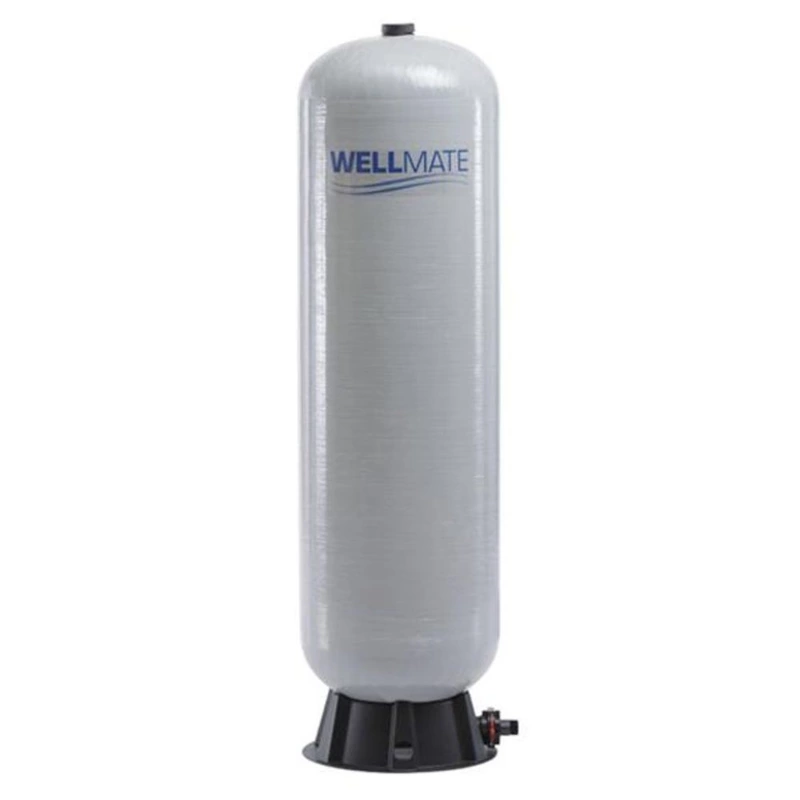

WellMate WM-35WB CLASSIC (CH31062) 119-Gallon Composite Pressure Tank

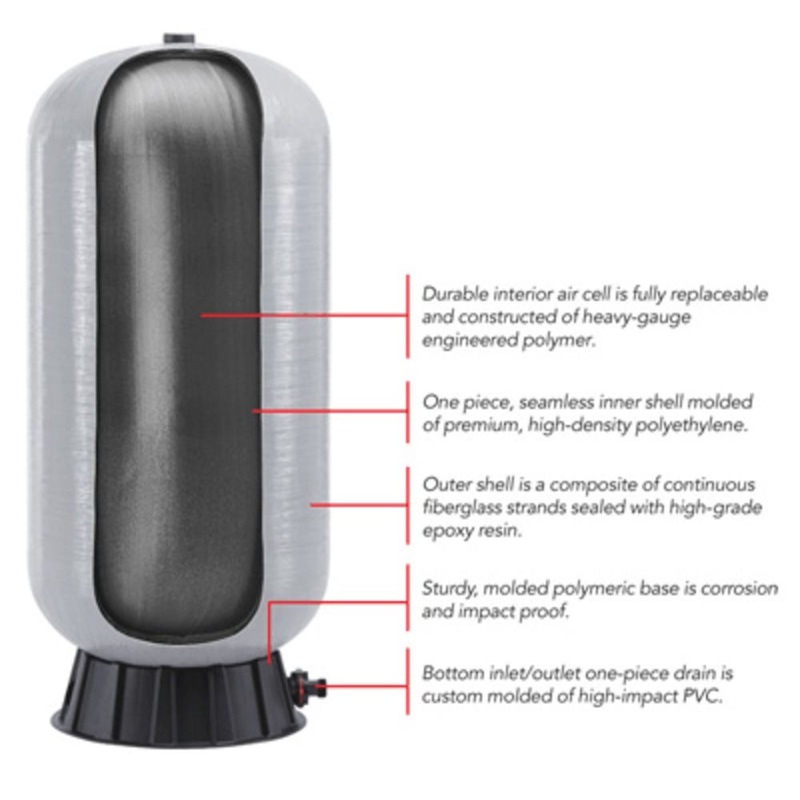

The WellMate WM-35WB is a corrosion-proof well pressure tank that is made with a composite of continuous fiberglass strands sealed with high-grade epoxy resin. They won't rust, dent, or come apart at the seams, and a rugged impact proof base is included. The WellMate WM-35WB comes with a 5 year warranty with a one year replacement labor allowance.
Features:
- Corrosion-proof composite construction
- Won’t rust in corrosive environments, particularly important in coastal regions
- Little or no maintenance
- Longer life, greater flexibility
- Light weight
- Replaceable air cell
Product Details
Product Details:
Model: WM-35WB C (CH31062)
Capacity: 119 gallons (450.5 liters)
Drawdown (at 30/50 psi setting): 37.5 gallons (141.9 liters)
Maximum Operating Pressure: 125 psi (8.6 bar)
Diameter: 30 inches (762 mm)
Height: 60.5 inches (1537 mm)

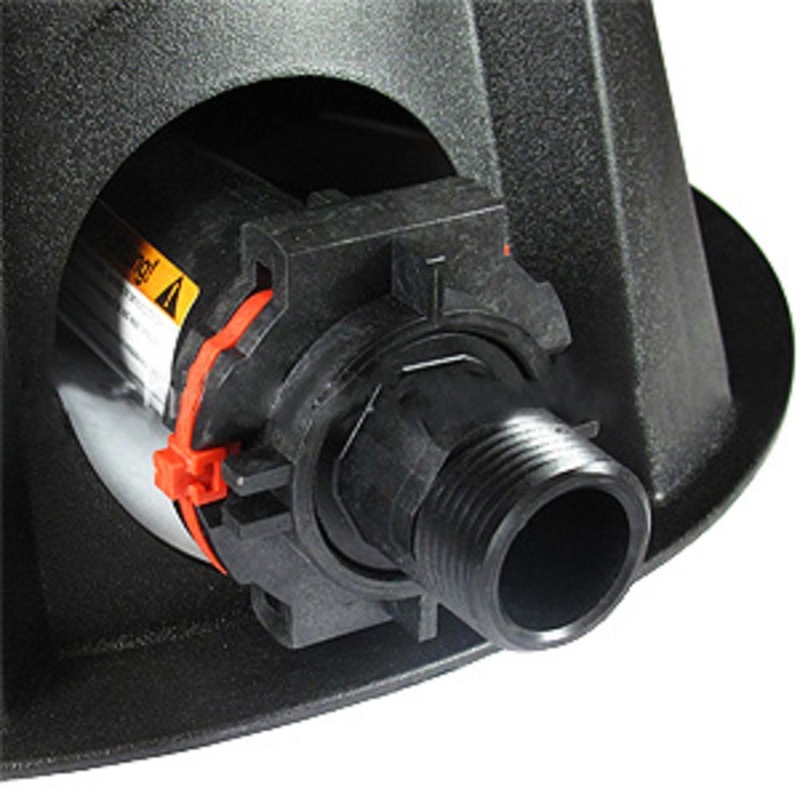

Connection Type: 1½" Quick Connect (bottom connection)
Tank Material: Non-corrosive fiberglass composite shell with poly inner liner
Air Cell: Field-replaceable butyl diaphragm
Certifications: NSF Standard 61, FDA-compliant materials
Weight: Approx. 117 lbs (53.1 kg)
Key Features:
Corrosion-proof construction ideal for aggressive water conditions
Lightweight and easier to handle than steel tanks of similar size
Quick Connect fitting for fast, tool-free installation
Maintenance-free composite shell—no painting or rust
High drawdown improves system efficiency and reduces pump cycling
Field-replaceable air cell extends service life
Applications:
Large residential water systems
Commercial water pressure boosting
Agricultural and irrigation setups
Rainwater harvesting and well systems
Shipping Information:
Dimensions: 30" x 30" x 60.5"
Shipping Weight: Approx. 120 lbs boxed
