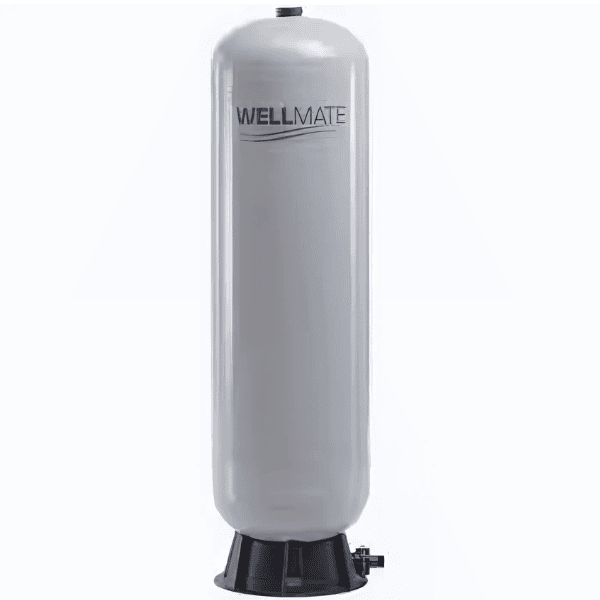

Wellmate WM-12 QC 40 Gallon - Fiberglass Tank Quick Connect
40.3-gallon WellMate Composite Pressure Tank with a Quick Connect bottom connection, replaceable air cell, and corrosion-resistant fiberglass construction. Designed for residential and light commercial well-water pressure systems.
Key Specifications:
- Brand/Model: WellMate WM-12 / WM0150
- Capacity: 40.3 gallons (153 liters)
- Drawdown: approx. 12.1 gallons (45.8 L) at 30/50 psi switch setting
- Material: Fiberglass composite (HDPE liner, fiberglass filament wound outer shell, epoxy resin sealed)
- Connection: 1" male NPT with Quick Connect bottom fitting
- Tank Dimensions: 16" diameter x 57" overall height
- Maximum Operating Pressure: 125 psi (8.6 bar)
- Maximum Temperature: 120°F
- Assembly Weight: approx. 29 lb
- Warranty: 5 years
Product Details
WellMate WM-12 40.3 Gallon Composite Pressure Tank with Quick Connect
The WellMate WM-12 is a 40.3-gallon composite pressure tank designed to provide reliable water pressure and storage for well-water systems. Its fiberglass composite construction resists corrosion and will not rust like a conventional steel pressure tank.
The tank features a replaceable air cell and a Quick Connect system with a 1-inch male NPT connection for easier installation and servicing. With a maximum operating pressure of 125 PSI and 12.5 gallons of drawdown at a 30/50 PSI setting, the WM-12 is a dependable choice for residential and light commercial water systems.
Key Features
40.3-gallon total capacity
153-liter capacity
Fiberglass composite construction
Corrosion-resistant, non-rusting design
Replaceable air cell
Quick Connect system
1-inch male NPT connection
125 PSI maximum operating pressure
12.5-gallon drawdown at 30/50 PSI
Suitable for residential and light commercial well-water systems
| Specification | Details |
|---|---|
| Brand | WellMate |
| Model | WM-12 / WM0150 QC |
| Product Type | Composite well pressure tank |
| Capacity | 40.3 gallons / 153 liters |
| Maximum Operating Pressure | 125 PSI / 8.6 bar |
| Drawdown at 30/50 PSI | 12.5 gallons / 47.3 liters |
| Diameter | 16 inches / 41 cm |
| Overall Height | 57 inches / 145 cm |
| Connection | 1-inch male NPT Quick Connect |
| Inlet/Outlet Height from Floor | 1.75 inches / 4.4 cm |
| Material | Fiberglass composite |
| Air Cell | Replaceable |
| Assembly Weight | 35.05 lb / 15.9 kg |
| Warranty | 5-year limited warranty |
