WellMate WM-25WB C 87-Gallon Composite Pressure Tank | Corrosion-Proof & Lightweight

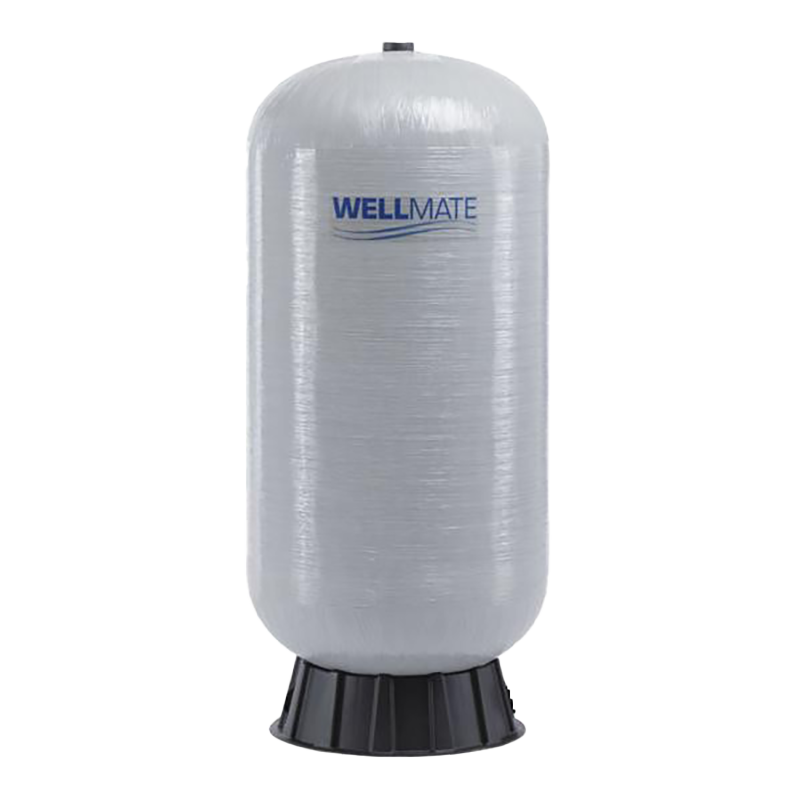

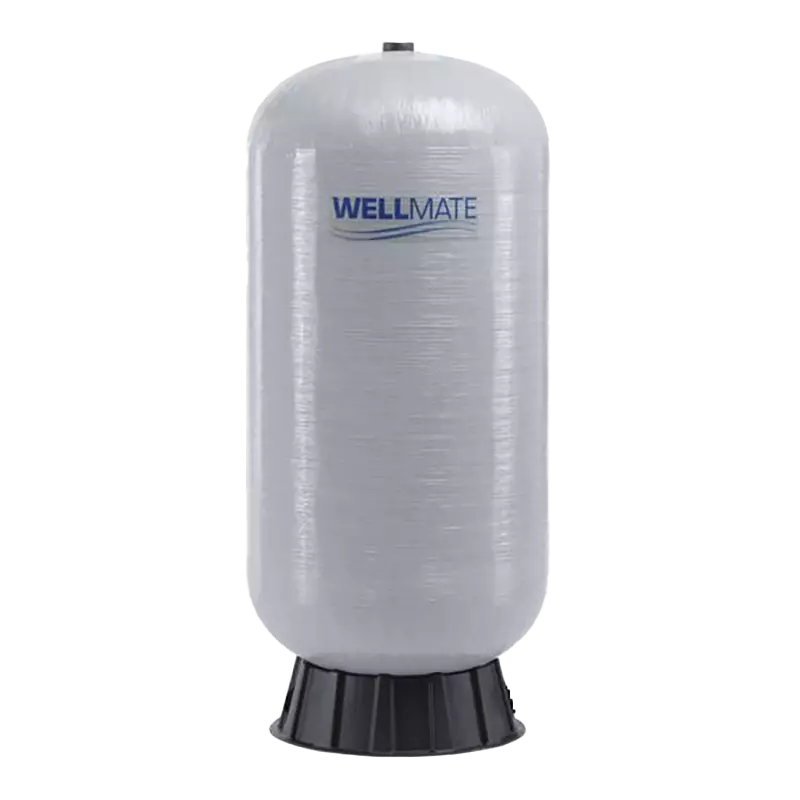

The WellMate WM-25WB is an 86.7-gallon (328-liter) composite pressure tank designed for residential, agricultural, and light commercial water systems. Its corrosion-proof construction and lightweight design offer significant advantages over traditional steel tanks.
$1,099.00
Choose Quantity :
Product Information
Product Details
🔍 Key Specifications:
- Model: WM-25WB C
- Capacity: 87 gallons (329 liters)
- Maximum Operating Pressure: 125 psi (8.6 bar)
- Drawdown (at 30/50 psi setting): 26.4 gallons (99.9 liters)
- Diameter: 24 inches (61 cm)
- Overall Height: 62.2 inches (158 cm)
- Inlet/Outlet Connection: 1¼" male NPT
- Weight: Approximately 70 lbs (31.75 kg)
- Material: Fiberglass with epoxy-resin sealed outer shell
🛠️ Standard Inclusions:
- Fiberglass pressure tank
- Replaceable air cell
- Installation guide
🌿 Applications Suitable for:
- Residential water systems
- Light commercial installations
- Pressure boosting applications
📄 Certifications & Compliance:
- NSF/ANSI Standard 61 certified
- Manufactured in ISO 9001 certified facilities
🚚 Shipping & Handling:
- Shipping Dimensions: 24" x 24" x 62.2"
- Shipping Weight: Approximately 70 lbs (31.75 kg)
- Packaging: Securely boxed with protective materials
- Delivery: Standard ground shipping
