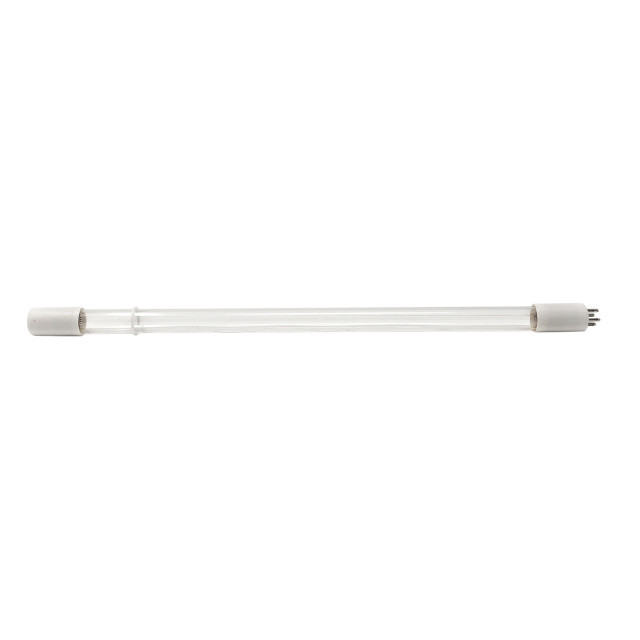

UV.ATS.RES.20.LAMP – 39W UV Lamp for ATS GDS-20 System
The UV.ATS.RES.20.LAMP is a 39-watt germicidal ultraviolet (UV) replacement lamp designed for the Aqua Treatment Service (ATS) GDS-20 water disinfection system. It effectively eliminates up to 99.9% of harmful microorganisms, ensuring safe and clean water without the use of chemicals.
$68.70
Choose Quantity :
Product Information
Product Details
🔍 Key Specifications:
- Model: UV.ATS.RES.20.LAMP
- Compatibility: Aqua Treatment Service GDS-20 system
- Wattage: 39 Watts
- Base Type: 4-pin (single end)
- Lamp Shape: T5
- Total Length: 31.89 inches (810 mm)
- Arc Length: 28.74 inches (730 mm)
- Diameter: 15 mm
- Operating Current: 425 mA
- UVC Output: 13.8 Watts
- UV Intensity @ 1m: 130 µW/cm²
- Peak Output: 253.7 nm
- Glass Type: Non-ozone producing
- Lifespan: Up to 10,000 hours
🛠️ Standard Inclusions:
- UV.ATS.RES.20.LAMP replacement lamp
- Installation guide
🌿 Applications Suitable for:
- Aqua Treatment Service GDS-20 UV disinfection systems
- Residential and commercial water purification
- Well water treatment
- Rainwater harvesting systems
📄 Certifications & Compliance:
- Complies with industry standards for UV germicidal lamps
- Manufactured by reputable suppliers ensuring quality and reliability
🚚 Shipping & Handling:
- Shipping Dimensions: 33" L × 2" W × 2" H
- Shipping Weight: Approximately 0.5 lbs (0.23 kg)
- Packaging: Securely boxed with protective materials
- Delivery: Standard ground shipping
