Snyder Industries 5000 Gallon Green Vertical Water Tank - PN 32384
Snyder Industries 5100 Gallon Plastic Vertical Water Storage Tank Heavy-duty green HDPE tank for long-term above-ground water storage
Product Overview
The Snyder Industries 5100 Gallon Vertical Water Storage Tank is constructed from durable, FDA-approved, food-grade HDPE using a rotational molding process that delivers a seamless, leak-proof design. The green UV-stabilized exterior reduces sunlight exposure to inhibit algae growth. Designed for residential, agricultural, and commercial water storage applications including fire suppression and rainwater harvesting.
📱 Contact us for a freight quote and lead time
Product Details

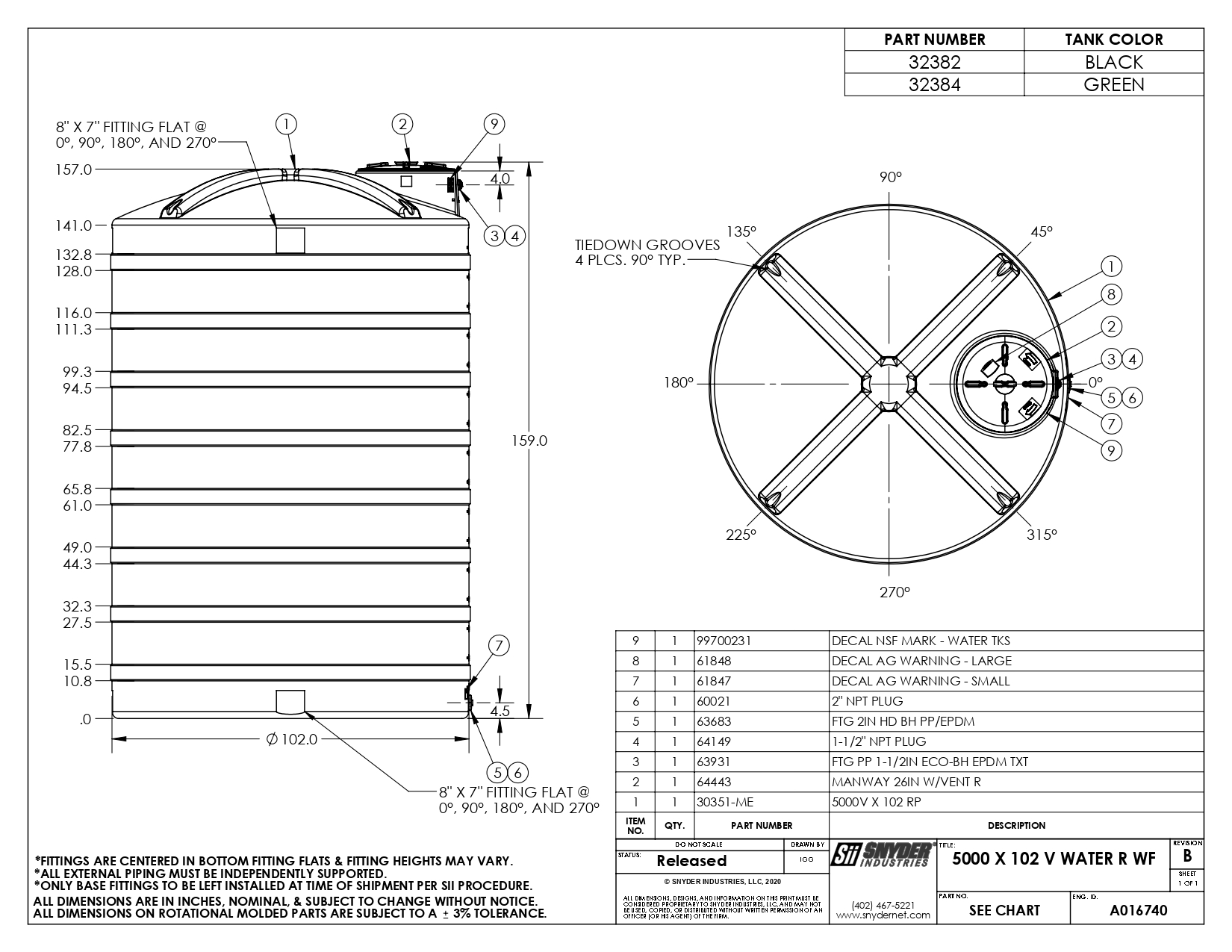

Key Specifications
Capacity: 5100 gallons
Diameter: 102″
Height: 159″
Weight: 876 lbs
Material: High-Density Polyethylene (HDPE)
Color: Green (UV-stabilized)
Specific Gravity Rating: 1.0 (for potable water)
Max Temperature: 120°F
Manway: 26" threaded vented lid
Inlet: 1.5" FNPT bulkhead fitting
Outlet: 2" FNPT bolted bulkhead fitting
Gallon Markings: Molded-in volume indicators
Certifications: FDA CFR 177.1520 & NSF/ANSI 61 compliant
Design: Vertical, one-piece, above-ground use only
Shipping & Handling
Shipping Dimensions: 102" Diameter × 159" Height
Shipping Weight: 876 lbs
Freight Class: 400
Truckload Quantity: 4 tanks per truckload
Liftgate: Not available (item exceeds liftgate size limits)
Ships From: Merced, CA & Albertville, AL
