Rain Harvesting Leafeater Advanced Round - RHAD100

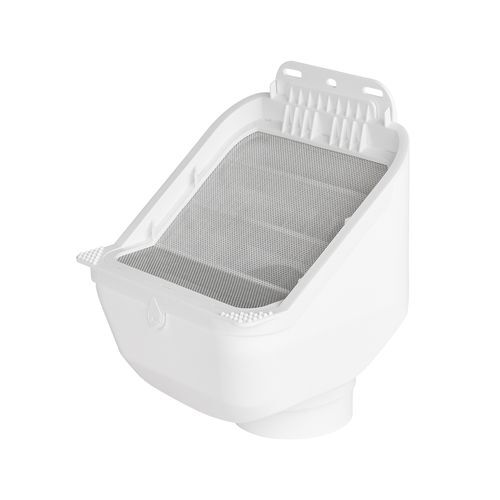

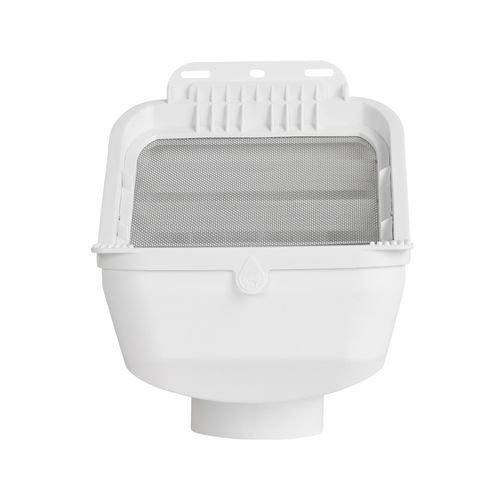

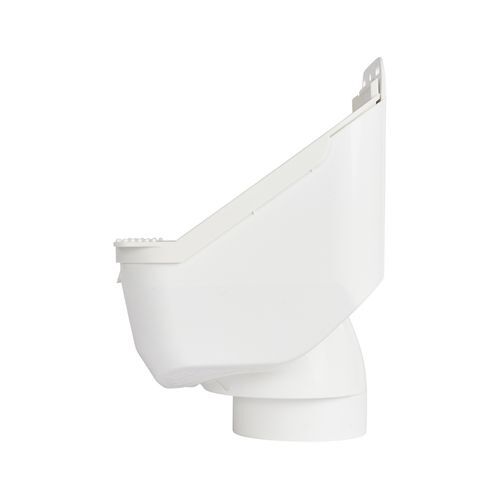

Rain Harvesting Leaf Eater Advanced Downspout Filter – Round Output
Part Number: RHAD100
Premium rain head with Clean Shield™ mesh and VH Pivot™ outlet for vertical or horizontal installations
───────────────────────────────────────────────────────────────────────────
Product Overview
The Rain Harvesting Leaf Eater Advanced is a high-performance downspout filter designed to keep leaves, insects, and debris out of your rainwater collection system. Featuring Clean Shield™ self-cleaning screen technology and a pivoting rear outlet, it offers versatile installation for both vertical and horizontal pipe configurations. Ideal for tight spaces and high-flow catchments, this unit improves water quality while reducing maintenance.
Choose Quantity :
Product Information
Product Details
Key Specifications
• Model: RHAD100
• Pipe Compatibility: Fits 3" & 4" round downpipes (Schedule 40 or SDR)
• Screen Aperture: 0.955mm (1/32") stainless steel mesh
• Material: UV-stabilized plastic body, stainless steel screen
• Dimensions:10" H × 8" W × 8" D
• Weight: 3 lbs

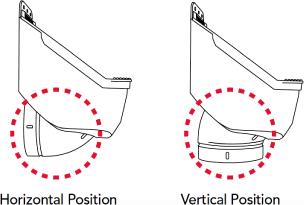

• Install Options: Vertical or horizontal (VH Pivot™ outlet)
• Color: Grey
───────────────────────────────────────────────────────────────────────
✅ Benefits
• Filters out leaves, debris, insects, and pests before water enters the tank
• Clean Shield™ screen deflects debris and minimizes maintenance
• Prevents mosquito breeding with fine stainless steel mesh
• VH Pivot™ allows versatile horizontal or vertical pipe configurations
• Ideal for high rainfall zones and under-eave installations
• Low maintenance, easy-to-remove screen with no tools required
───────────────────────────────────────────────────────────────────────
Installation Overview

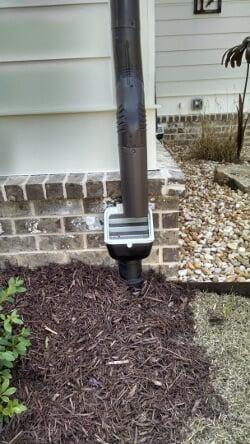

**Gutter Drop (Vertical):**
1. Cut and remove ~10.5" of existing downpipe below the gutter outlet.
2. Detach screen using quick-release tabs.
3. Slide rain head into position; secure with screws into the mounting plate.
4. Reinsert the screen; ensure it locks firmly in place.
**Rear Outlet (Horizontal):**
1. Detach screen; pivot outlet to the rear.
2. Mark pipe cuts for horizontal inlet/outlet connections.
3. Slide rear outlet into horizontal pipe; mount unit flat to wall.
4. Secure with screws; reinsert screen.
───────────────────────────────────────────────────────────────────────
Shipping & Handling
• Shipping Dimensions: 8" L × 8" W × 10" H
• Shipping Weight: 3 lbs
• Ships From: United States
• Shipping Method: Standard ground shipping
