Pioneer Water Tanks XLR04/02-ZN – 5,000 Gallons
The Pioneer XLR04/02-ZN Water Storage Tank Kit provides a complete 5,000-gallon solution ideal for residential, agricultural, or light commercial applications. Made from durable Zincalume® steel and equipped with an AQUALINER® Fresh antimicrobial liner, this full kit ensures long-lasting, hygienic water storage in a compact footprint.
STANDARD INCLUSIONS
AQUALINER® FRESH
The first antimicrobial tank liner in the world, our exclusive five-layer AQUALINER® Fresh keeps your water fresher for longer with embedded Sanitized® Silver technology. With a life expectancy of 65 years, the AQUALINER® Fresh is designed to fit the Pioneer Water Tank to prevent contamination.
GEOTEXTILE UNDERLAY
Our geotextile underlay is the ideal way to protect your AQUALINER® Fresh from being compromised by sharp objects that may be caught inside your water tank.
SUPER SEAL
Reduce the number of contaminants to protect your precious water supply with Pioneer Water Tanks’ high-density foam sealer.
SACRIFICIAL ANODES
Our sacrificial magnesium anodes significantly extend the life of your water tank by protecting the tank from corrosion. Made from magnesium, the anodes erode in place of the water tank, thereby protecting the steel and allowing the tank to last longer than other systems. Pioneer Water Tanks recommend your anodes be replaced every 10 years so you can enjoy the benefits of your tank for life.
6-INCH DIAMETER OVERFLOW
Pioneer Water Tanks provides a 6” diameter overflow downpipe, the largest overflow system on the market. The overflow size moves excess water away from the tank quickly to effectively reduce pressure on your tank and avoid costly damage to your tank components.
$6,133.60
Choose Quantity :
Product Information
Product Details

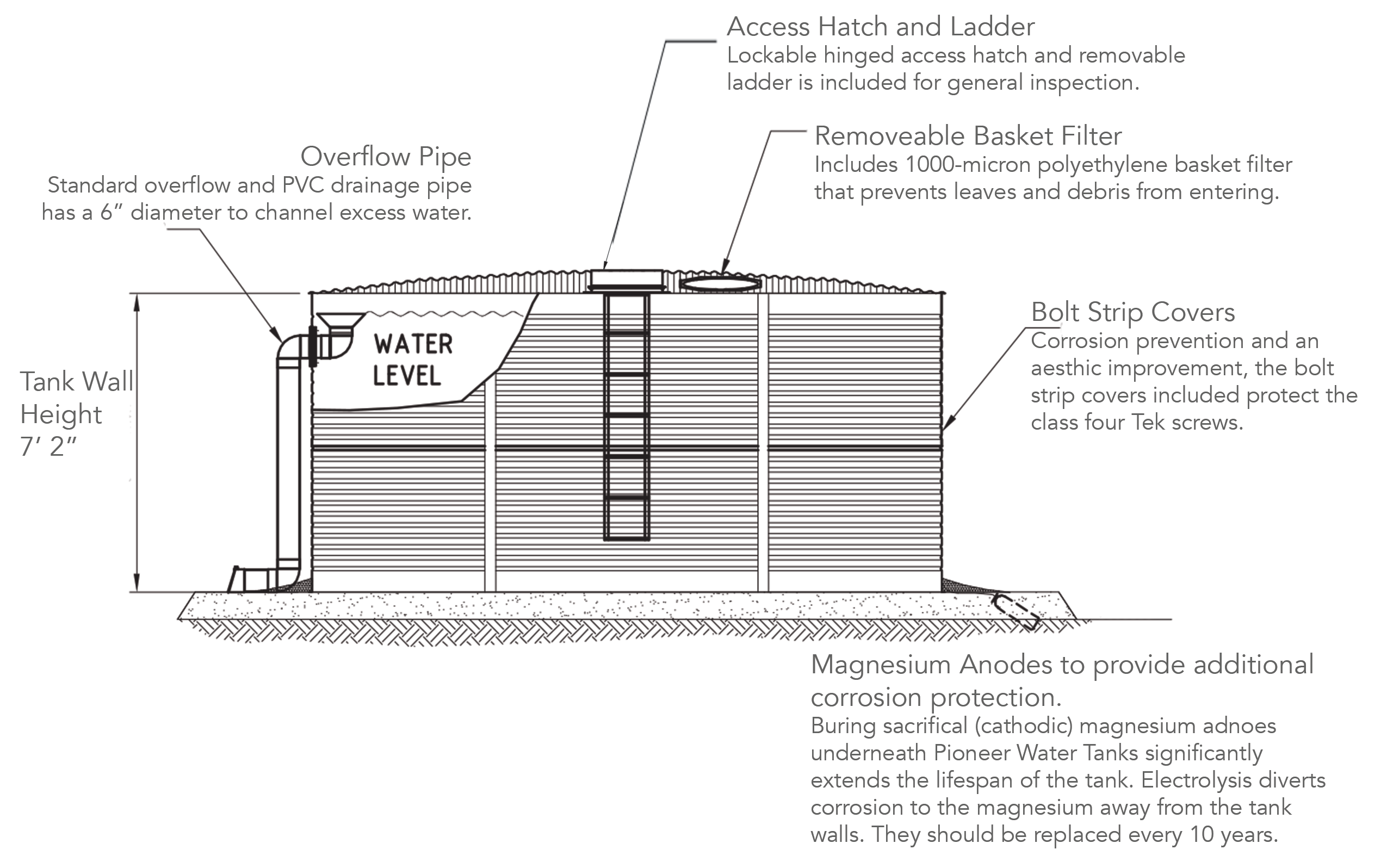

📄 Key Specifications
Model: XLR04/02-ZN
Capacity: 5,000 Gallons
Diameter: 11′ 0″
Height: 7′ 2″
Material: Zincalume® Steel
Liner: AQUALINER® Fresh with Geotex Underlay
Overflow: 6″ PVC overflow pipe
Outlet: 2″ poly bottom outlet with ball valve
Access: Lockable roof access hatch and removable ladder
Inlet: Roof-mounted basket filter
Extras: Sacrificial anodes and complete roof system included
🌿 Features
• Complete kit with all structural and liner components
• Antimicrobial liner inhibits bacteria and algae growth
• Clear roof inlet basket filter for debris control
• Easy assembly with corrosion-resistant Zincalume® panels
• Ideal for potable water, rainwater harvesting, or backup storage
🔧 Applications
• Residential rainwater harvesting systems
• Rural property water storage
• Livestock and small-scale irrigation supply
• Fire reserve water (non-permitted use)
🚚 Shipping & Handling
Ships via freight in labeled palletized components
Includes tank body, liner, roof, ladder, valves, and accessories
Shipping weight: ~1,600–1,800 lbs
Installation instructions included
