Pioneer Water Tanks XLR10/02 – 12,946 Gallons
The Pioneer 1702 Water Storage Tank offers a robust 12,946-gallon capacity, engineered with Zincalume® steel and a reinforced AQUALINER® Fresh liner system. Designed for longevity and hygiene, this tank is ideal for storing potable water, rainwater, or water for fire protection systems.
STANDARD INCLUSIONS
AQUALINER® FRESH
The first antimicrobial tank liner in the world, our exclusive five-layer AQUALINER® Fresh keeps your water fresher for longer with embedded Sanitized® Silver technology. With a life expectancy of 65 years, the AQUALINER® Fresh is designed to fit the Pioneer Water Tank to prevent contamination.
GEOTEXTILE UNDERLAY
Our geotextile underlay is the ideal way to protect your AQUALINER® Fresh from being compromised by sharp objects that may be caught inside your water tank.
SUPER SEAL
Reduce the number of contaminants to protect your precious water supply with Pioneer Water Tanks’ high-density foam sealer.
SACRIFICIAL ANODES
Our sacrificial magnesium anodes significantly extend the life of your water tank by protecting the tank from corrosion. Made from magnesium, the anodes erode in place of the water tank, thereby protecting the steel and allowing the tank to last longer than other systems. Pioneer Water Tanks recommend your anodes be replaced every 10 years so you can enjoy the benefits of your tank for life.
6-INCH DIAMETER OVERFLOW
Pioneer Water Tanks provides a 6” diameter overflow downpipe, the largest overflow system on the market. The overflow size moves excess water away from the tank quickly to effectively reduce pressure on your tank and avoid costly damage to your tank components.
$12,380.00
Choose Quantity :
Product Information
Product Details

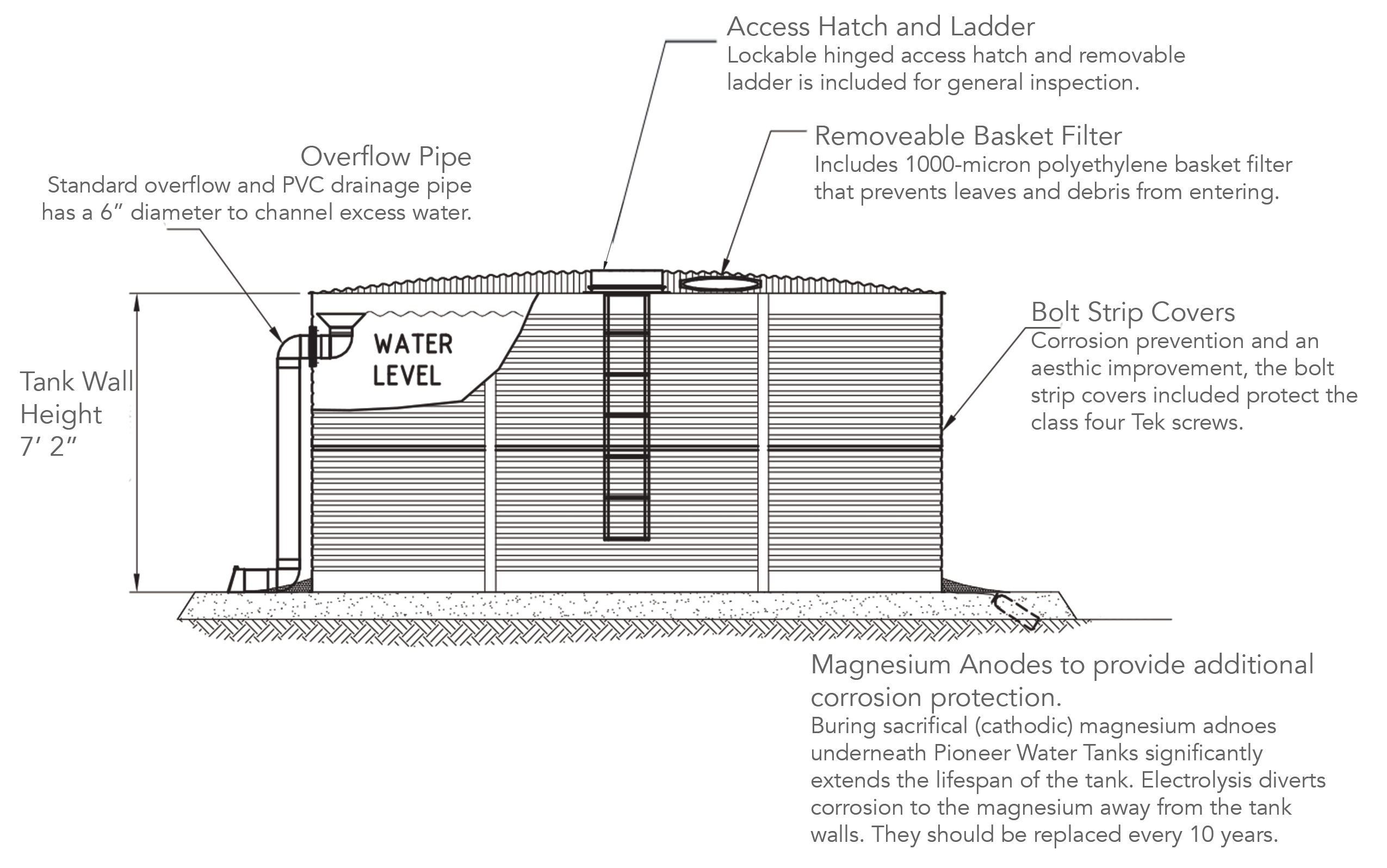

📄 Key Specifications
Model: Pioneer 1702
Capacity: 12,946 Gallons
Diameter: 17′ 7″
Height: 7′ 2″
Material: Zincalume® Steel
Liner: AQUALINER® Fresh with Geotex Underlay
Overflow: 6″ overflow with mosquito screen
Outlet: 2″ bottom outlet with valve
Access: Lockable roof hatch with removable ladder
Extras: Sacrificial anodes, basket filter, full roof system included
🌿 Features
• Corrosion-resistant Zincalume® steel construction
• Antimicrobial liner prevents algae and bacteria growth
• Geotex underlay protects the liner and base
• Fully sealed roof system with reinforced framing
• Includes access safety features and overflow protection
🔧 Applications
• Fire protection storage
• Rainwater harvesting systems
• Agricultural and irrigation storage
• Residential or commercial water supply
🚚 Shipping & Handling
Ships on multiple skids via freight
Total weight: Approx. 2,200–2,800 lbs
Includes all tank panels, liner, hardware, and instruction manual
