Pioneer Water Tanks XLR23/02 – 29,093 Gallons

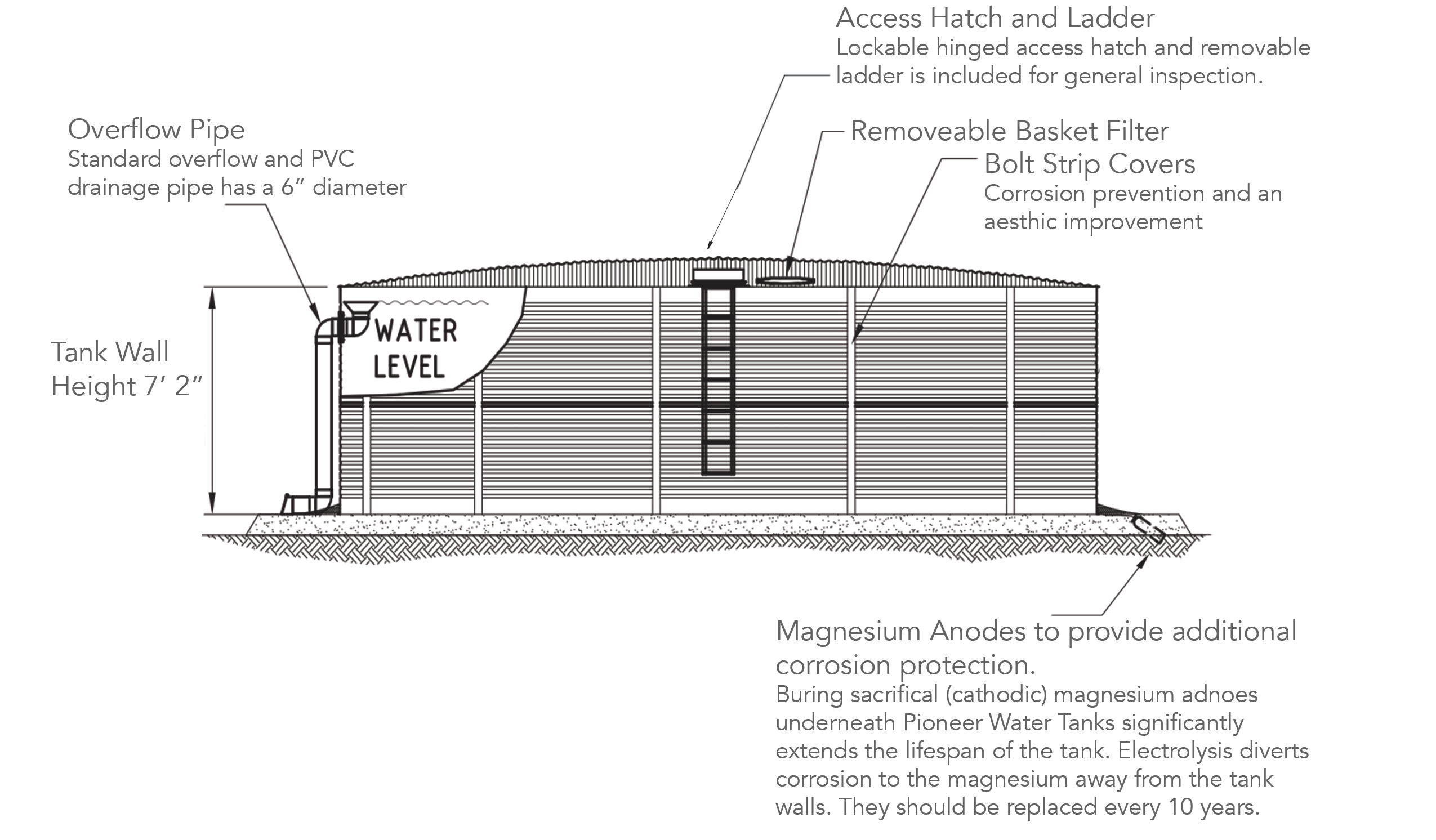

The Pioneer XLR23/02 is a 29,093-gallon Zincalume® steel water storage tank designed for residential, commercial, or fire protection use. This model includes the complete XL08/02 kit from PWTA and the XLR008 hold-down kit for enhanced wind resistance. The system features an AQUALINER® Fresh antimicrobial liner with a geotextile underlay, a full truss-supported roof, lockable access hatch, removable ladder, 6″ overflow, and 2″ bottom outlet. Built for strength and potable water safety, it meets both NSF/ANSI-61 and NFPA standards.
STANDARD INCLUSIONS
AQUALINER® FRESH
The first antimicrobial tank liner in the world, our exclusive five-layer AQUALINER® Fresh keeps your water fresher for longer with embedded Sanitized® Silver technology. With a life expectancy of 65 years, the AQUALINER® Fresh is designed to fit the Pioneer Water Tank to prevent contamination.
GEOTEXTILE UNDERLAY
Our geotextile underlay is the ideal way to protect your AQUALINER® Fresh from being compromised by sharp objects that may be caught inside your water tank.
SUPER SEAL
Reduce the number of contaminants to protect your precious water supply with Pioneer Water Tanks’ high-density foam sealer.
SACRIFICIAL ANODES
Our sacrificial magnesium anodes significantly extend the life of your water tank by protecting the tank from corrosion. Made from magnesium, the anodes erode in place of the water tank, thereby protecting the steel and allowing the tank to last longer than other systems. Pioneer Water Tanks recommend your anodes be replaced every 10 years so you can enjoy the benefits of your tank for life.
6-INCH DIAMETER OVERFLOW
Pioneer Water Tanks provides a 6” diameter overflow downpipe, the largest overflow system on the market. The overflow size moves excess water away from the tank quickly to effectively reduce pressure on your tank and avoid costly damage to your tank components.
$19,409.00
Choose Quantity :
Product Information
Product Details
📐 Key Specifications
- Model: XLR23/02
- Capacity: 29,093 gallons (US)
- Diameter: 26′ 4″ (8.03 m)
- Wall Height: 7′ 2″ (2.18 m)
- Material: Zincalume® corrugated steel (Silver finish)
- Liner: AQUALINER® Fresh antimicrobial liner
- Underlay: Geotextile base layer
- Overflow: 6″ diameter
- Outlet: 2″ bottom outlet with ball valve
- Access: Lockable roof hatch and removable ladder
- Roof: Full truss-supported structural system
- Corrosion Protection: Sacrificial magnesium anodes
- Extras: Basket inlet filter, PWTA XL08/02 kit components, XLR008 hold-down kit
- Certifications: NSF/ANSI-61 potable certified; NFPA compliant
- Warranty: 20-year conditional warranty
🚚 Shipping & Handling
- Packaging: Delivered as flat-packed assembly kit
- Delivery: Flatbed freight with on-site offloading required
- Lead Time: 10-12 weeks standard
- Return Policy: Non-returnable — confirm dimensions and requirements before order
