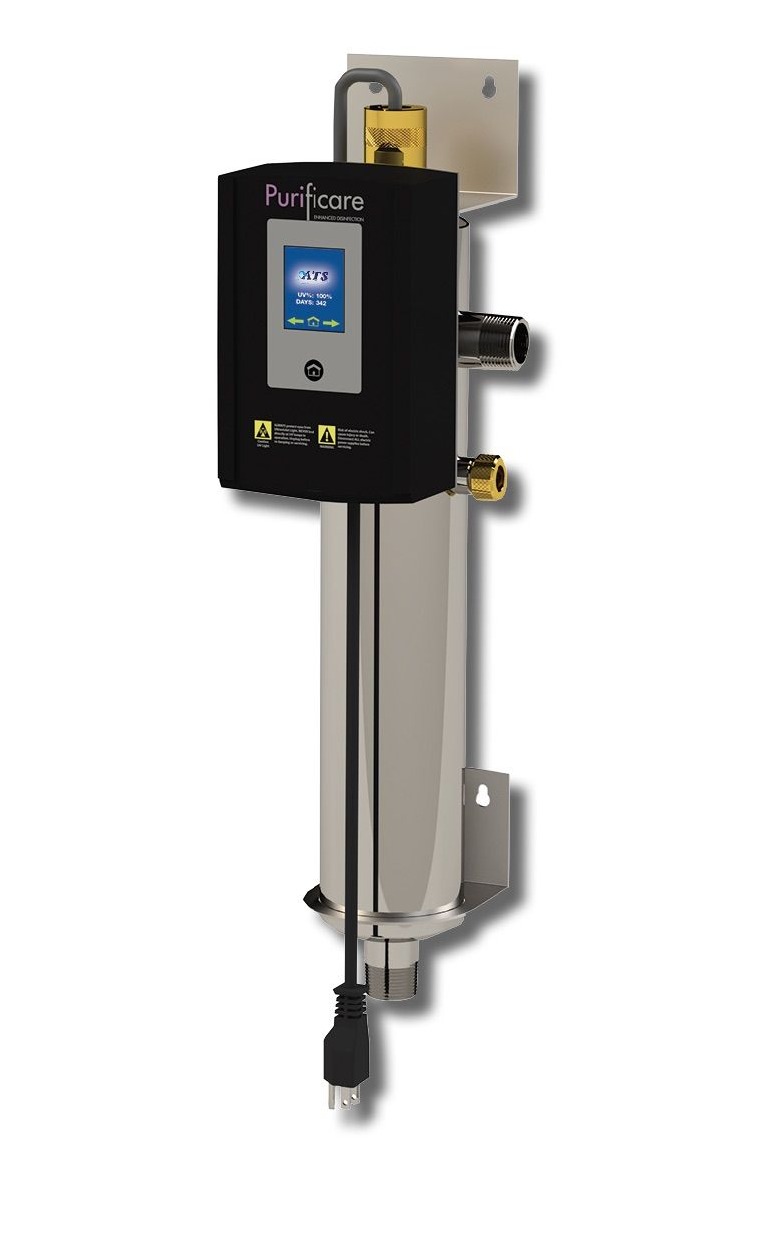

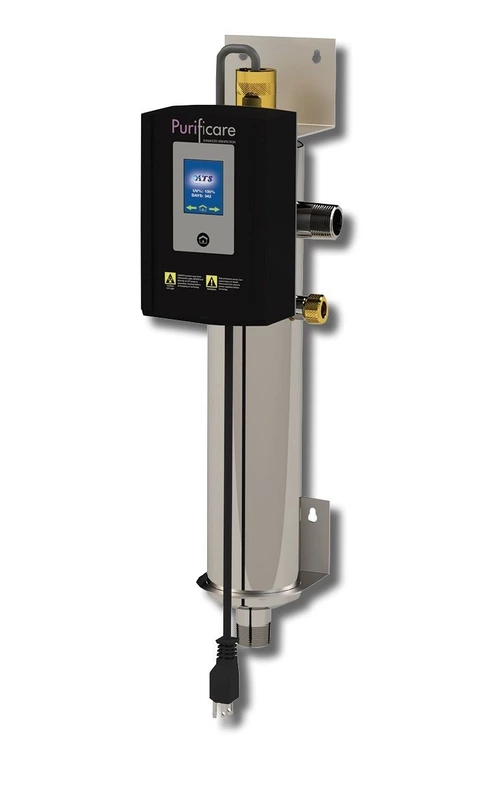

UV.ATS.RES.20.w/Meter – 39W UV Lamp w/ Meter & Alarm for GDS-20
The UV.ATS.RES.20.w/Meter is a high-capacity UV water purification system rated for 20 GPM, featuring a digital touchscreen meter, integrated alarms, and lamp life monitoring. It's ideal for residential and commercial applications requiring precise UV performance tracking.
$1,600.00
Choose Quantity :
Product Information
Product Details
🔍 Key Specifications:
- Model: UV.ATS.RES.20.w/Meter
- Flow Rate: 20 gallons per minute (GPM)
- Lamp Wattage: 39 Watts
- Base Type: 4-pin (single-end)
- Peak UV Output: 253.7 nm
- Inlet/Outlet: ¾" FPT / 1" MPT
- Controller Type: Digital touchscreen
- Sensor Port: Yes (UV intensity sensor optional)
- Alarm System: Visual and audible alerts
- Lamp Life: 10,000 hours
- System Dimensions: 35" L × 5" Dia
- Power Supply: 120V
🛠️ Standard Inclusions:
- Stainless steel UV chamber
- 39W germicidal lamp
- Quartz sleeve
- Digital touchscreen controller
- Optional UV sensor port
- Power supply cord
- Mounting brackets
🌿 Applications Suitable for:
- Whole-house water purification
- Rainwater disinfection
- Well water treatment
- Commercial UV systems
📄 Certifications & Compliance:
- CE certified
- Meets UVC disinfection performance standards
- Leak-tested stainless steel chamber
🚚 Shipping & Handling:
- Shipping Dimensions: 37" L × 6" W × 6" H
- Shipping Weight: 16 lbs (7.3 kg)
- Packaging: Securely boxed with foam inserts
- Delivery: Standard ground shipping
