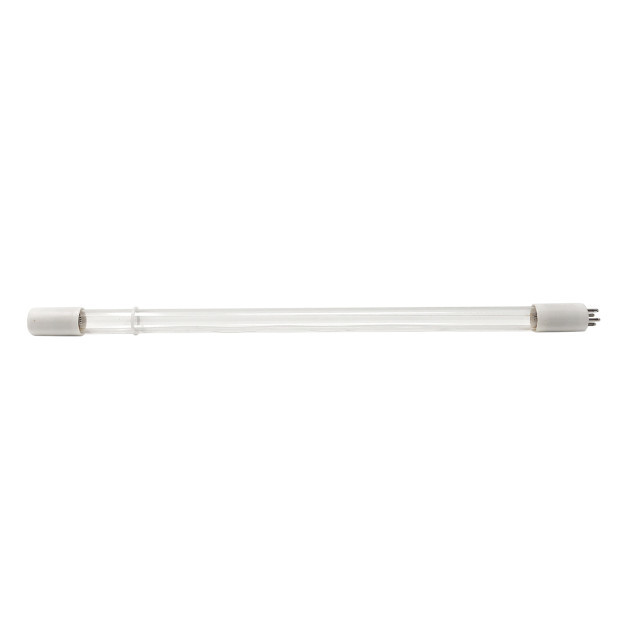

UV.ATS.ATSV.LAMP – 22W Replacement UV Lamp for ATS PFC-8 System
The UV.ATS.ATSV.LAMP is a high-quality 22-watt ultraviolet (UV) replacement lamp designed for the Aqua Treatment Service (ATS) PFC-8 water disinfection system. This germicidal lamp effectively eliminates up to 99.9% of harmful microorganisms in water, ensuring safe and clean water without the use of chemicals.
$308.00
Choose Quantity :
Product Information
Product Details
🔍 Key Specifications:
- Model: UV.ATS.ATSV.LAMP
- Compatibility: Aqua Treatment Service PFC-8 system
- Wattage: 22 Watts
- Voltage: 120 Volts
- Base Type: G10Q-4 (4-pin square)
- Lamp Shape: T5
- Total Length: 17.72 in (450 mm)
- Arc Length: 14.57 in (370 mm)
- Diameter: 15 mm
- Operating Current: 425 mA
- UVC Output: 6.6 Watts
- UV Intensity @ 1m: 62 µW/cm²
- Peak Output: 253.7 nm
- Glass Type: Non-ozone producing
- Lifespan: Up to 10,000 hours
🛠️ Standard Inclusions:
- Replacement UV lamp
- Installation guide
🌿 Applications:
- Residential & commercial UV systems
- Well water disinfection
- Rainwater harvesting
- Compatible with ATS PFC-8 systems
📄 Certifications:
- Meets UV germicidal safety standards
- Manufactured with quality assurance
🚚 Shipping & Handling:
- Dimensions: 18" L × 2" W × 2" H
- Weight: 0.5 lbs (0.23 kg)
- Packaging: Protective tube
- Delivery: Standard ground shipping
