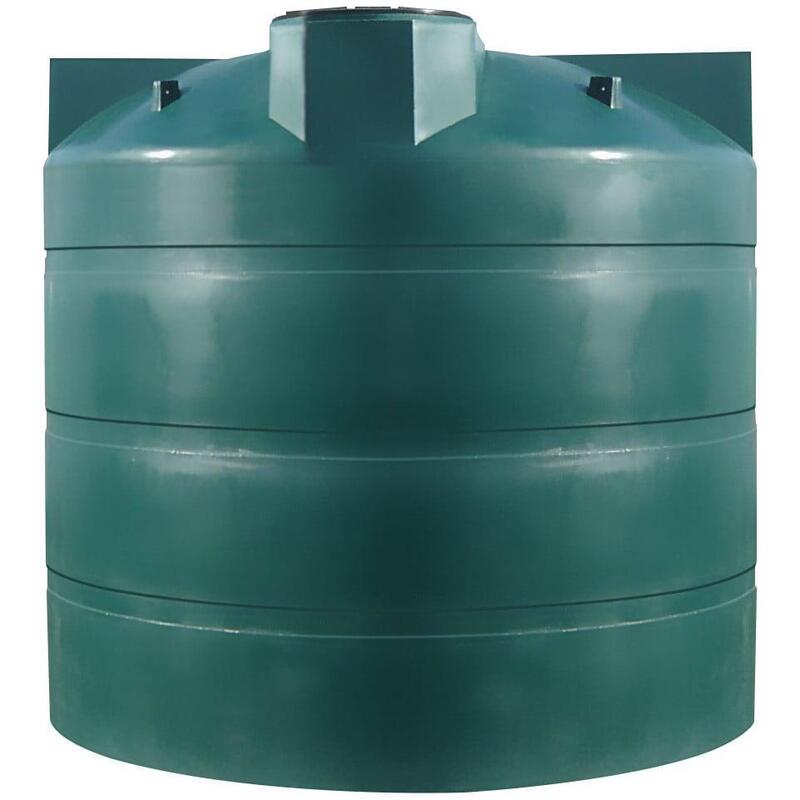

Snyder Industries 3000 Gallon Green Vertical Water Tank - PN 32569
🌿 Snyder Industries 3000 Gallon Plastic Vertical Water Storage Tank
💧Heavy-duty green HDPE tank for long-term above-ground water storage
💧Heavy-duty green HDPE tank for long-term above-ground water storage
📄 Product Overview
The Snyder Industries (PN: 32569) 3000 Gallon Vertical Water Storage Tank is constructed from durable, FDA-approved, food-grade HDPE using a rotational molding process that delivers a seamless, leak-proof design. The green UV-stabilized exterior reduces sunlight exposure to inhibit algae growth. Designed for residential, agricultural, and commercial water storage applications including fire suppression and rainwater harvesting.
Snyder Industries is part of the leading manufacturers of tank and containment solutions relating to industrial and agricultural applications. Since its beginning in 1957, Snyder Industries has been providing products that are top of the line providing cost-effective application and bulk handling container solutions to customers throughout North America and beyond.
The Snyder Industries (PN: 32569) 3000 Gallon Vertical Water Storage Tank is constructed from durable, FDA-approved, food-grade HDPE using a rotational molding process that delivers a seamless, leak-proof design. The green UV-stabilized exterior reduces sunlight exposure to inhibit algae growth. Designed for residential, agricultural, and commercial water storage applications including fire suppression and rainwater harvesting.
Snyder Industries is part of the leading manufacturers of tank and containment solutions relating to industrial and agricultural applications. Since its beginning in 1957, Snyder Industries has been providing products that are top of the line providing cost-effective application and bulk handling container solutions to customers throughout North America and beyond.
3000 Gallon Plastic Vertical Water Storage Tank in Green Uses
Rainwater collection.
Well water storage.
Fire suppression.
Bulk water delivery storage.
Constructed with durable, rotationally molded polyethylene resin, ensuring resistance to cracks, chips, and ruptures.
Built with materials that meet FDA standards for safe-food grade storage, ensuring compliance and safety.
Equipped with UV inhibitors to protect liquid contents from direct sunlight, suitable for indoor and outdoor use.
The black or dark green color prevents light penetration, reducing the growth of algae in the water.
The tanks come pre-fitted with a heavy-duty, bolted bottom drain fitting and a top fitting located near the manway for tank float accessories.
Tanks come standard with large manway openings for easy cleaning and inspection.
Water Tanks are for storage and are not designed to be pressurized. Tanks are designed for water storage use only.
Technical Documents View Technical Drawing NSF Certification FDA Statement Warranty Statement
Rainwater collection.
Well water storage.
Fire suppression.
Bulk water delivery storage.
Constructed with durable, rotationally molded polyethylene resin, ensuring resistance to cracks, chips, and ruptures.
Built with materials that meet FDA standards for safe-food grade storage, ensuring compliance and safety.
Equipped with UV inhibitors to protect liquid contents from direct sunlight, suitable for indoor and outdoor use.
The black or dark green color prevents light penetration, reducing the growth of algae in the water.
The tanks come pre-fitted with a heavy-duty, bolted bottom drain fitting and a top fitting located near the manway for tank float accessories.
Tanks come standard with large manway openings for easy cleaning and inspection.
Water Tanks are for storage and are not designed to be pressurized. Tanks are designed for water storage use only.
| Technical Documents | |
|---|---|

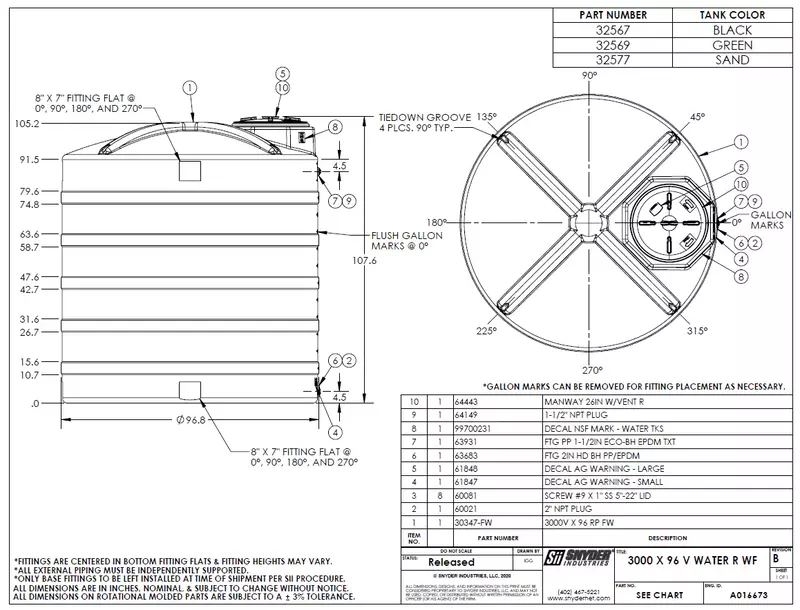

| View Technical Drawing | |
| NSF Certification | |
| FDA Statement | |
| Warranty Statement | |
📞 For freight quote and lead time
Product Details
🛠️ Key Specifications
Capacity: 3000 gallons
Diameter: 96″
Height: 109″
Weight: 427 lbs
Material: High-Density Polyethylene (HDPE)
Color: Green (UV-stabilized)
Specific Gravity Rating: 1.0 (for potable water)
Max Temperature: 120°F
Manway: 26" threaded vented lid
Inlet: 1.5" FNPT bulkhead fitting
Outlet: 2" FNPT bolted bulkhead fitting
Gallon Markings: Molded-in volume indicators
Certifications: FDA CFR 177.1520 & NSF/ANSI 61 compliant
Design: Vertical, one-piece, above-ground use only
🚚 Shipping & Handling
Shipping Dimensions: 96" Diameter × 109" Height
Shipping Weight: 427 lbs
Freight Class: 400
Truckload Quantity: 6 tanks per truckload
Liftgate: Not available (item exceeds liftgate size limits)
Ships From: • Shawnee, OK • Albertville, AL
| Dimensions | |
|---|---|
| Diameter | 96" |
| Length | 96" |
| Width | 96" |
| Height | 109" |
| Weight | 427lbs |
| Inlet | 1.5 |
| Outlet | 2 |
| Lid Size | 26" |
| Key Specs | |
|---|---|
| Manufacturer | Snyder Industries |
| Color | Green |
| Gallon Capacity | 3000 |
| Gallon Indicators | 1 |
| Specific Gravity | 1 |
| Material | High Density Linear Polyethylene |
| Max Temperature | 120 F/ 48 C |
| Certifications & Compliances | ANSI / NSF 61 Approved, FDA Approved |
| Warranty | 3 years |
