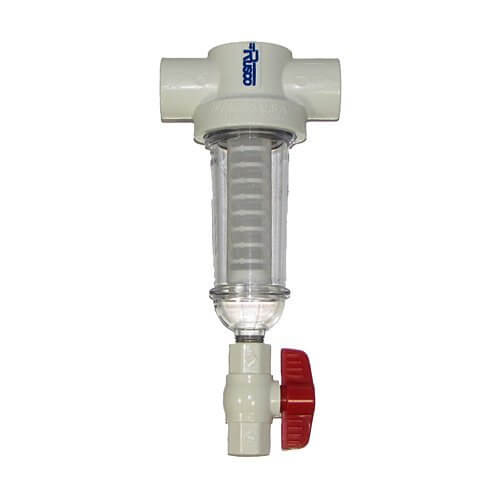

Rusco 1" Spin-Down Filter – 100 Mesh Polyester Screen (1-100-F)
The Rusco 1‑100‑F Spin‑Down Filter uses centrifugal action and a 100‑mesh (≈150 micron) reusable polyester screen to protect your water system from sediment, sand, rust, and debris. Featuring a clear housing for easy clog monitoring and a manual flush valve, it delivers reliable filtration with minimal maintenance.

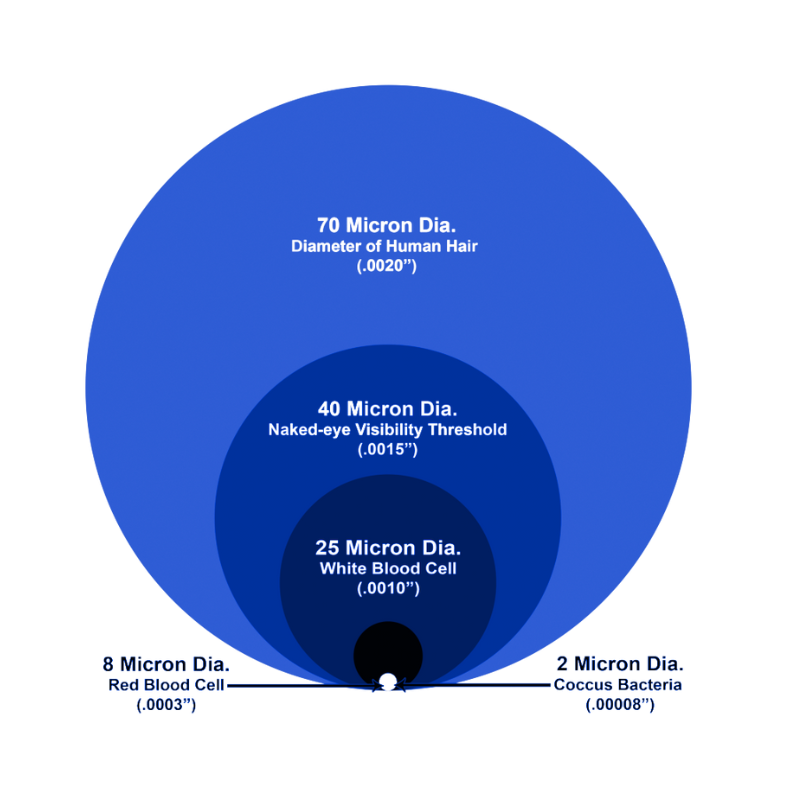

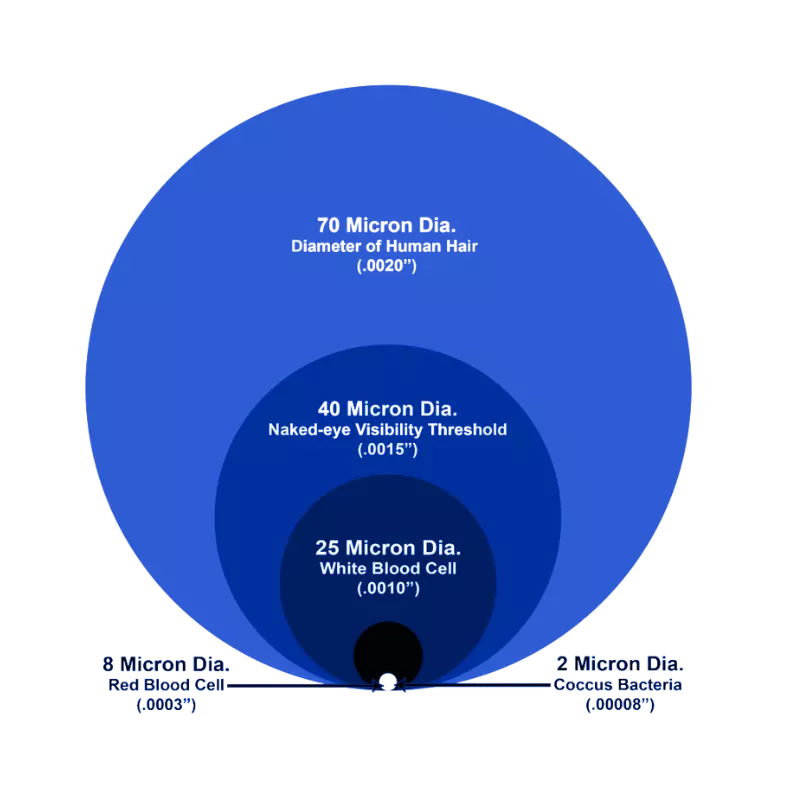

What Is A Micron Rating?
What Is A Micron Rating?
A micron is short for micrometer or one millionth of a meter. As a unit of measure, it describes the size of a particle. A micron rating describes the size of particles that the filter will allow to pass through. So a 150 micron rated filter will not allow anything larger than 150 microns to pass through.
$90.00
Choose Quantity :
Product Information
Product Details
🔍 Key Specifications:
- Model: 1‑100‑F
- Connection: 1″ PVC slip inlet/outlet
- Flow Rate: 1–25 GPM
- Maximum Working Pressure: 150 PSI (10.3 bar)
- Filter Media: 100‑mesh polyester (~150 µm)
- Housing: PVC body with clear, impact-resistant cover
- Dimensions: 11³⁄₈″ L × 5″ diameter
- Weight: ~2lb
- Temperature Range: up to 100 °F
🛠️ Features:
- Reusable polyester screen easy to clean, no replacement needed
- Transparent bowl monitor sediment build-up at a glance
- Manual ball-valve flush under pressure for sediment removal
- Centrifugal spin-down design keeps debris away from downstream plumbing
- Tool-free, slip-connection installation
🌿 Applications:
- Pre-filtration for well pumps and pressure tanks
- Sediment protection for irrigation systems
- Shielding RO, UV, and other water treatment units
- Whole-house sediment filtration
- Livestock and agricultural water supply
📄 Certifications & Materials:
- Utilizes NSF/ANSI-listed components (housing, O-rings)
- BPA-free construction
- Made in the USA
🚚 Shipping & Handling:
- Product Box Dimensions: ~3.5″ × 3.5″ × 9″; Weight: 2lb
- Ships via standard ground — often stocked and ready to ship
- Replacement screen (FS‑1‑100) available separately
