Snyder Industries 5000 Gallon Green Water Tank - PN 32394
🛠️ Product Overview
The Snyder Industries 5000 Gallon Vertical Water Storage Tank is manufactured from FDA-approved, food-grade polyethylene using a seamless one-piece construction for exceptional strength and durability. The green UV-stabilized color helps blend into natural surroundings while reducing light penetration. Designed for above-ground installation, this tank is ideal for residential, commercial, agricultural, and emergency water storage applications.
📏 Key Specifications
Capacity: 5,000 Gallons
Diameter: 102 Inches
Height: 156 Inches
Weight: 730 lbs
Material: High-Density Polyethylene (HDPE)
Color: Green
Specific Gravity Rating: 1.0 (Water Storage)
Maximum Temperature: 120°F
Manway: 26" Threaded Vented Lid
Inlet Fitting: 2" FNPT Bulkhead Fitting
Outlet Fitting: 2" FNPT Bulkhead Fitting
UV Stabilized Resin for Outdoor Use
FDA Approved Resin for Potable Water Storage
Design: Vertical, One-Piece Seamless Construction
Installation: Above-Ground Use Only
🚚 Shipping & Handling
Shipping Dimensions: 102" Diameter × 156" Height
Shipping Weight: 730 lbs
Freight Class: 400
Truckload Quantity: 4 Tanks Per Truckload
Liftgate Delivery: Not Available Due To Tank Size
Ships From: • Albertville, AL
📲 Contact us for freight quote and lead time.
| Technical Documents | |
|---|---|

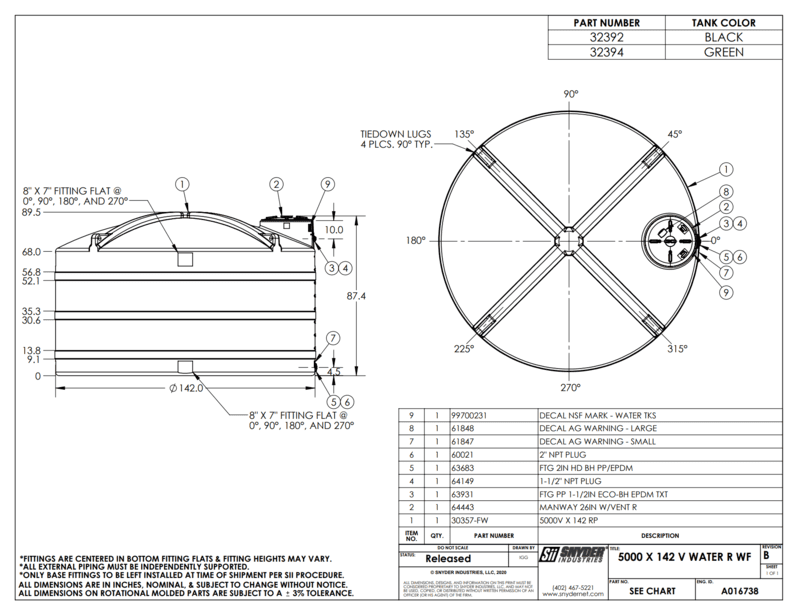

| View Technical Drawing | |
| NSF Certification | |
| FDA Statement | |
| Warranty Statement | |
Product Details
Snyder Industries is part of the leading manufacturers of tank and containment solutions relating to industrial and agricultural applications. Since its beginning in 1957, Snyder Industries has been providing products that are top of the line providing cost-effective application and bulk handling container solutions to customers throughout North America and beyond.
Vertical water storage tanks are used in a variety of applications, such as
Rainwater collection.
Well water storage.
Fire suppression.
Bulk water delivery storage.

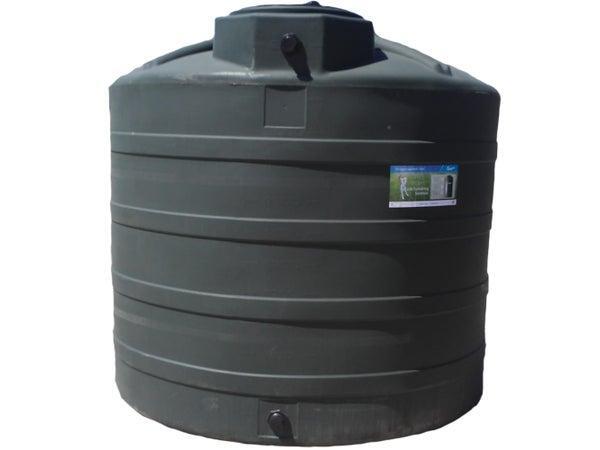

Snyder 5100 Gallon Plastic Water Storage Tank
Constructed with durable, rotationally molded polyethylene resin, ensuring resistance to cracks, chips, and ruptures.
Built with materials that meet FDA standards for safe-food grade storage, ensuring compliance and safety.
Equipped with UV inhibitors to protect liquid contents from direct sunlight, suitable for indoor and outdoor use.
The black or dark green color prevents light penetration, reducing the growth of algae in the water.
The tanks come pre-fitted with a heavy-duty, bolted bottom drain fitting and a top fitting located near the manway for tank float accessories.
Tanks come standard with large manway openings for easy cleaning and inspection.
* Only Green Is Available to Ship within 48 Hours. Black may be in stock ready to ship as well but you'll want to call or email to confirm. Green is scheduled ready to go.
Vertical Plastic Water Tanks are for storage and are not designed to be pressurized.
| Dimensions | |
|---|---|
| Diameter | 142" |
| Length | 142" |
| Width | 142" |
| Height | 93" |
| Weight | 876lbs |
| Inlet | 1.5 |
| Outlet | 2 |
| Lid Size | 26" |
| Key Specs | |
|---|---|
| Manufacturer | Snyder Industries |
| Color | Green |
| Gallon Capacity | 5100 |
| Gallon Indicators | 1 |
| Specific Gravity | 1 |
| Material | High Density Linear Polyethylene |
| Max Temperature | 120 F/ 48 C |
| Certifications & Compliances | ANSI / NSF 61 Approved, FDA Approved |
| Warranty | 3 years |
