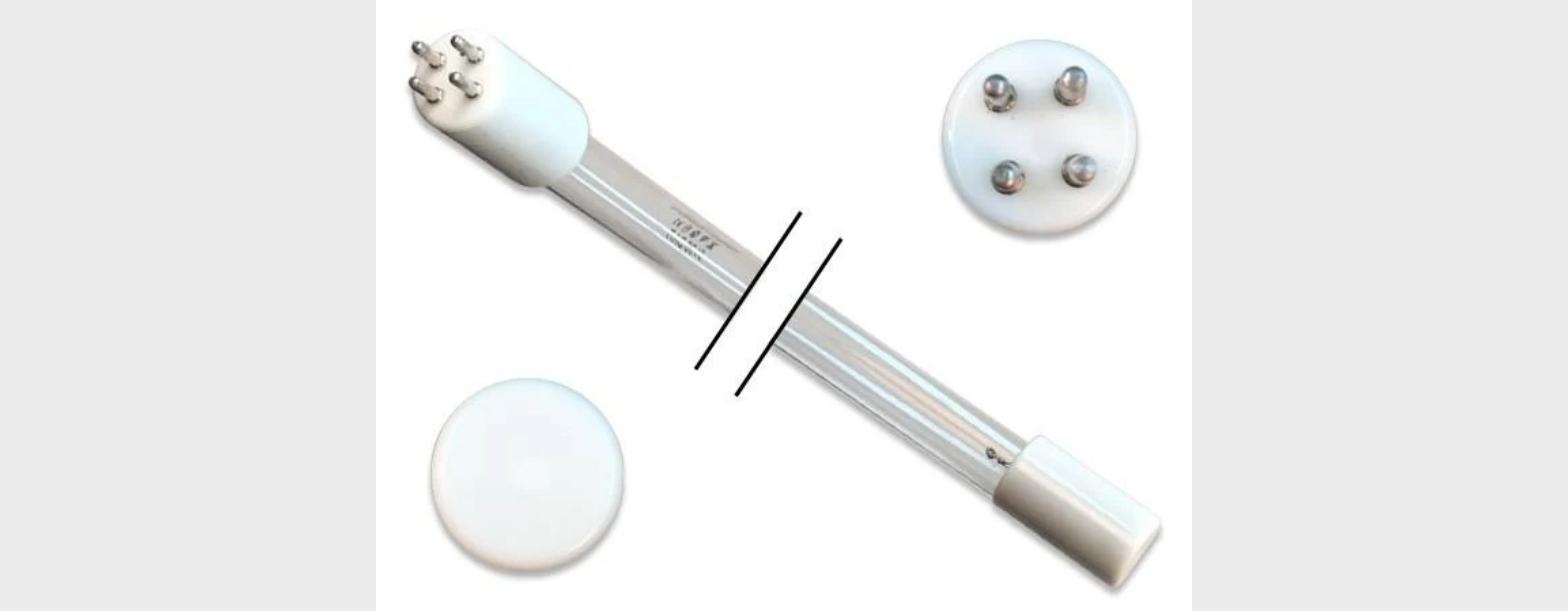

UV.ATS.RES.08 – 22W UV Lamp for ATS GDS-8 Disinfection System
The UV.ATS.RES.08 is a 22-watt ultraviolet (UV) germicidal replacement lamp designed for the Aqua Treatment Service (ATS) GDS-8 water disinfection system. It effectively eliminates up to 99.9% of bacteria, viruses, and other pathogens, ensuring safe and clean water without the use of chemicals
$498.00
Choose Quantity :
Product Information
Product Details
🔍 Key Specifications:
- Model: UV.ATS.RES.08
- Compatibility: Aqua Treatment Service GDS-8 system
- Wattage: 22 Watts
- Base Type: 4-pin (single end)
- Lamp Shape: T5
- Total Length: 17.72 inches (450 mm)
- Arc Length: 14.57 inches (370 mm)
- Diameter: 15 mm
- Operating Current: 425 mA
- UVC Output: 6.6 Watts
- UV Intensity @ 1m: 62 µW/cm²
- Peak Output: 253.7 nm
- Glass Type: Non-ozone producing
- Lifespan: Up to 10,000 hours
🛠️ Standard Inclusions:
- UV.ATS.RES.08 replacement lamp
- Installation guide
🌿 Applications Suitable for:

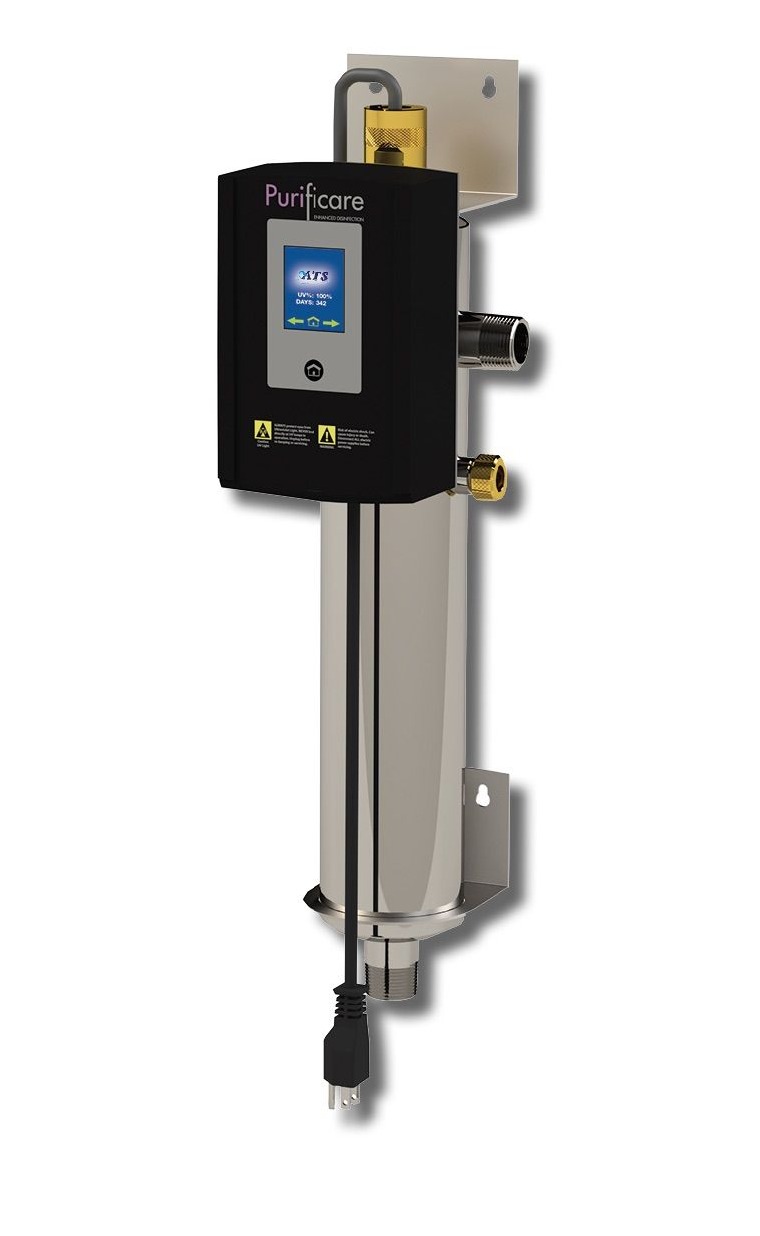

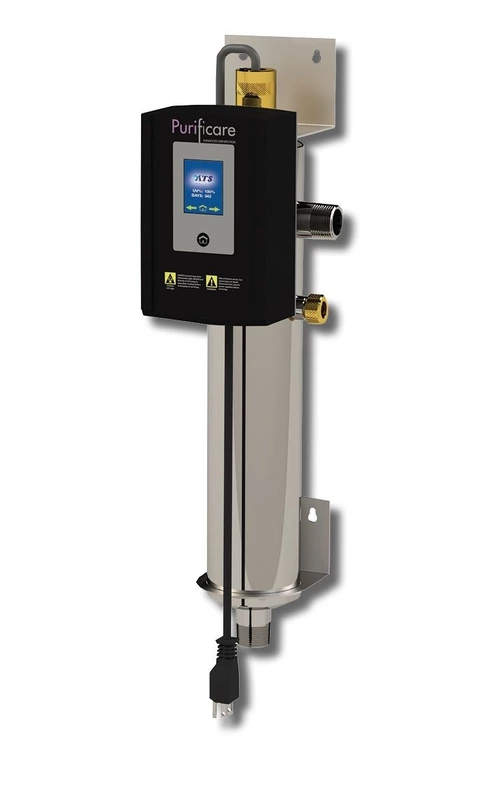

- Aqua Treatment Service GDS-8 UV disinfection systems
- Residential and commercial water purification
- Well water treatment
- Rainwater harvesting systems
📄 Certifications & Compliance:
- Complies with industry standards for UV germicidal lamps
- Manufactured by reputable suppliers ensuring quality and reliability
🚚 Shipping & Handling:
- Shipping Dimensions: 18" L × 2" W × 2" H
- Shipping Weight: Approximately 0.5 lbs (0.23 kg)
- Packaging: Securely boxed with protective materials
- Delivery: Standard ground shipping
