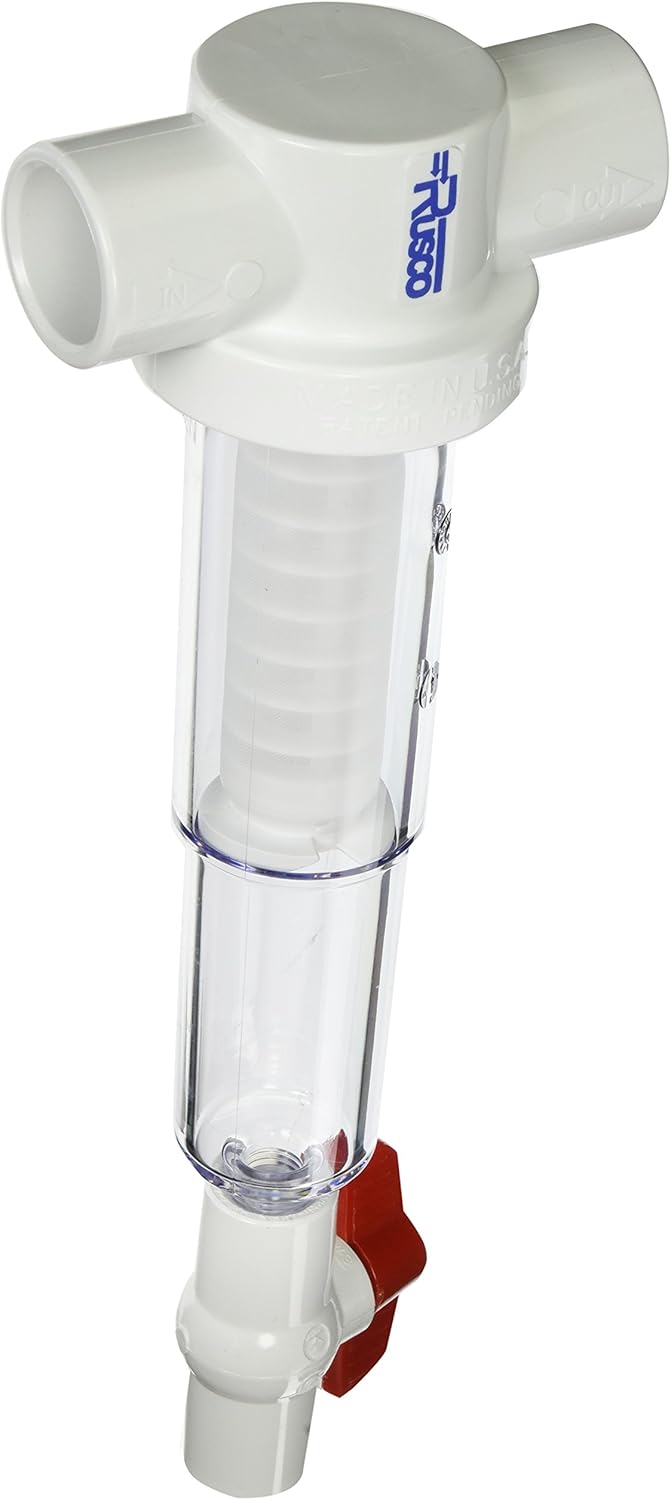

Rusco 1-100ST-F Polyester Screen Sediment Trapper System
The Rusco 1-100ST-F is a high-performance sediment filter designed to trap debris in water systems with heavy sediment loads. Its clear cover and large internal trap chamber allow for easy inspection and less frequent cleaning, making it ideal for residential, agricultural, and light commercial use.

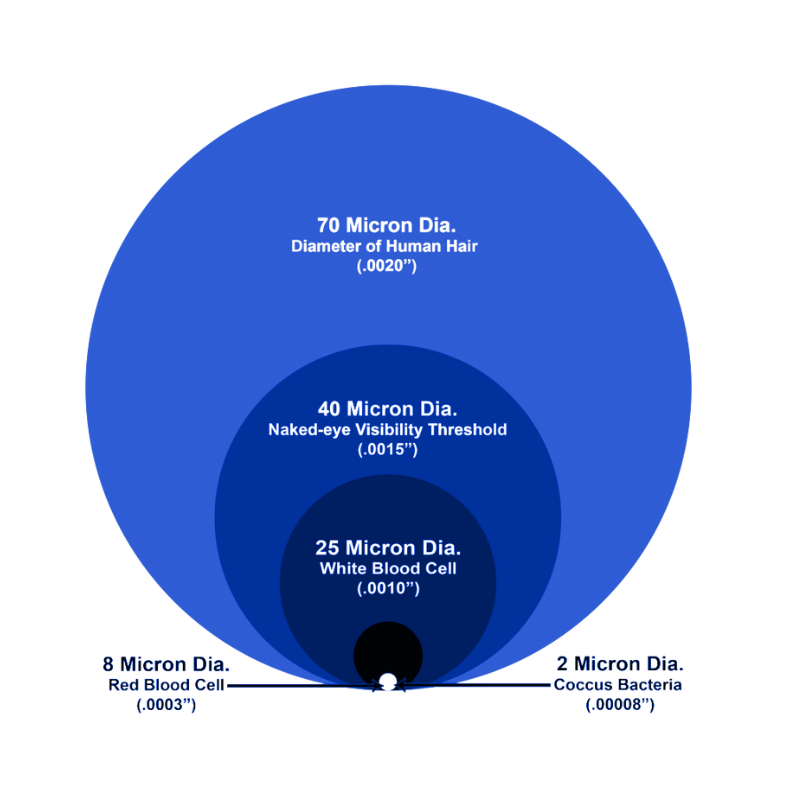

What Is A Micron Rating?
What Is A Micron Rating?
A micron is short for micrometer or one millionth of a meter. As a unit of measure, it describes the size of a particle. A micron rating describes the size of particles that the filter will allow to pass through. So a 150 micron rated filter will not allow anything larger than 150 microns to pass through.
Documentation
$70.40
Choose Quantity :
Product Information
Product Details
🔍 Key Specifications:
- Model: 1-100ST-F
- Connection Type: 1″ Slip (PVC)

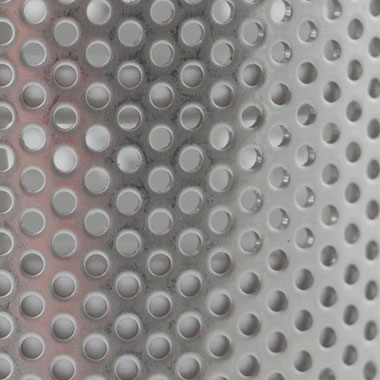

- Filter Screen: 100 Mesh (150 Micron) Polyester
- Maximum Flow Rate: 1–25 GPM
- Maximum Pressure: 150 PSI
- Operating Temperature Range: 40–100°F
- Material: PVC body, clear high-impact polymer bowl
- O-Rings: EPDM/Buna-N
- Flush Valve: ½″ Male Pipe Thread (MPT)
- Dimensions: 9″ Height ×3.5″ Diameter
- Weight: ~2lbs
🛠️ Features:
- Built-in centrifugal separation traps sediment in chamber
- Reusable, washable polyester filter screen
- Transparent bowl for visual inspection
- Manual flush valve for easy cleaning under pressure
- No tools needed for disassembly or maintenance
🌿 Ideal Applications:
- Pre-filtration for well water systems
- Drip irrigation and garden protection
- Pre-filter for reverse osmosis or UV systems
- Whole-house filtration systems
📄 Certifications:
- Made in the USA
- BPA-free construction
- Components conform to NSF/ANSI standards
🚚 Shipping & Handling:
- Shipping Dimensions: 9″ × 3.5″ × 3.5″
- Shipping Weight: ~2.0lbs
- Packaging: Individually boxed
- Delivery: Ships via standard ground
