Snyder Industries 10,000 Gallon Green Water Tank - PN 5330200W99803
The Snyder 10,000 gallon Vertical Dome Top (VDT) water storage tank is manufactured from FDA-compliant, BPA-free polyethylene resin in an NSF-inspected facility, making it suitable for potable water storage. Its one-piece seamless rotational molded construction resists cracking, chipping, and rupture, and built-in UV inhibitors protect stored contents for indoor or outdoor use.
Standard equipment includes a 24" vented manway, 1-1/2" NPT bulkhead fitting with plug, and 2" bulkhead fitting with plug. The tank features four tiedown lugs and three lifting lugs for secure anchoring and handling, plus pre-marked fitting locations for easy field customization. Available in black or dark olive green.
Common uses: rainwater collection, well water storage, fire suppression, bulk water delivery, agricultural/irrigation storage.
Key Features:
- 10,000 gallon capacity, one-piece seamless construction
- NSF certified / FDA compliant resin (21 CFR 177.1520)
- 24" threaded/vented manway (PE)
- 1-1/2" and 2" NPT bulkhead fittings included w/ plugs
- UV-inhibited polyethylene for indoor/outdoor use
- Specific gravity rating: 1.0 (potable water safe)
- 4 tiedown lugs (90° spacing), 3 lifting lugs (120° spacing)
- 3-year manufacturer warranty
- Available in black or dark olive green

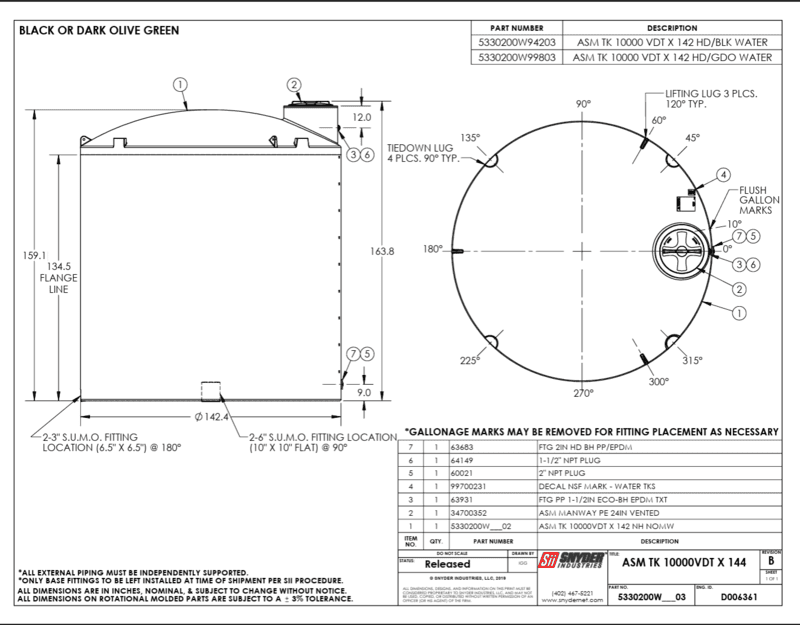

Dimensions & Weight
Tank Dimensions:
- Diameter: 144"
- Height: ~161"–163.8" (overall, incl. fittings)
- Flange line height: 142.4"–134.5"
Shipping Dimensions (estimated — tanks of this size typically ship unpacked/unpalletized, standing upright on a flatbed):
- L x W x H: 144" x 144" x 164" (round footprint, treat as square for freight quoting)
- Freight class: recommend confirming with carrier — large poly tanks like this commonly fall in class 125-150 due to dimensional weight vs. actual weight
Weight:
- Empty (shipping) weight: 2,420 lbs
| Technical Documents | |
|---|---|
| Snyder 10K Gallon - Green | |
Product Details
Snyder Industries is part of the leading manufacturers of tank and containment solutions relating to industrial and agricultural applications. Since its beginning in 1957, Snyder Industries has been providing products that are top of the line providing cost-effective application and bulk handling container solutions to customers throughout North America and beyond.
Vertical water storage tanks are used in a variety of applications, such as
- Rainwater collection.
- Well water storage.
- Fire suppression.
- Bulk water delivery storage.
10000 Gallon Plastic Water Storage Tank
- Constructed with durable, rotationally molded polyethylene resin, ensuring resistance to cracks, chips, and ruptures.
- Built with materials that meet FDA standards for safe-food grade storage, ensuring compliance and safety.
- Equipped with UV inhibitors to protect liquid contents from direct sunlight, suitable for indoor and outdoor use.
- The black or dark green color prevents light penetration, reducing the growth of algae in the water.
- The tanks come pre-fitted with a heavy-duty, bolted bottom drain fitting and a top fitting located near the manway for tank float accessories.
- Tanks come standard with large manway openings for easy cleaning and inspection.
Water Tanks are for storage and are not designed to be pressurized. Tanks are designed for water storage use only.
All opaque water tanks are manufactured in NSF-certified plants and carry NSF certification.
If an NSF Certified tank is required you must add the NSF sticker to your order.
Part Number - Green - 5330200W99801- Simplex Part # WG100
Part Number - Black- 5330200W94205 - Simplex Part # W100
| Key Specs | |
|---|---|
| Manufacturer | Snyder Industries |
| Color | Green |
| Gallon Capacity | 10000 |
| Gallon Indicators | 1 |
| Specific Gravity | 1 |
| Material | Polyethylene |
| Max Temperature | 120 F/ 48 C |
| Certifications & Compliances | ANSI / NSF 61 Approved, FDA Approved |
| UV Inhibitors | Yes |
| Warranty | 3 years |
