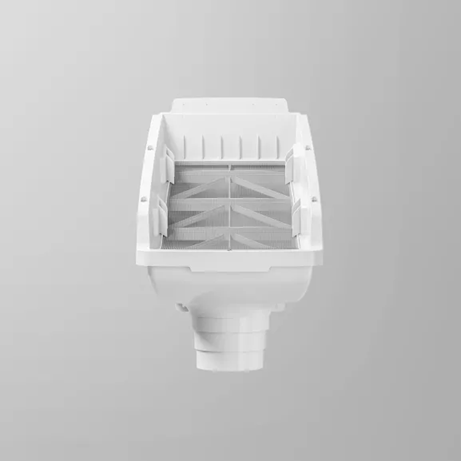

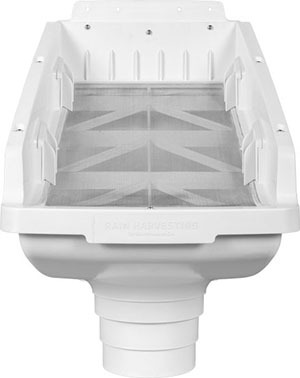

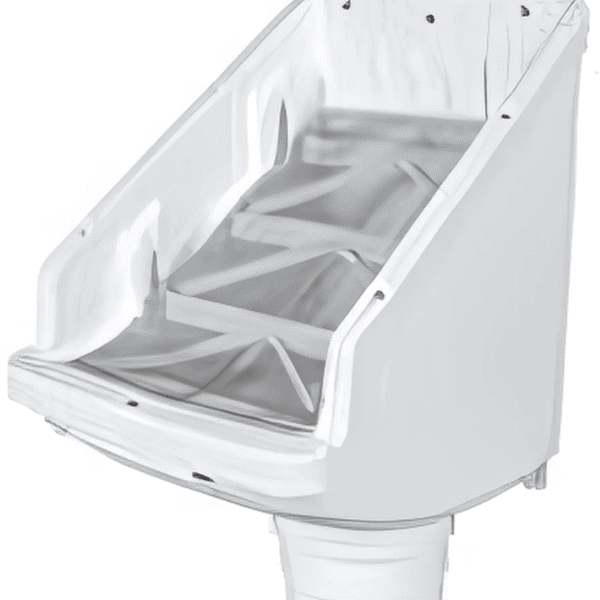

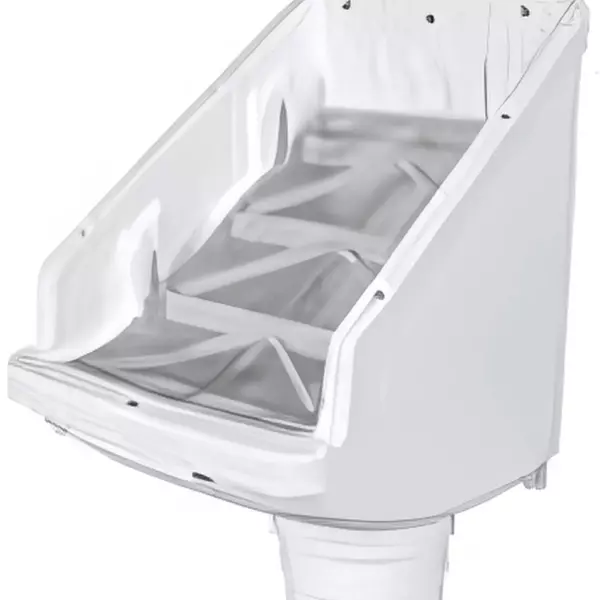

Leaf Eater Commercial Rain Head Downspout Filter, 6" Round
Commercial screened rain heads prevent leaves and debris from blocking downspouts and entering your rainwater tank. Rain heads are ideally installed on each downpipe as they protect the building and improve your tank's water quality. 6 inch (150 mm) outlet size.
$219.99
$264.00
Choose Quantity :
Product Information
Product Details
Features and Benefits:
- Features a 6" (150 mm) round outlet at the bottom
- High flow rate performance to match commercial requirements
- Patented single screen technology for advanced debris shedding (Clean Shield™)
- Minimal maintenance
- Superior catchment efficiency
- A single mosquito proof stainless steel mesh screen with 0.955mm aperture
Installation Instructions:
- Select a location for the rain head. A rain head installed at a height of about 8 to 9 feet will prevent tampering while providing convenient access for maintenance
- Cut and secure the bottom downspout section (outlet) to the wall. Offset the pipe about 1-1/4" from the wall where it will connect to the rain head outlet
- Install the rain head into the downspout and mark the side flange fastening holes. Remove the rain head and prepare the necessary fastening points. Fasten the rain head to the wall ensuring that it is adequately supported by the wall structure
- Position the downspout above the rain head with an offset of approx. 1-1/4" from the wall
- Cut the outlet of the downspout at an angle of 35 degrees to match the angle of the screen
- Position the angled pipe 2" to 3" above the stainless steel screen to allow leaves and debris to exit the downspout
- Select a location for the rain head. A rain head installed at a height of about 8 to 9 feet will prevent tampering while providing convenient access for maintenance
- Cut and secure the bottom downspout section (outlet) to the wall. Offset the pipe about 1-1/4" from the wall where it will connect to the rain head outlet
- Install the rain head into the downspout and mark the side flange fastening holes. Remove the rain head and prepare the necessary fastening points. Fasten the rain head to the wall ensuring that it is adequately supported by the wall structure
- Position the downspout above the rain head with an offset of approx. 1-1/4" from the wall
- Cut the outlet of the downspout at an angle of 35 degrees to match the angle of the screen
- Position the angled pipe 2" to 3" above the stainless steel screen to allow leaves and debris to exit the downspout
Installation Diagram:
