AltitudeValve1Way.Claval.08FLG1

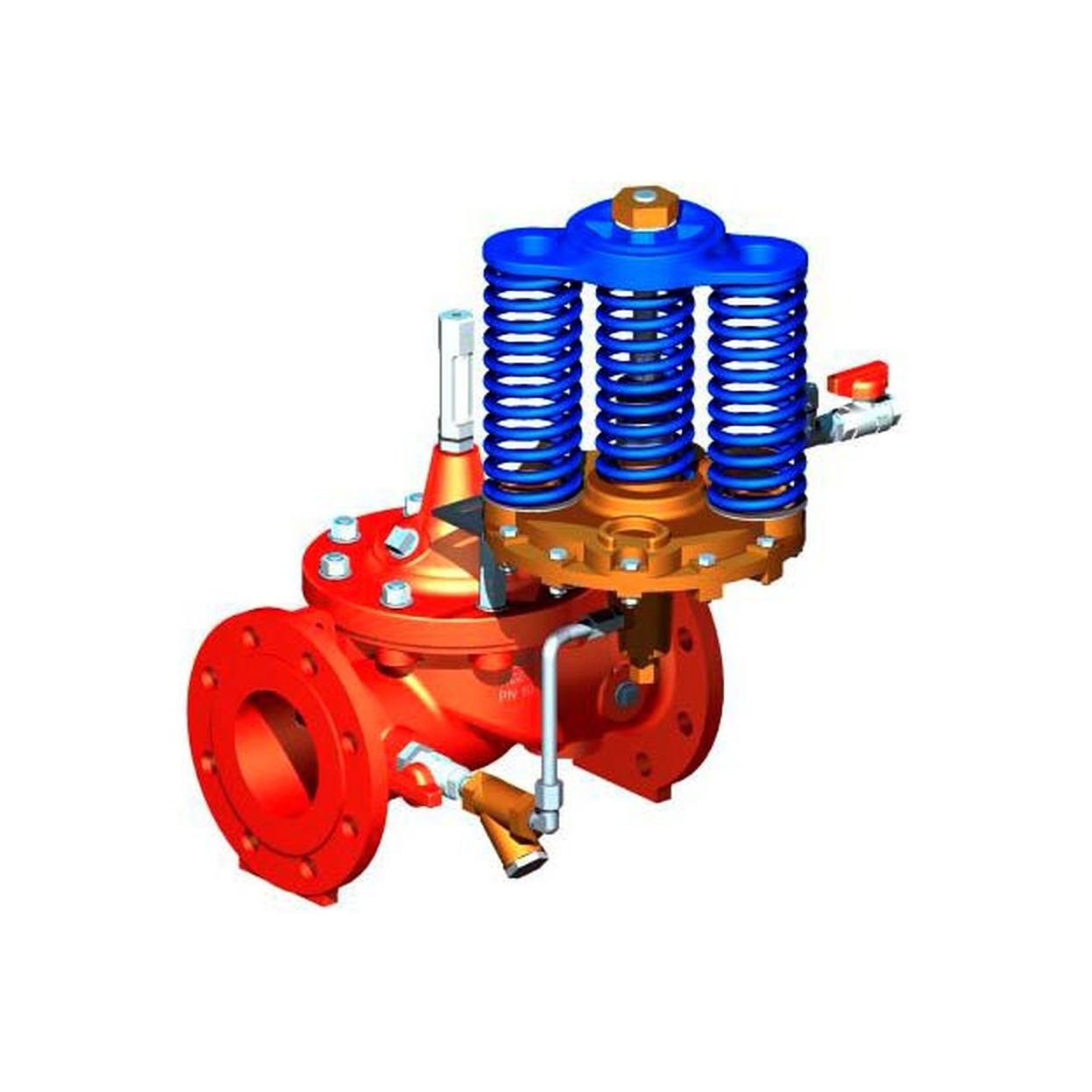

Cla-Val 210-01 8" one-way altitude valve — Class 150 flanged, cast iron body, globe pattern design for automatic reservoir and tank water level control.
Non-returnable
Choose Quantity :
Product Information
Product Details
The Cla-Val Model 210-01 is a hydraulically operated, pilot-controlled one-way altitude valve that automatically shuts off flow into a reservoir or tank when the water level reaches a predetermined high point, and reopens when the level drops — preventing overflow without external power or electronic controls.
Features:
- Class 150 flanged connections, cast iron body, globe pattern design
- Available adjustment ranges: 5-40', 30-80', 70-120', 110-160', and 150-200' of water
- Standard closing speed control and valve position indicator
- Optional Y-strainer, isolation valves, and opening speed control
- Maximum working pressure: 300 PSI; maximum temperature: 180°F
Specifications (8"):
- Dimensions: 20.00" x 20.00" x 25.38" (L x W x H)
- Weight: 500 lbs
- Max flow: 3,100 GPM
