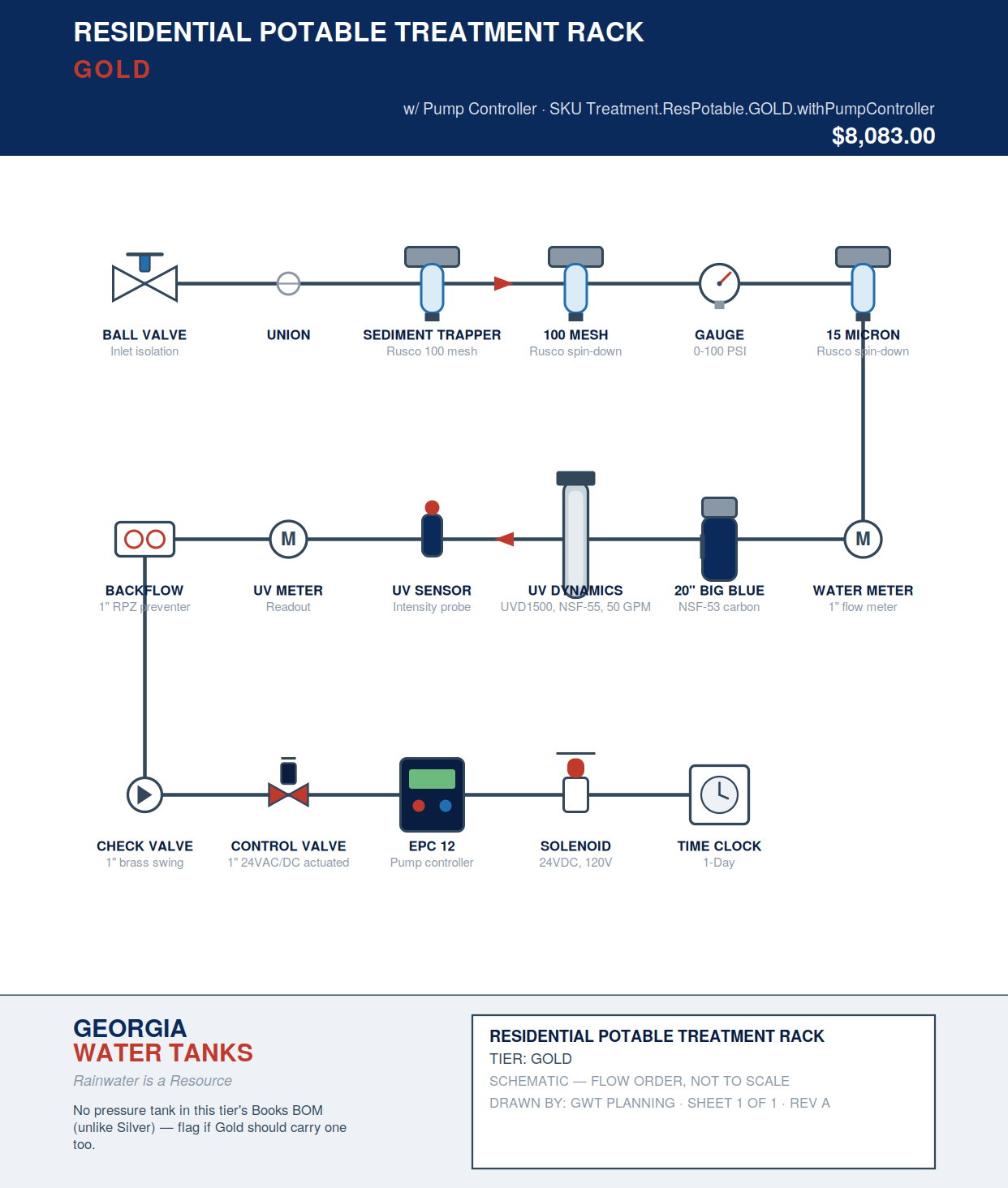

Residential Potable Treatment - w/Pump Controller - GOLD

Includes:

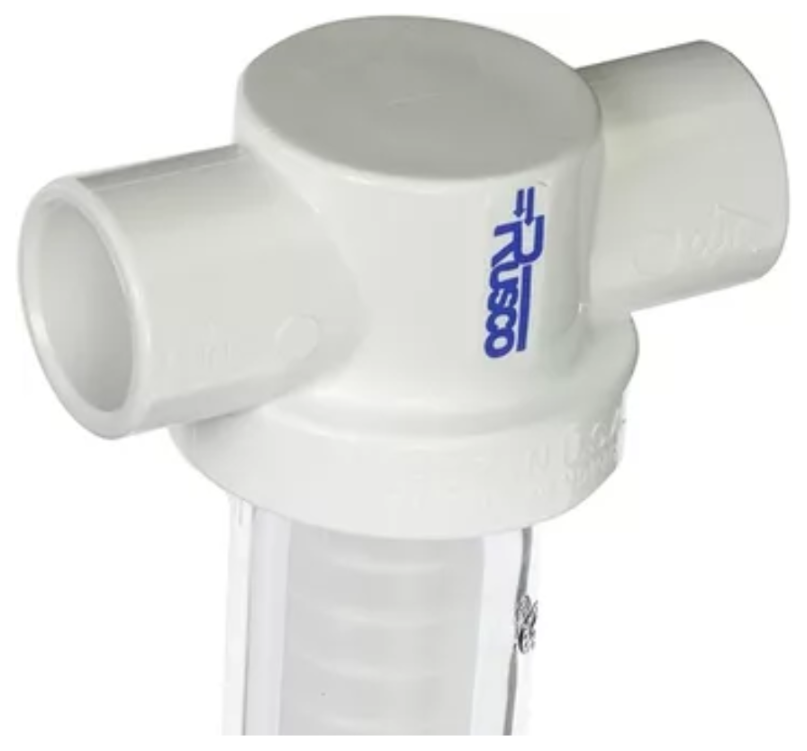

1) [Filter.Spindown.1.150]                    Rusco 1-100-F 1" Spin-Down Polyester Filter - 1

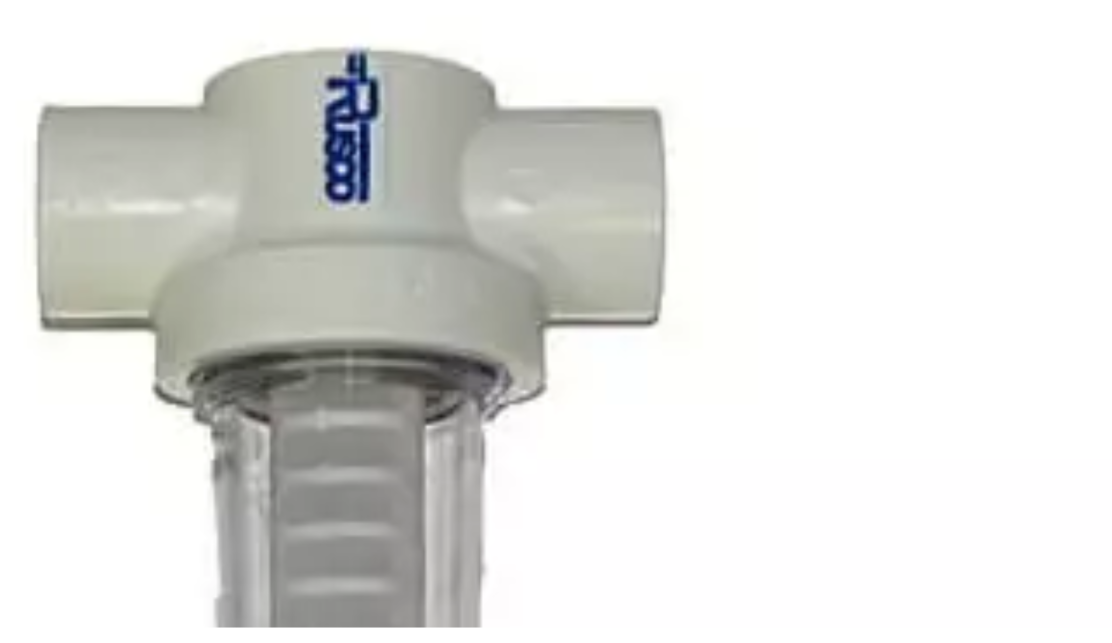

2) [Filter.Spindown.1.015]                   Spindown Filter 1" 15 Micron/1000 Mesh - 1

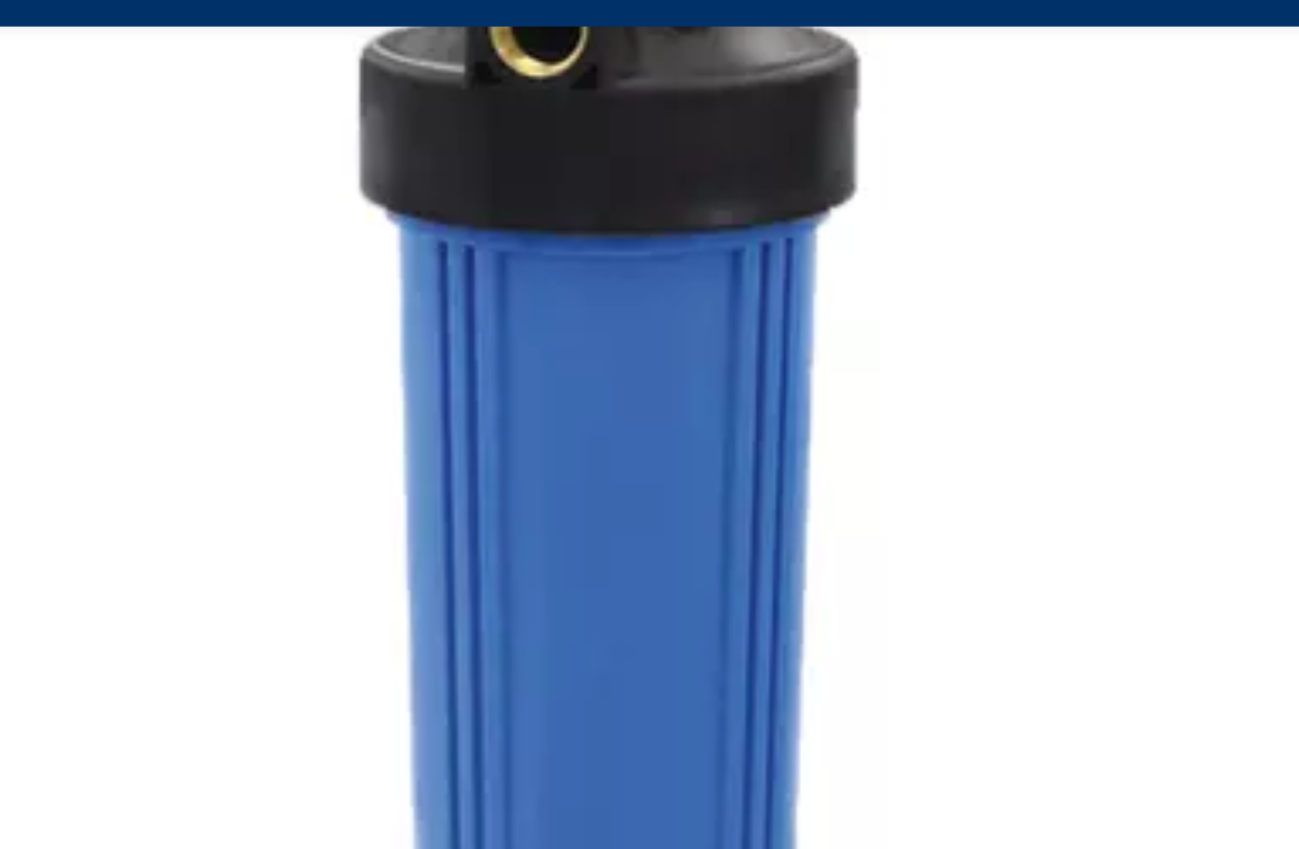

3) [Filter-BigBlue Housing]                 Big Blue 20" Housing, 1" Ports, Pressure Relief - 1

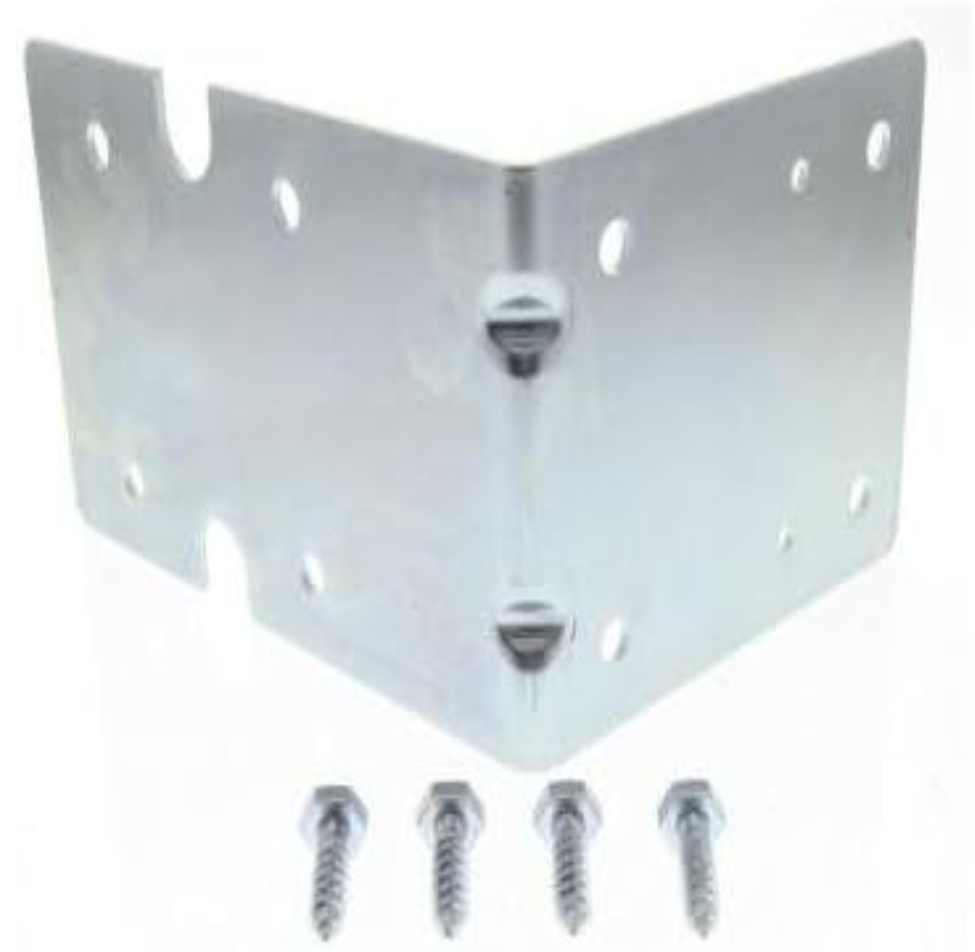

4) [Filter-BigBlueBracket]                   Big Blue Mounting Bracket - 1

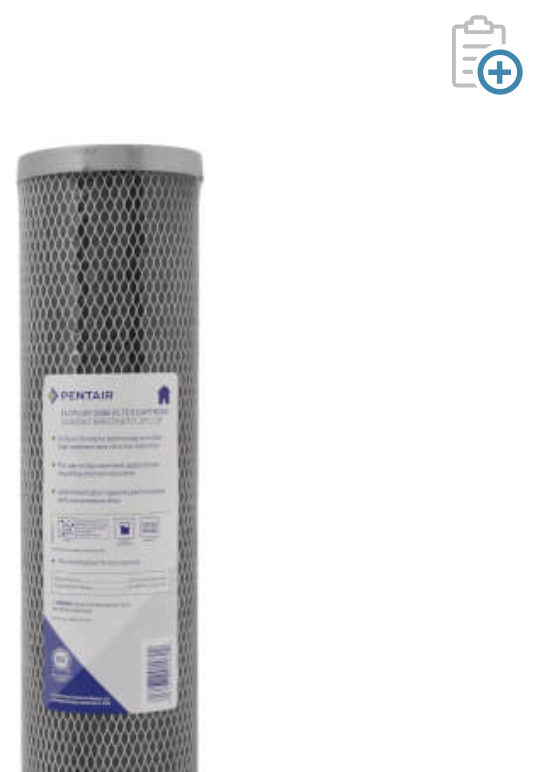

5) [Filter-BigBlueCarbon.NSF53]       Big Blue Carbon Cartridge, NSF-53 Certified - 1

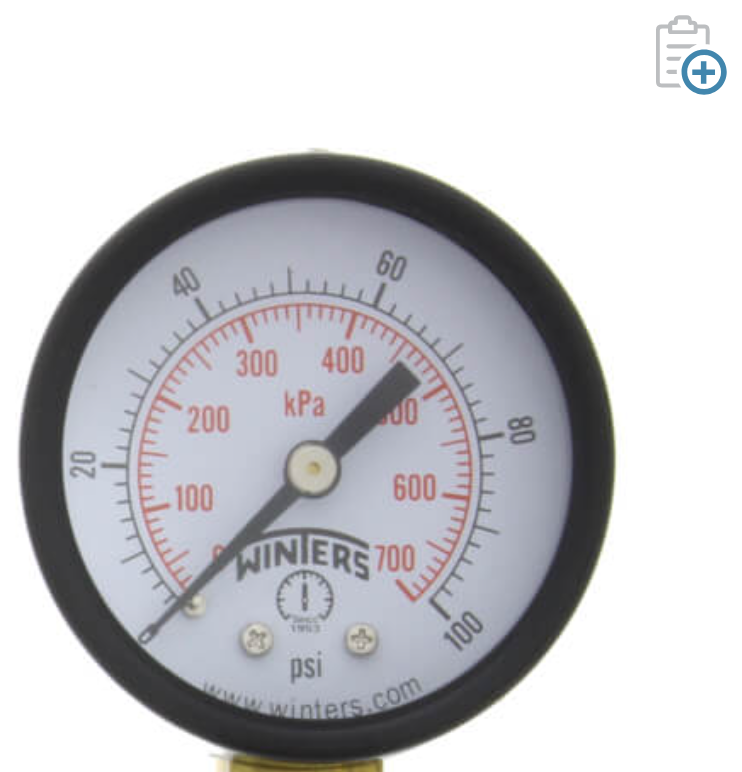

6) [Gauge.PSI.0-100.2".LowerConn]  Pressure Gauge, 0-100 PSI, 2" Lower Connection - 3

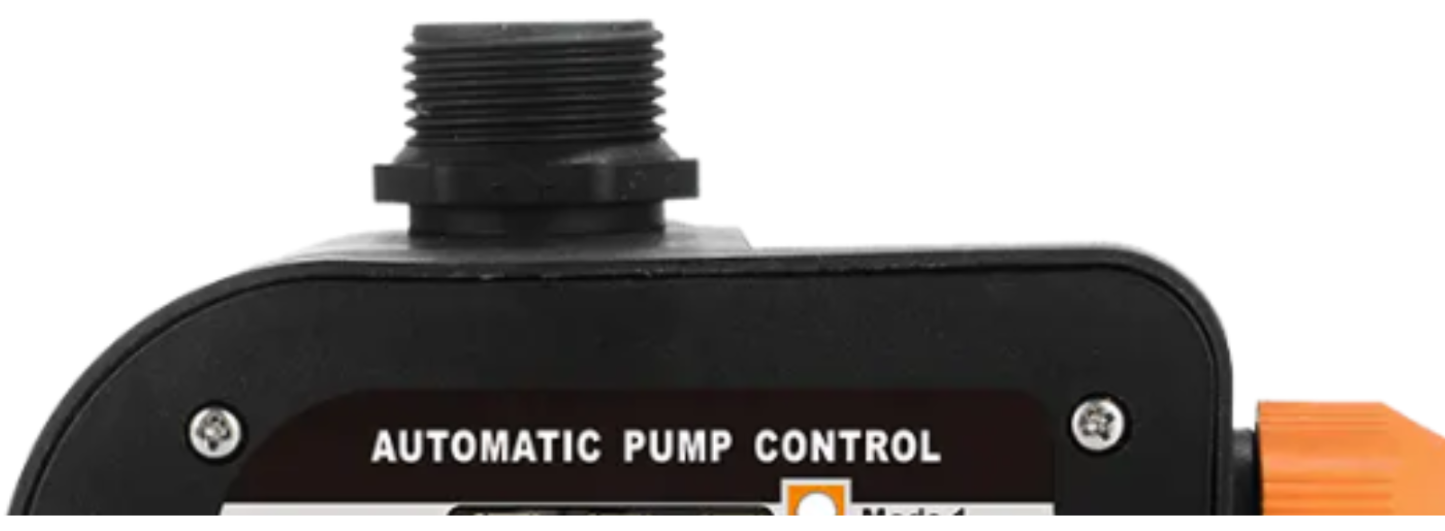

7) [Controller.EPC12.240V]                EPC 12 Pump Controller, 120V 1.5HP / 240V 3HP - 1

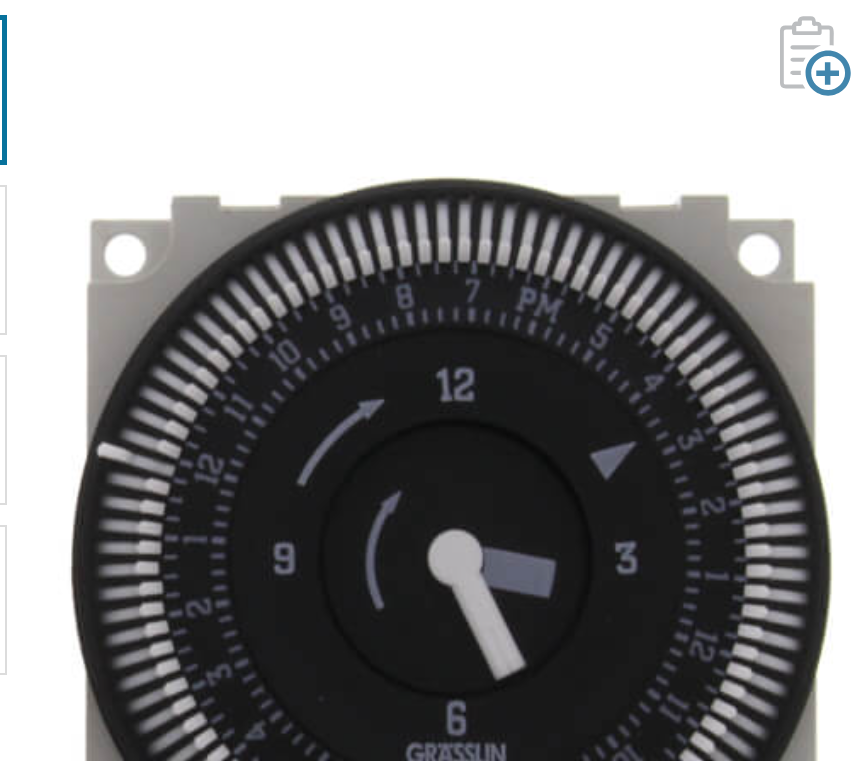

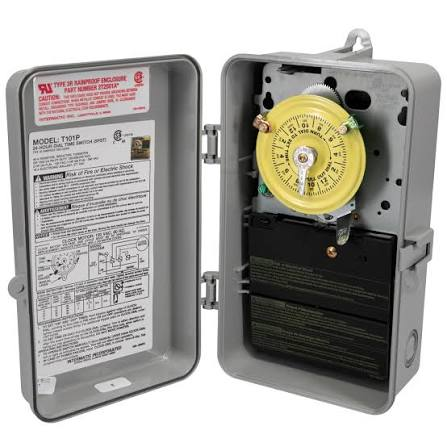

8) [TimeClockSwitch.1D]                   Time Clock Switch, 1-Day - 1

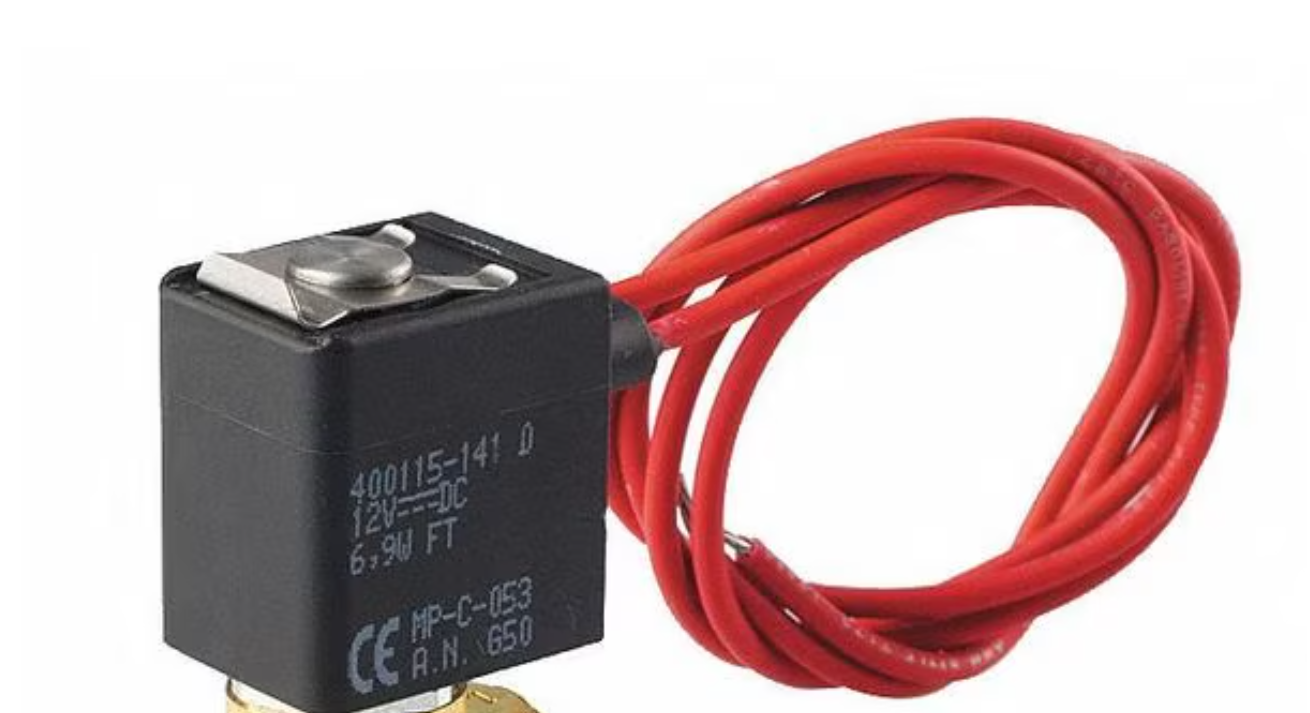

9) [Valve.Sol.24VDC.1/8.NC.120V]   Solenoid Valve, 24VDC, 1/8", NC, 120V - 1

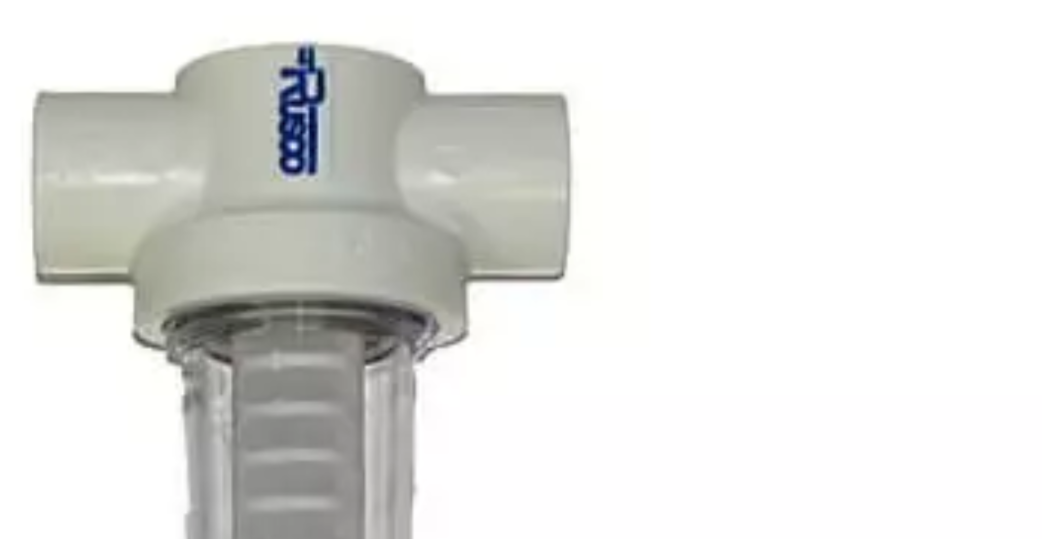

10) [Filter.Spindown.ST.1.150]           Rusco 1" 100 Mesh Sediment Trapper Filter - 1

11) [Water.Meter.1]                             1" Water Meter - 1

12) [UV.UVD.NSF 50GPM]               UV Dynamics UVD1500 UV System, NSF-55 Certified, up to 50 GPM - 1

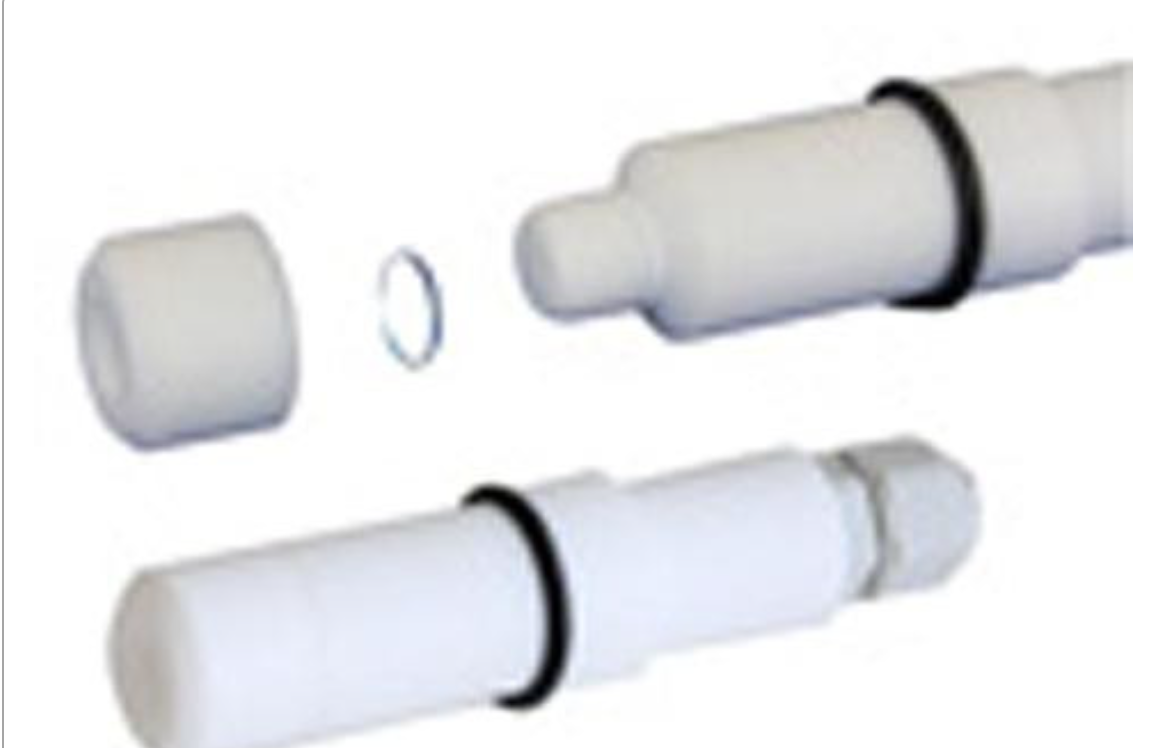

13) [UV.UVD.Sensor]                         UV Sensor Probe for UV Dynamics - 1

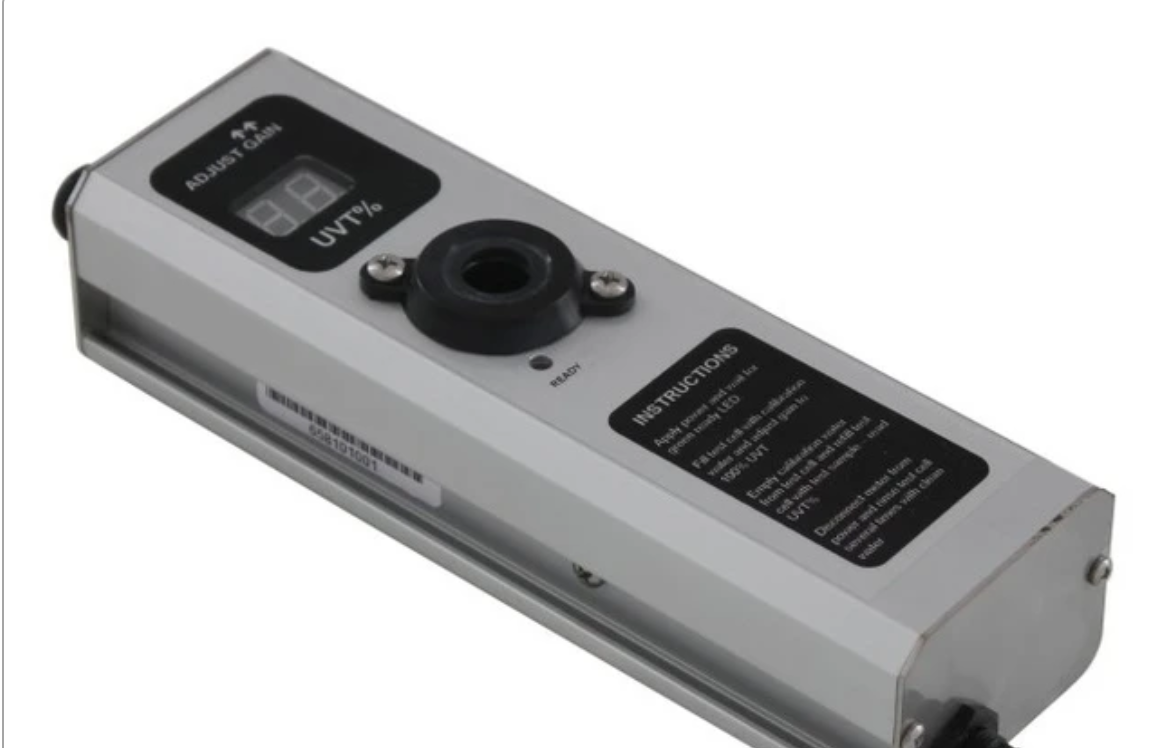

14) [UV.UVD.Meter]                          UV Meter for UV Dynamics - 1

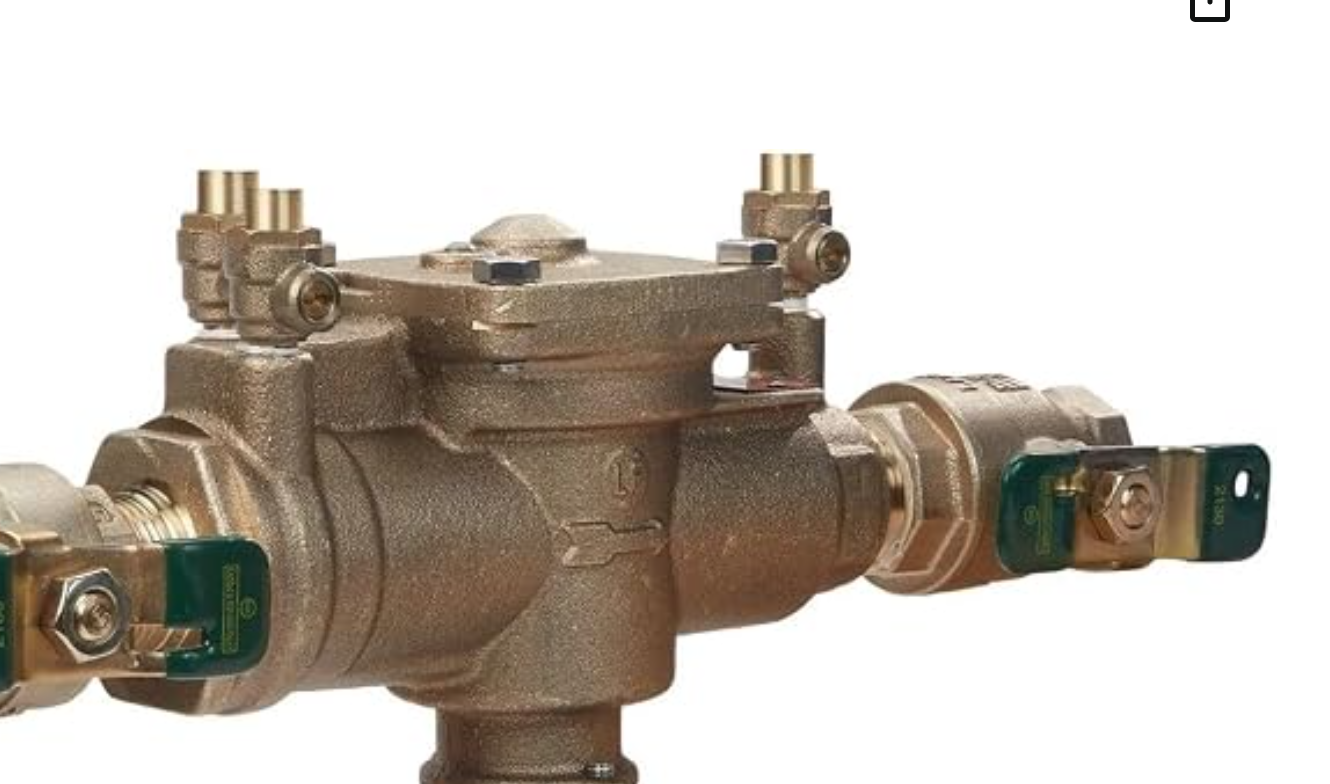

15) [Valve.BFP.RPZ.01]                     1" RPZ Backflow Preventer - 1

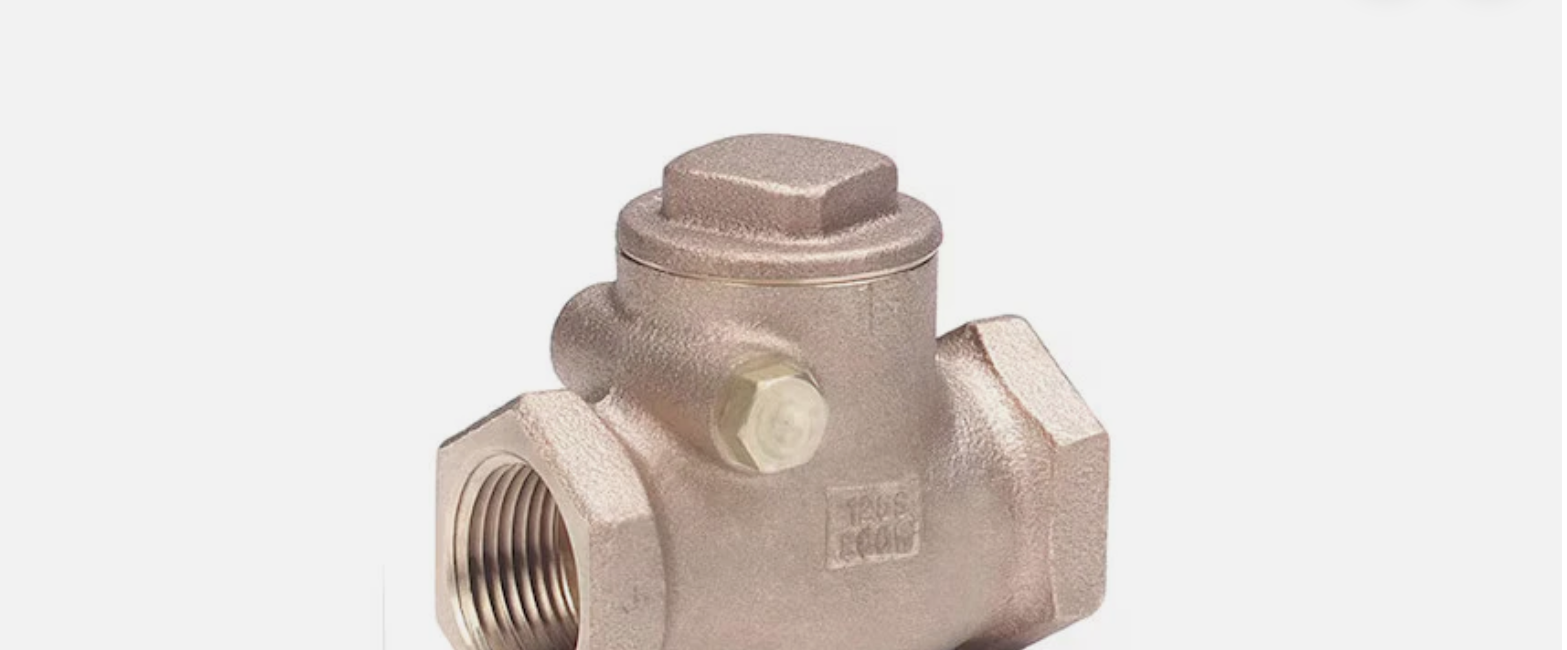

16) [Valve.Check.1.Swing]                 1" Brass Swing Check Valve - 1

What sets Gold apart from Silver: NSF-55 certified UV disinfection in place of standard UV, a dedicated Sediment Trapper stage ahead of the fine filter, NSF-53 certified carbon (rather than non-certified carbon), a 1" water meter for flow tracking, and continuous UV intensity monitoring via the sensor probe and meter.

17) [Valve.Actuated.2Way.1.24VAC/DC]   1" Electrically-Actuated 2-Way Control Valve, 1", 24VAC/DC - 1

Backflow preventer and check valve added for potable-plumbing code compliance (ARCSA). Control valve added for automated flow control.
