One of Largest Below Ground HDPE Tanks in America!
*NSF-61 / *Storm Water, Rain Harvesting, Sewage, Irrigation / *Qty 4 Manholes (24") / *Excellent Impact Strength

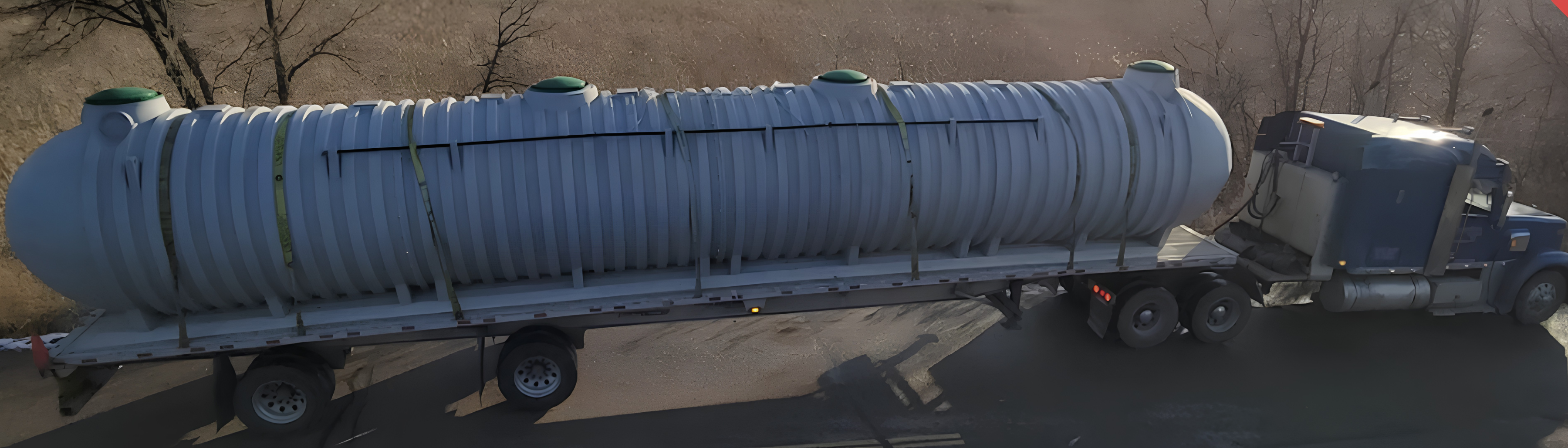

The Snyder 15,000 Gallon PN 41615 below ground tank is much lighter and easier to transport than concrete and can handle impact much better than fiberglass. The new 15k gallon below ground tank is NSF-61 certified for drinking water and doesn’t require special liners or coatings like other storage technologies.
Applications Include: storm water retention, rainwater harvesting, sewage and more.

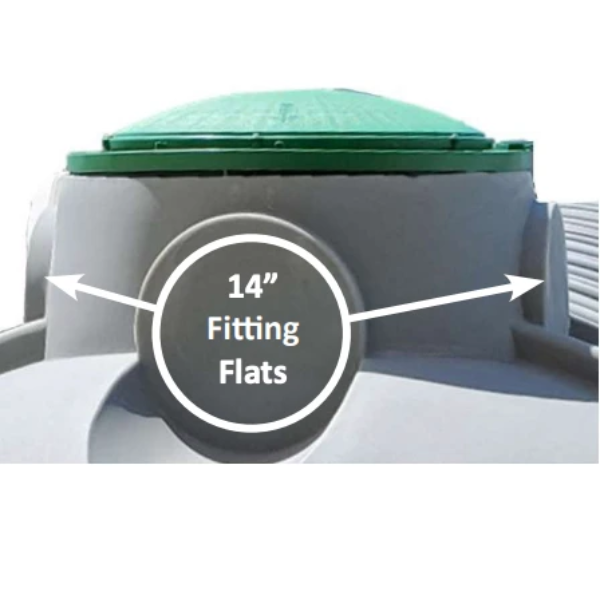

Features Include: generous fitting flats to accommodate large piping as well as lifting lugs for easy transport and tank installation.
*Note: These tanks are NOT rated for traffic.
xManufacturer Info
|
| PART # | 41615 |
|---|
| MANUFACTURER | Norwesco/Snyder/Bushman |
|---|
| MANUFACTURER WARRANTY | 3 Year Warranty |
|---|
| | |
|---|
| DOCUMENTS | Underground Water Tank FAQ |
|---|
| | 15K Gallon Underground Storage Tank Drawing |
|---|
| | |
|---|
| |
| Size Info |
| CAPACITY | 15000 Gallons |
|---|
| DIMENSIONS | 511" Length x 101" Width x 107" Height |
|---|
| WEIGHT | 3000 lbs |
|---|
| |
| Liquid Accessibility |
| LIQUID ACCESS | 3 Manways / Lids |
|---|

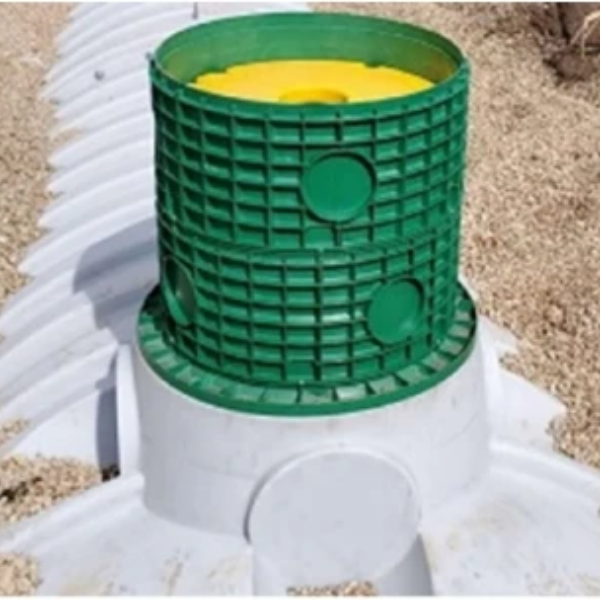

| MANWAY / LID 1 | 24" Manway Cover |
|---|
| |
| Resin Features |
| COLOR | Natural White |
|---|
| MATERIAL | Polyethylene |
|---|
| FDA APPROVED RESIN | Yes (Food Grade, Potable) |
|---|
| MAX TEMP ALLOWED | 120° F / 48° C |
|---|
| |
| Physical Features |
| PRODUCT TYPE | Underground Water Tank |
|---|
| BACKFILL | 25% Backfill Required |
|---|
| PREPLUMBED | No |
|---|
| | |
|---|
| ANSI / NSF 61 APPROVED RESIN | Yes |
|---|
| | |
|---|
| |
| Shipping Info |
| SHIPPING Warehouse | St. Bonifacius, MN |
|---|
| SHIPPING ZIP CODES | 55375 |
|---|
SHIPPING METHOD | 53' Step
|
|---|
Warranty 3 Years
