Rusco 2" 100 Mesh Spin-Down Filter
The Rusco 2” Spin-Down Sediment Filter – 150 Micron/100 Mesh is built for high-volume water filtration, delivering dependable performance in agricultural, industrial, and large residential systems. With a 150-micron (100 mesh) polyester screen, this filter effectively removes medium to large sediment particles like sand, grit, and silt—protecting your pumps, valves, and downstream filters.
Designed for easy maintenance, the spin-down action forces sediment to settle at the bottom of the filter housing, where it can be quickly flushed out via the bottom valve—no disassembly required. The clear, impact-resistant housing makes it easy to monitor buildup, and the 2-inch NPT connections handle higher flow rates with minimal pressure drop.
What Is A Micron Rating?

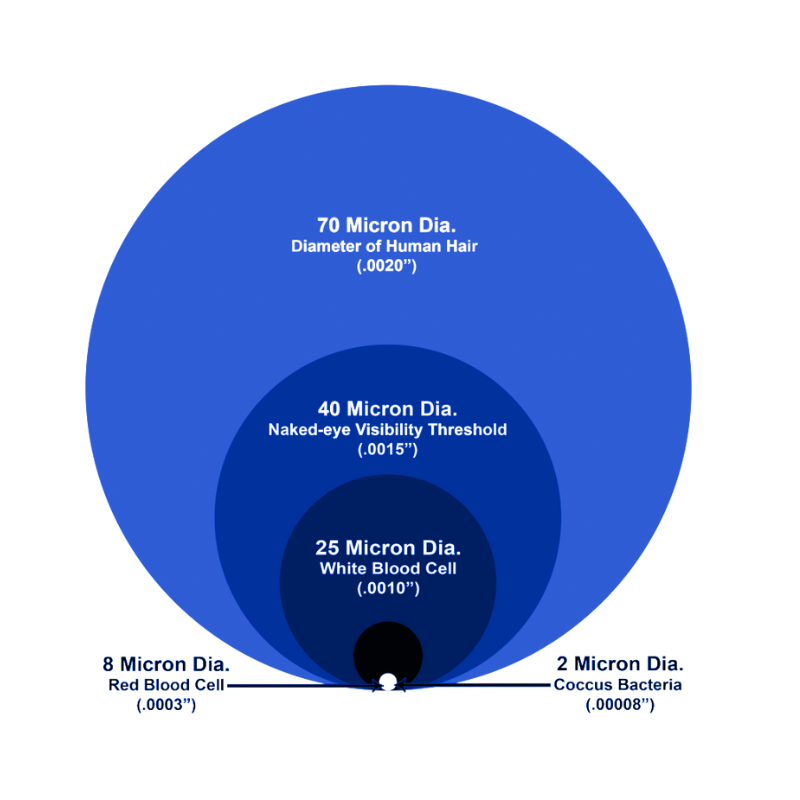

A micron is short for micrometer or one millionth of a meter. As a unit of measure, it describes the size of a particle. A micron rating describes the size of particles that the filter will allow to pass through. So a 150 micron rated filter will not allow anything larger than 150 microns to pass through.
Documentation:
A micron is short for micrometer or one millionth of a meter. As a unit of measure, it describes the size of a particle. A micron rating describes the size of particles that the filter will allow to pass through. So a 150 micron rated filter will not allow anything larger than 150 microns to pass through.
Product Details
Key Features
Medium-Level Filtration: 150-micron screen captures visible sediment and debris
Reusable & Cleanable Design: Flush valve system allows for fast, tool-free cleaning
High-Flow Capacity: Ideal for 2-inch lines in irrigation, well water, and commercial systems
Clear, Durable Housing: Easy visual inspection and long-term durability
Quick Installation: Standard 2” NPT connections for high-volume systems
Specifications
Model: Rusco 2” Spin-Down Sediment Filter
Micron Rating: 150 Micron
Mesh Size: 100 Mesh
Material: Polyester filter screen, impact-resistant plastic housing
Connection Size: 2-inch NPT
Maximum Flow Rate: Up to 100 GPM (gallons per minute)
Maximum Operating Pressure: 100 PSI
Operating Temperature Range: 35°F – 100°F
Dimensions
Height: 15.25 inches
Width: 6 inches
Inlet/Outlet Diameter: 2 inches NPT
Weight: Approximately 2.5 lbs
