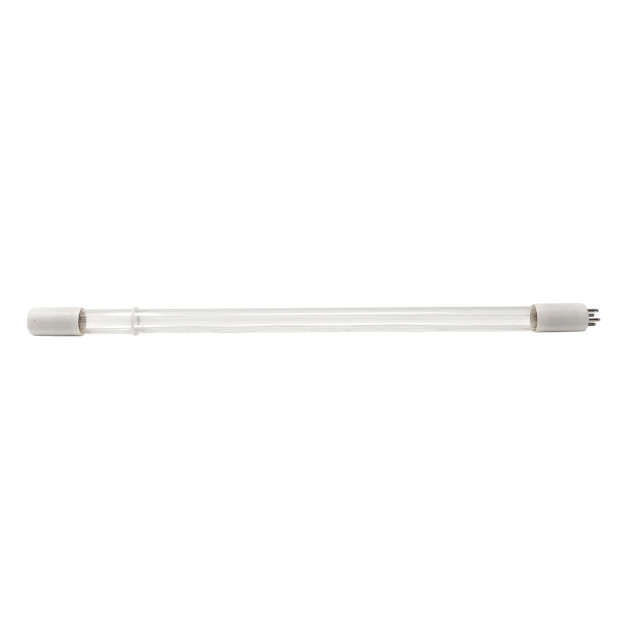

UV-Bulb.PFC.08 – Replacement UV Lamp for ATS PFC-8 System
The UV-Bulb.PFC.08 is a high-quality replacement ultraviolet (UV) lamp designed for the Aqua Treatment Service (ATS) PFC-8 water disinfection system. This 22-watt germicidal bulb ensures effective sterilization, eliminating up to 99.9% of harmful microorganisms in water without the use of chemicals.
$86.00
Choose Quantity :
Product Information
Product Details
🔍 Key Specifications
- **Model:** UV-Bulb.PFC.08
- **Compatibility:** Aqua Treatment Service PFC-8 system
- **Wattage:** 22 Watts
- **Voltage:** 120 Volts
- **Base Type:** G10Q-4 (4-pin square base)
- **Lamp Shape:** T5
- **Total Length:** 17.72 inches (450 mm)
- **Arc Length:** 14.57 inches (370 mm)
- **Lamp Diameter:** 15 mm
- **Operating Current:** 425 mA
- **Lamp Voltage:** 15.53 V
- **UVC Output:** 6.6 Watts
- **UV Intensity @ 1m:** 62 µW/cm²
- **Peak UV Output:** 253.7 nm
- **Glass Type:** Non-ozone producing
- **Rated Life:** Up to 10,000 hours
🛠️ Standard Inclusions
- UV-Bulb.PFC.08 replacement lamp
- Installation instructions
🌿 Applications Suitable for:
- Aqua Treatment Service PFC-8 UV disinfection systems
- Residential and commercial water purification
- Well water treatment
- Rainwater harvesting systems
📄 Certifications & Compliance
- Complies with industry standards for UV germicidal lamps
- Manufactured by reputable suppliers ensuring quality and reliability
🚚 Shipping & Handling
- **Shipping Dimensions:** 18" L × 2" W × 2" H
- **Shipping Weight:** Approximately 0.5 lbs (0.23 kg)
- **Packaging:** Securely boxed with protective materials
- **Delivery:** Standard ground shipping
