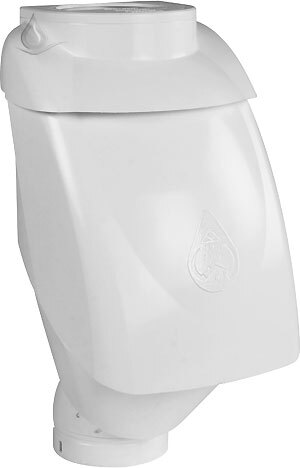

Rain Harvesting RHUL100 Leaf Eater Ultra Rain Head, 3" & 4" Round Dual-fit
───────────────────────────────────────────────────────────────────────────
Product Overview
The Rain Harvesting Leaf Eater Ultra™ is a high-performance rain head designed for superior leaf filtration in medium to high rainfall areas. Its angled stainless steel mesh screen ensures optimal debris shedding, while the compact, durable body makes it ideal for tight installations. Built-in mosquito-proof mesh and pivoting VH outlet increase versatility and protection in residential and commercial rainwater harvesting systems.
The Rain Harvesting Leaf Eater Ultra™ rain head is the ultimate in innovation, design and performance, featuring the new Hydro Activated Filtration™ technology and revolutionary VH Pivot™ outlet.
THE ULTIMATE IN INNOVATION, DESIGN AND PERFORMANCE
The Leaf Eater Ultra™ Rain Head prevents debris from entering the Rain Harvesting system, improves water quality and reduces tank maintenance.
Innovative Filtration & Debris Shedding Technology
|  |
Product Description:
The Leaf Eater Ultra™ uses the Leaf Slide which deflects debris away from the screen and a precisely angled screen which directs leaves and debris away from the flow of water to maximise catchment efficiency. This Rain Head also incorporates a VH Pivot™ outlet that swivels to suit vertical or horizontal downpipes. The Leaf Eater Ultra™ can also be used as a debris removing device even when rainwater is not being collected.
Features and Benefits:
Leaf Eater Ultra™ is a combination of a modern, sleek design and the latest in Rain Head technology – the ultimate in Rain Heads- Integrated cover and cap to complement modern and classic architecture

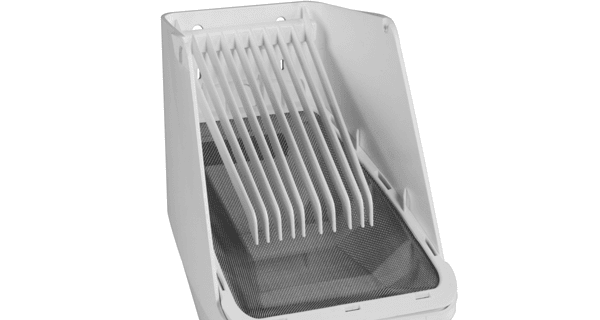

- Leaf Slide and a precisely angled screen deflects debris off the screen for high flow rate performance. (Hydro Activated Filtration™ technology)
- A single mosquito proof stainless steel mesh screen with 0.955mm aperture
- Minimal maintenance required

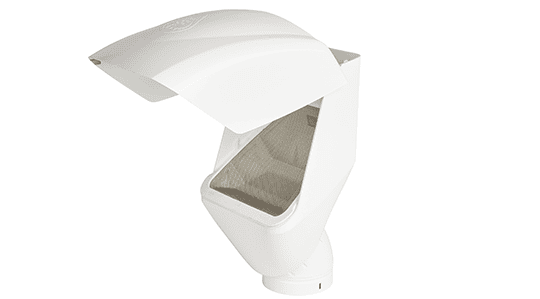

- Pivot the outlet to suit either vertical or horizontal (rear outlet) downpipes (VH Pivot™)
- Maximizes the catchment efficiency at low and high flow rates
- Available in 3" or 4" outlets
 |  |
Choose Quantity :
Product Information
Product Details
- Key Specifications• Pipe Compatibility: 3" and 4" round downpipes (Schedule 40 or SDR)• Screen Type: Angled stainless steel mesh• Screen Aperture: 0.955mm (1/32")• Features: VH Pivot™ rear outlet, mosquito-proof mesh, removable cover• Dimensions: 17.4" H × 8.1" W × 9" D• Weight: 3lbs• Color: Grey• Material: UV-stabilized polypropylene and stainless steel───────────────────────────────────────────────────────────────────────✅ Benefits• Superior Debris Filtering – Captures leaves and organic matter before reaching your tank• Mosquito-Proof – Stops mosquitoes, spiders, and insects with fine stainless steel mesh• Easy Maintenance – Hinged screen lifts easily for quick cleaning• Versatile Install Options – VH Pivot™ outlet allows horizontal or vertical setup• Improves Water Quality – Prevents contamination and reduces tank sediment buildup• Durable & UV-Stable – Built for longevity in outdoor conditions• Ideal for Tight Spaces – Slim profile fits under eaves or wall-mounted systems───────────────────────────────────────────────────────────────────────Installation Overview1. Cut downpipe below gutter outlet to fit the rain head2. Insert rain head with VH Pivot™ set to vertical or rear outlet3. Mount securely to wall using included mounting guides4. Ensure screen is seated properly and accessible for maintenance───────────────────────────────────────────────────────────────────────Shipping & Handling• Shipping Dimensions: 17.4" × 8.1" × 69"• Shipping Weight: 3lbs• Ships From: United States• Delivery Method: Standard ground service
