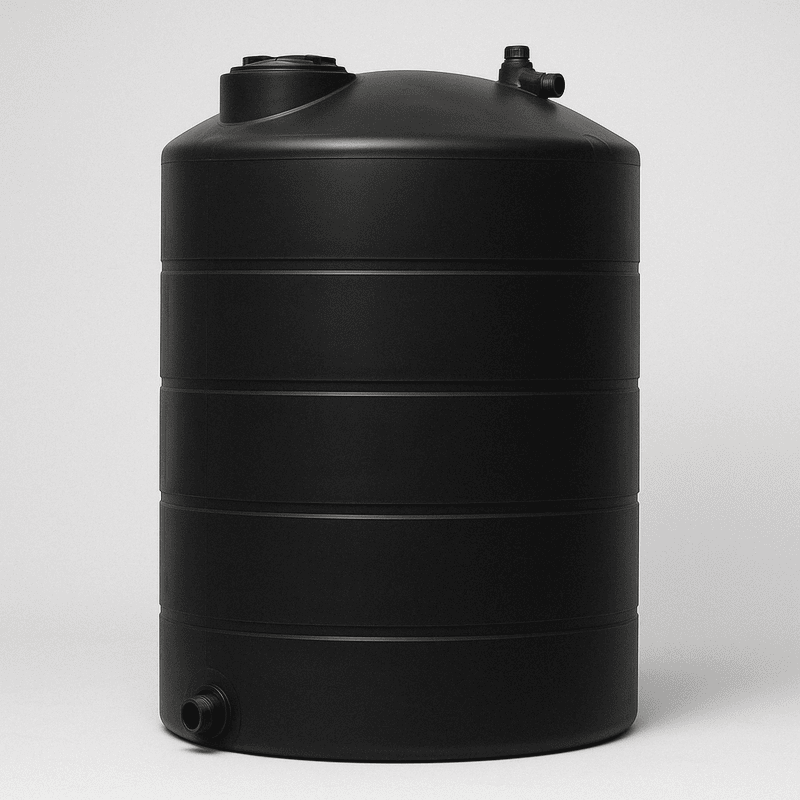

Snyder Industries 3000 Gallon Black Tall Water Tank - PN: 5130100W94303
💧 Large black polyethylene vertical tank for above‑ground potable water, rainwater harvesting or irrigation storage
🛠️ Product Overview
The Snyder Industries 3000 Gallon Vertical Water Storage Tank (PN 5130100W94303) is engineered for versatile use in above‑ground applications including potable water, irrigation, fire suppression reserve or rainwater harvesting. Constructed from UV‐stabilized, FDA/NSF‐compliant virgin polyethylene resin, the tank’s black opaque color inhibits algae formation by blocking sunlight. Its seamless, rotationally‑moulded construction ensures high durability and low maintenance. With the 3000 gal capacity, this model is designed for efficient vertical footprint in residential or commercial spaces.
📞 Contact us for freight quote and lead time
Product Details
📏 Key Specifications
Capacity: 3000 gallons
Model / Part Number: 5130100W94303
Diameter: 90″ (inches)
Height: 125″ (inches)
Material: High Density Polyethylene (HDPE), virgin resin, UV‑stabilized, food grade (FDA 21 CFR 177.1520)
Color: Black (opaque)
Inlet / Outlet / Access: 1.5″ bulkhead inlet, 2″ outlet, 18″ manway (based on listing for this size)
Specific Gravity Rating: 1.0 (for water storage)
Certifications: Resin manufactured in NSF certified plant; suitable for potable water use
Installation Notes: Above ground use only; ensure level base and proper venting to comply with warranty
🚚 Shipping & Handling
Shipping Method: LTL freight (freight class approx. 400)
Shipping Weight: Approx. 405 lbs (listing for comparable 3000 gal model)
Packaging: Ship as one unit, ready for placement; ensure handling equipment suitable for size/weight
Installation: Requires level, compacted base or engineered concrete pad; venting must limit internal pressure to safe level (< ½″ water column) for warranty compliance
