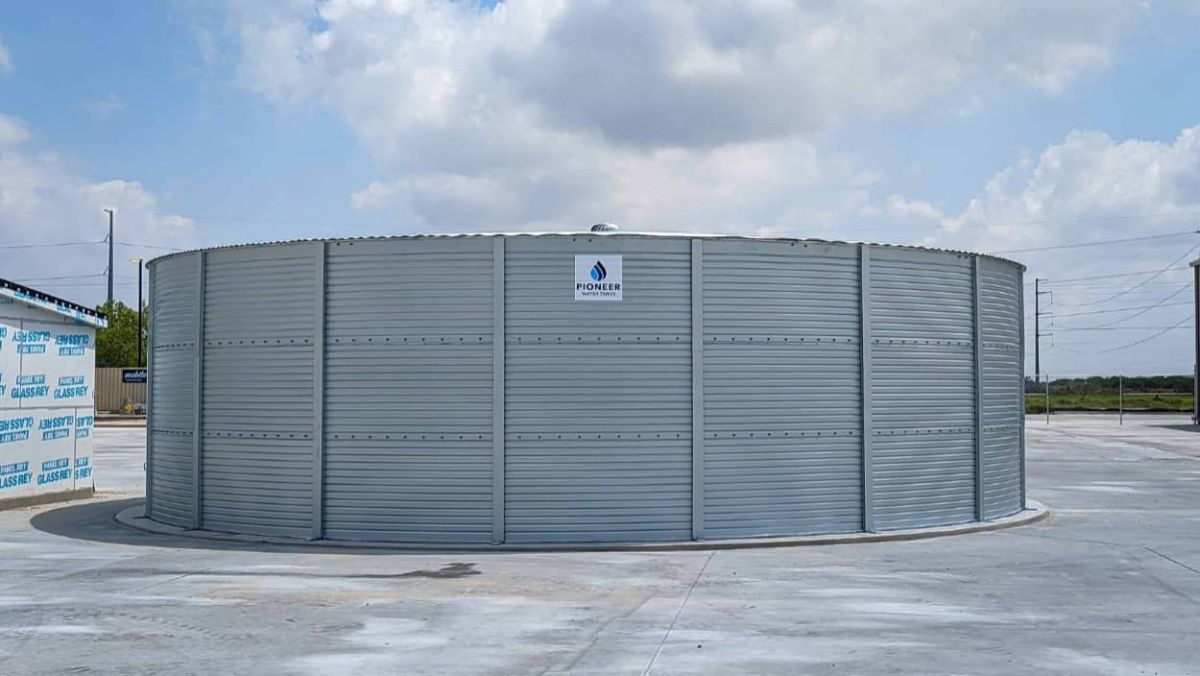

Pioneer Water Tanks XLE50/3 – 97,000 Gallons
The Pioneer XLE50/3 Water Storage Tank is a heavy-duty commercial solution offering a massive 97,000-gallon nominal capacity and 87,848 gallons of usable storage. Designed with Zincalume® steel and equipped with the AQUALINER® Fresh antimicrobial liner, this tank is ideal for fire protection, agricultural, or industrial water storage. The kit includes all structural, access, and liner components, with standard engineering drawings provided.

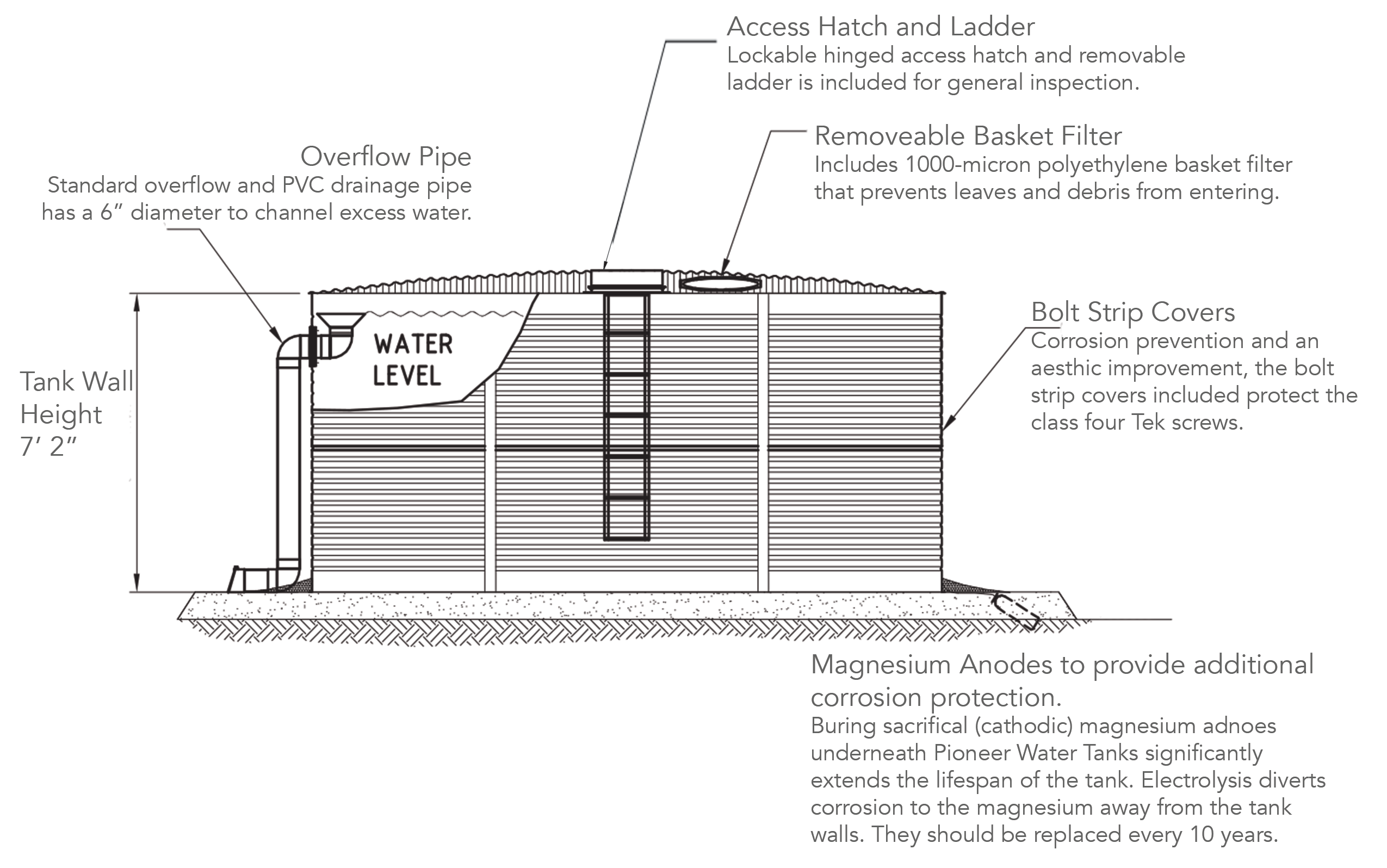

STANDARD INCLUSIONS
AQUALINER® FRESH
The first antimicrobial tank liner in the world, our exclusive five-layer AQUALINER® Fresh keeps your water fresher for longer with embedded Sanitized® Silver technology. With a life expectancy of 65 years, the AQUALINER® Fresh is designed to fit the Pioneer Water Tank to prevent contamination.
GEOTEXTILE UNDERLAY
Our geotextile underlay is the ideal way to protect your AQUALINER® Fresh from being compromised by sharp objects that may be caught inside your water tank.
SUPER SEAL
Reduce the number of contaminants to protect your precious water supply with Pioneer Water Tanks’ high-density foam sealer.
SACRIFICIAL ANODES
Our sacrificial magnesium anodes significantly extend the life of your water tank by protecting the tank from corrosion. Made from magnesium, the anodes erode in place of the water tank, thereby protecting the steel and allowing the tank to last longer than other systems. Pioneer Water Tanks recommend your anodes be replaced every 10 years so you can enjoy the benefits of your tank for life.
6-INCH DIAMETER OVERFLOW
Pioneer Water Tanks provides a 6” diameter overflow downpipe, the largest overflow system on the market. The overflow size moves excess water away from the tank quickly to effectively reduce pressure on your tank and avoid costly damage to your tank components.
$52,000.00
Choose Quantity :
Product Information
Product Details
📄 Key Specifications
Model: XLE50/3
Nominal Capacity: 97,000 Gallons
Usable Capacity: 87,848 Gallons
Diameter: 39′ 6″
Height: 10′ 7″
Material: Zincalume® Steel
Liner: AQUALINER® Fresh with Geotextile Underlay
Roof: Includes trusses, roof sheets, and top hoop
Anchoring: Bottom hoop and anchor system included
Overflow: 6″ overflow pipe
Access: Lockable roof access hatch and removable ladder
Engineering: Standard drawings included (site-specific stamped designs available upon request)
🌿 Features
• Full commercial-grade tank kit with all structural and access components
• Antimicrobial liner maintains clean water and inhibits algae/bacteria growth
• Heavy-duty Zincalume® steel resists corrosion and weather exposure
• Designed for long-term service in critical storage applications
• Modular construction for efficient transport and on-site assembly
🔧 Applications
• Fire protection reserve (NFPA-adaptable with proper fittings)
• Agricultural irrigation and livestock watering
• Municipal or industrial water supply systems
• Rainwater and stormwater harvesting infrastructure
🚚 Shipping & Handling
Ships via freight (not included in base price)
Components packed and labeled on multiple pallets/skids
Shipping weight: ~5,000–6,000 lbs
Includes installation guide and standard engineering documents
