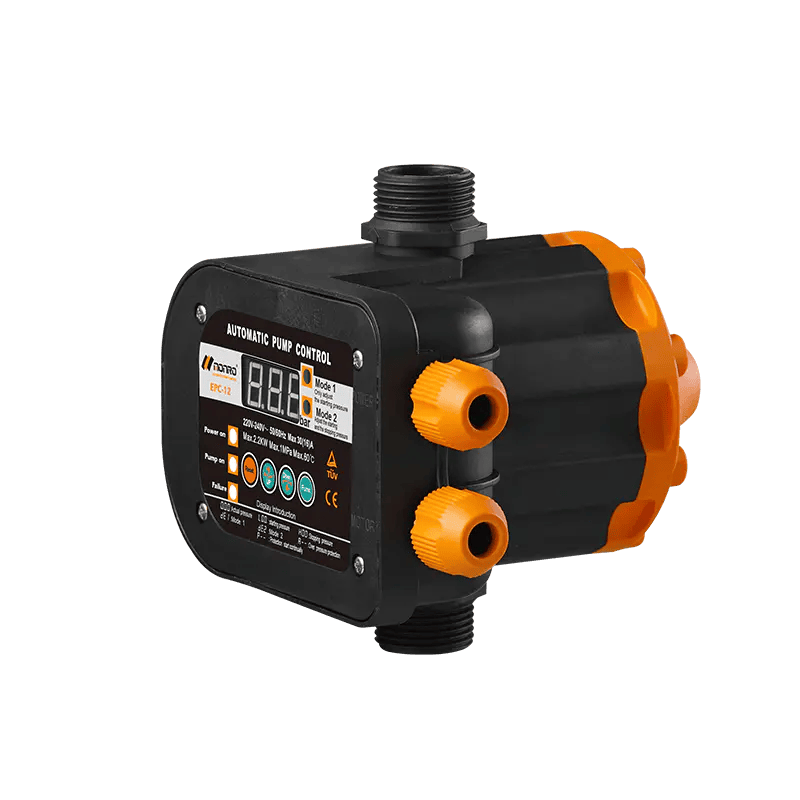

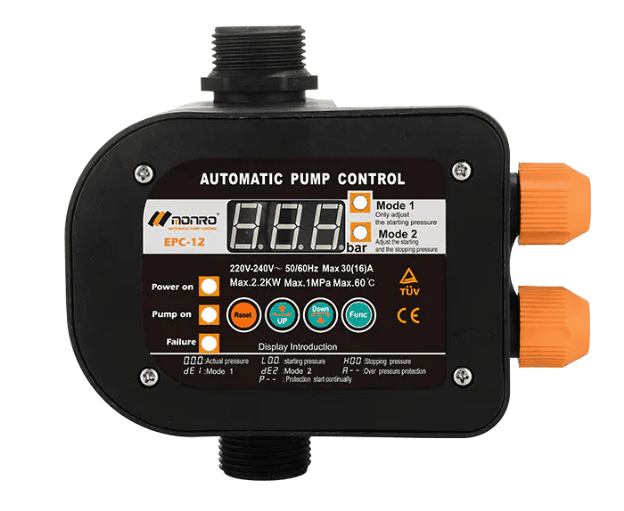

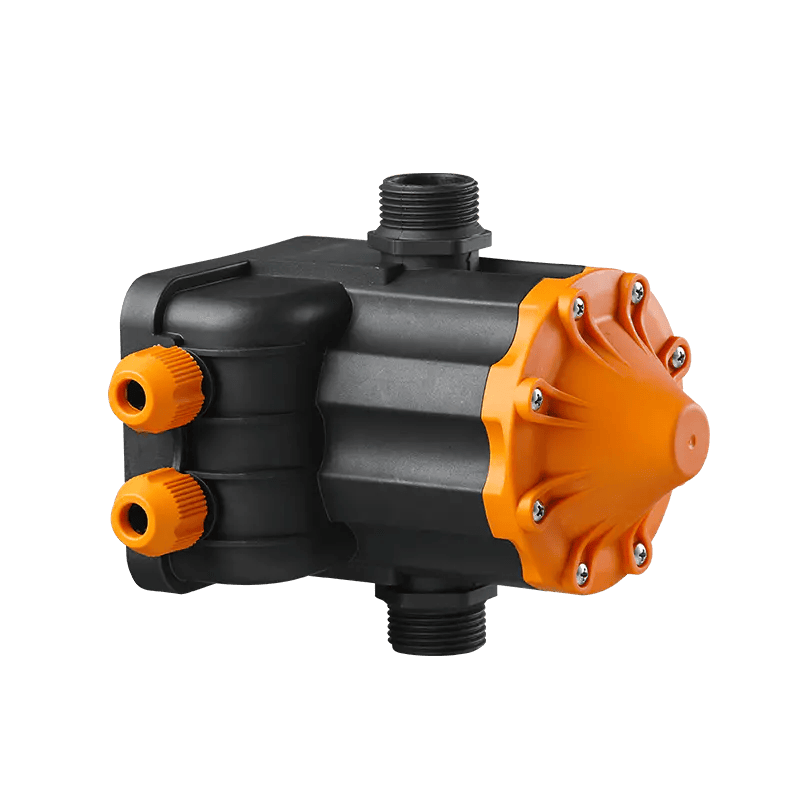

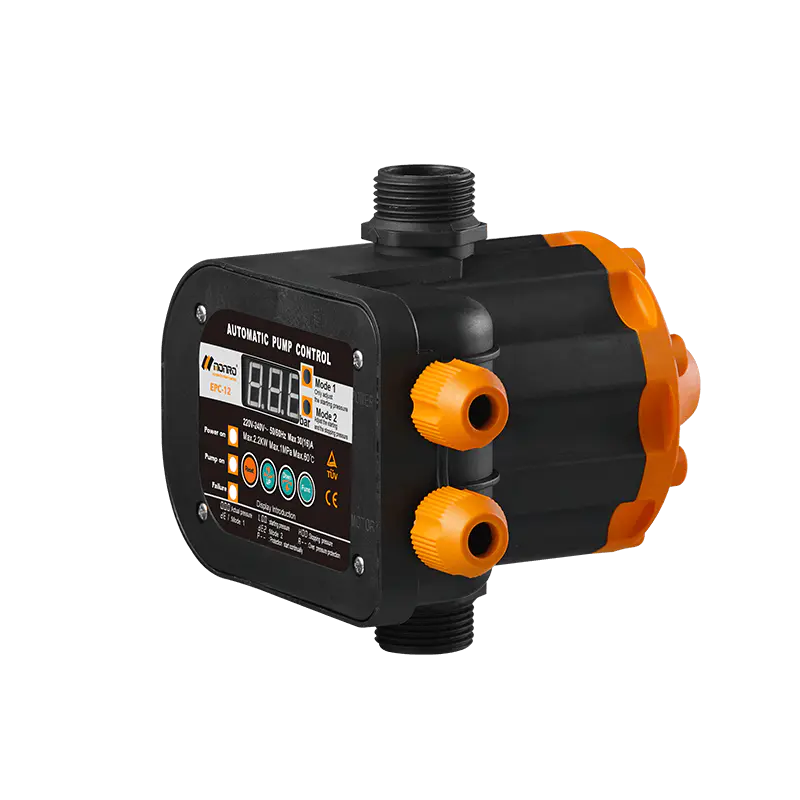

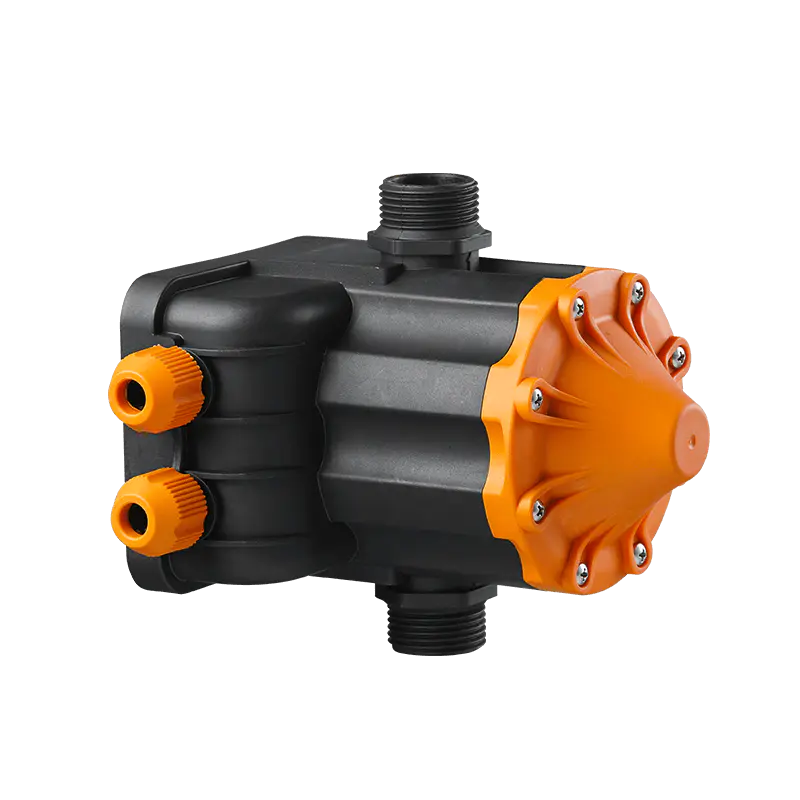

EPC 12 Pump Controller 120V1.5HP/240V 3HP
The EPC 12 is a versatile electronic pump controller built for 120V and 240V systems. It manages pump operation based on system demand, with adjustable pressure setpoints and dry-run protection. This version does not include a pressure tank and is ideal for custom setups where a separate tank is used.
Product Details
🔍Key Specifications
Part Number: EPC-12
Voltage: 120V (up to 1.5 HP) / 240V (up to 3 HP)
Connection Size: 1"
Max Starting Pressure: 97 PSI
Max Shutoff Pressure: 145 PSI
Start/Stop: Flow-initiated start, adjustable stop pressure
Run-Dry Protection: Yes, with automatic reset
Check Valve: Integrated
Tank Requirement: External tank recommended
Weight: Approx. 3.5lbs
🛠️ Standard Inclusions
Electronic pump controller (no tank)
Built-in check valve
Adjustable pressure start/stop setpoints
Replaceable internal components
Pre-wired for plug-and-play installation
🌿 Applications Suitable for:
Booster pump control
Domestic and agricultural water systems
Rainwater and cistern systems
Irrigation setups with external tanks
📄 Certifications & Compliance
CE certified
Meets water system safety and durability standards
Built for long service life with replaceable parts
🚚Shipping & Handling Notes
Shipping Dimensions: 9" L × 7" W × 6" H
Shipping Weight: Approx. 3.5lbs
Packaging: Boxed with protective inner foam
Delivery: Ships via standard ground
