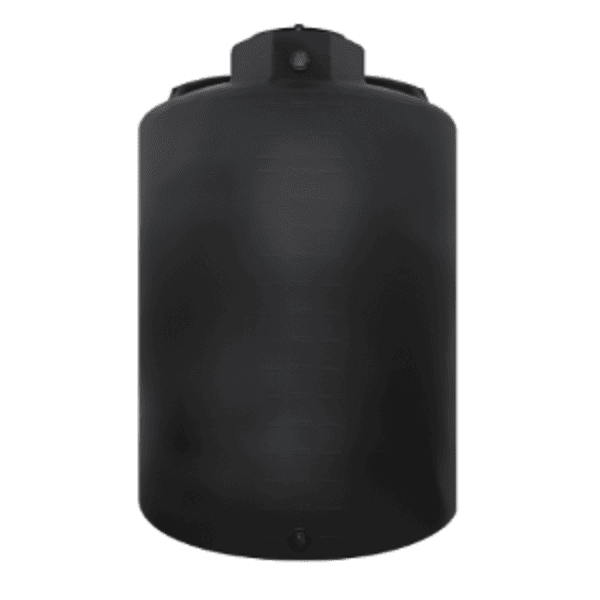

Snyder Industries 3500 Gallon Black Vertical Water Tank - PN 32294
🛠️ Product Overview
The Snyder Industries 3500 Gallon Vertical Water Storage Tank is manufactured from FDA-approved, food-grade polyethylene using a seamless rotational molding process for maximum durability and leak resistance. The black UV-stabilized exterior helps reduce algae growth while providing long-term outdoor performance. Ideal for residential, commercial, agricultural, and fire suppression water storage applications.
📏 Key Specifications
- Capacity: 3,500 Gallons
- Diameter: 96 Inches
- Height: 125 Inches
- Weight: 535 lbs
- Material: High-Density Polyethylene (HDPE)
- Color: Black
- Specific Gravity Rating: 1.0 (Water Storage)
- Maximum Temperature: 120°F
- Manway: 26" Threaded Vented Lid
- Inlet Fitting: 1½" FNPT Bulkhead Fitting
- Outlet Fitting: 2" FNPT Bolted Bulkhead Fitting
- Gallon Markings: Molded-In Volume Indicators
- Certifications: FDA CFR 177.1520 & NSF/ANSI 61 Compliant
- Design: Vertical, One-Piece Construction
- Installation: Above-Ground Use Only
🚚 Shipping & Handling
- Shipping Dimensions: 96" Diameter × 125" Height
- Shipping Weight: 535 lbs
- Freight Class: 400
- Truckload Quantity: 5 Tanks Per Truckload
- Liftgate Delivery: Not Available Due To Size Restrictions
- Ships From: Merced, CA • Shawnee, OK • Albertville, AL
| Technical Documents | |
|---|---|

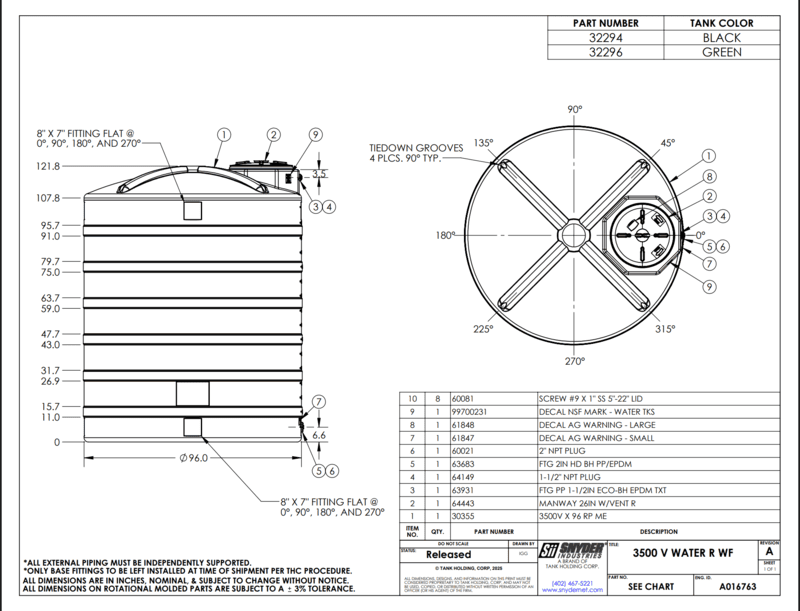

| View Technical Drawing | |
| NSF Certification | |
| FDA Statement | |
| Warranty Statement | |
Product Details
Snyder Industries is part of the leading manufacturers of tank and containment solutions relating to industrial and agricultural applications. Since its beginning in 1957, Snyder Industries has been providing products that are top of the line providing cost-effective application and bulk handling container solutions to customers throughout North America and beyond.
Vertical water storage tanks are used in a variety of applications, such as
Rainwater collection.
Well water storage.
Fire suppression.
Bulk water delivery storage.
Snyder 3500 Gallon Plastic Water Storage Tank
Constructed with durable, rotationally molded polyethylene resin, ensuring resistance to cracks, chips, and ruptures.
Built with materials that meet FDA standards for safe-food grade storage, ensuring compliance and safety.
Equipped with UV inhibitors to protect liquid contents from direct sunlight, suitable for indoor and outdoor use.
The black or dark green color prevents light penetration, reducing the growth of algae in the water.
Vertical Plastic Water Tanks are for storage and are not designed to be pressurized.
| Dimensions | |
|---|---|
| Diameter | 96" |
| Length | 96" |
| Width | 96" |
| Height | 125" |
| Weight | 535lbs |
| Inlet | 1.5 |
| Outlet | 2 |
| Lid Size | 26" |
| Key Specs | |
|---|---|
| Manufacturer | Snyder Industries |
| Color | Black |
| Gallon Capacity | 3500 |
| Gallon Indicators | 1 |
| Specific Gravity | 1 |
| Material | High Density Linear Polyethylene |
| Max Temperature | 120 F/ 48 C |
| Certifications & Compliances | ANSI / NSF 61 Approved, FDA Approved |
| Warranty | 3 years |
