Pioneer Water Tanks XLR15/02 – 20,243 Gallons
The Pioneer 2202 is a 20,243-gallon Zincalume® steel water storage tank built for durability and safe potable water storage. It includes the AQUALINER® Fresh antimicrobial liner with a geotextile underlay, a full roof system, lockable access hatch, removable ladder, 6″ overflow, 2″ bottom outlet, basket filter, and corrosion-resistant sacrificial anodes. The package also features a complete PWTA-approved component kit and a hold-down system for added wind resistance. Ideal for residential, agricultural, and commercial water storage or fire protection.
STANDARD INCLUSIONS
AQUALINER® FRESH
The first antimicrobial tank liner in the world, our exclusive five-layer AQUALINER® Fresh keeps your water fresher for longer with embedded Sanitized® Silver technology. With a life expectancy of 65 years, the AQUALINER® Fresh is designed to fit the Pioneer Water Tank to prevent contamination.
GEOTEXTILE UNDERLAY
Our geotextile underlay is the ideal way to protect your AQUALINER® Fresh from being compromised by sharp objects that may be caught inside your water tank.
SUPER SEAL
Reduce the number of contaminants to protect your precious water supply with Pioneer Water Tanks’ high-density foam sealer.
SACRIFICIAL ANODES
Our sacrificial magnesium anodes significantly extend the life of your water tank by protecting the tank from corrosion. Made from magnesium, the anodes erode in place of the water tank, thereby protecting the steel and allowing the tank to last longer than other systems. Pioneer Water Tanks recommend your anodes be replaced every 10 years so you can enjoy the benefits of your tank for life.
6-INCH DIAMETER OVERFLOW
Pioneer Water Tanks provides a 6” diameter overflow downpipe, the largest overflow system on the market. The overflow size moves excess water away from the tank quickly to effectively reduce pressure on your tank and avoid costly damage to your tank components.
The 20,000-Gallon Pioneer Water Tank is approved for residential and commercial water storage needs. The 20,000-Gallon standard model water tank is ready for onsite delivery and installation within two weeks.
Our 20,000-Gallon water storage tanks can come turnkey ready or can be configured to your project needs, including for fire protection. Our wide range of commercial accessory options can make your water supply multifunctional for your requirements.
$18,360.00
Choose Quantity :
Product Information
Product Details

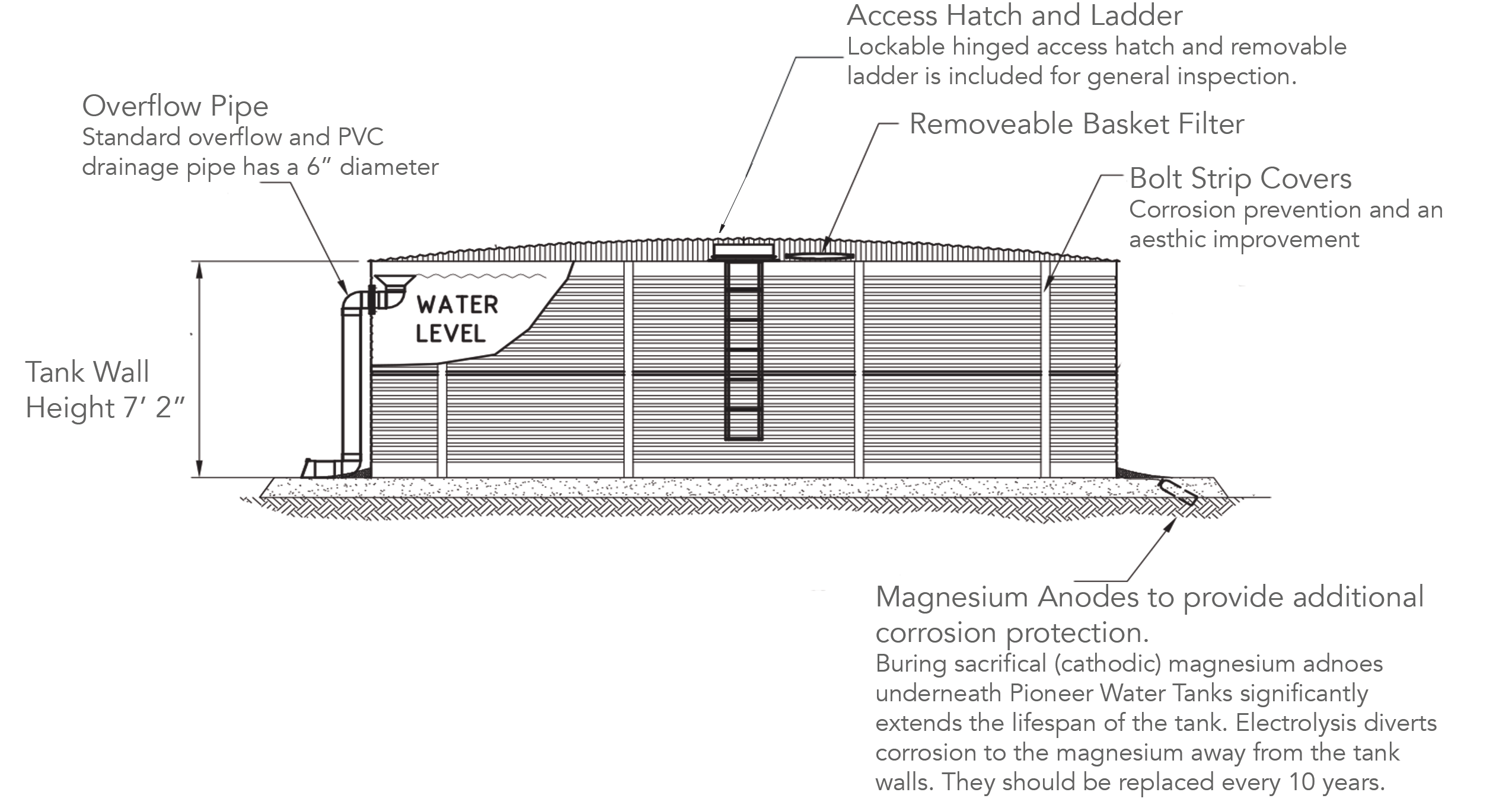

📐 Key Specifications
- Model: 2202
- Capacity: 20,243 gallons (US)
- Diameter: 22′ 0″ (6.71 m)
- Wall Height: 7′ 2″ (2.18 m)
- Material: Zincalume® corrugated steel (Silver finish)
- Liner: AQUALINER® Fresh antimicrobial liner
- Underlay: Geotextile base protection
- Overflow: 6″ diameter
- Outlet: 2″ bottom outlet with ball valve
- Access: Lockable hatch and removable ladder
- Roof: Full structural truss system
- Corrosion Protection: Sacrificial magnesium anodes
- Extras: Basket inlet filter, hold-down kit, and full PWTA-specified components
- Certifications: NSF/ANSI-61 compliant; NFPA-rated
- Warranty: 20-year conditional warranty
🚚 Shipping & Handling
- Packaging: Flat-packed kit for on-site assembly
- Delivery: Freight shipping; requires forklift or crane offload
- Lead Time: Typically 10-12 weeks
- Return Policy: Non-returnable — verify all dimensions and use cases prior to ordering
