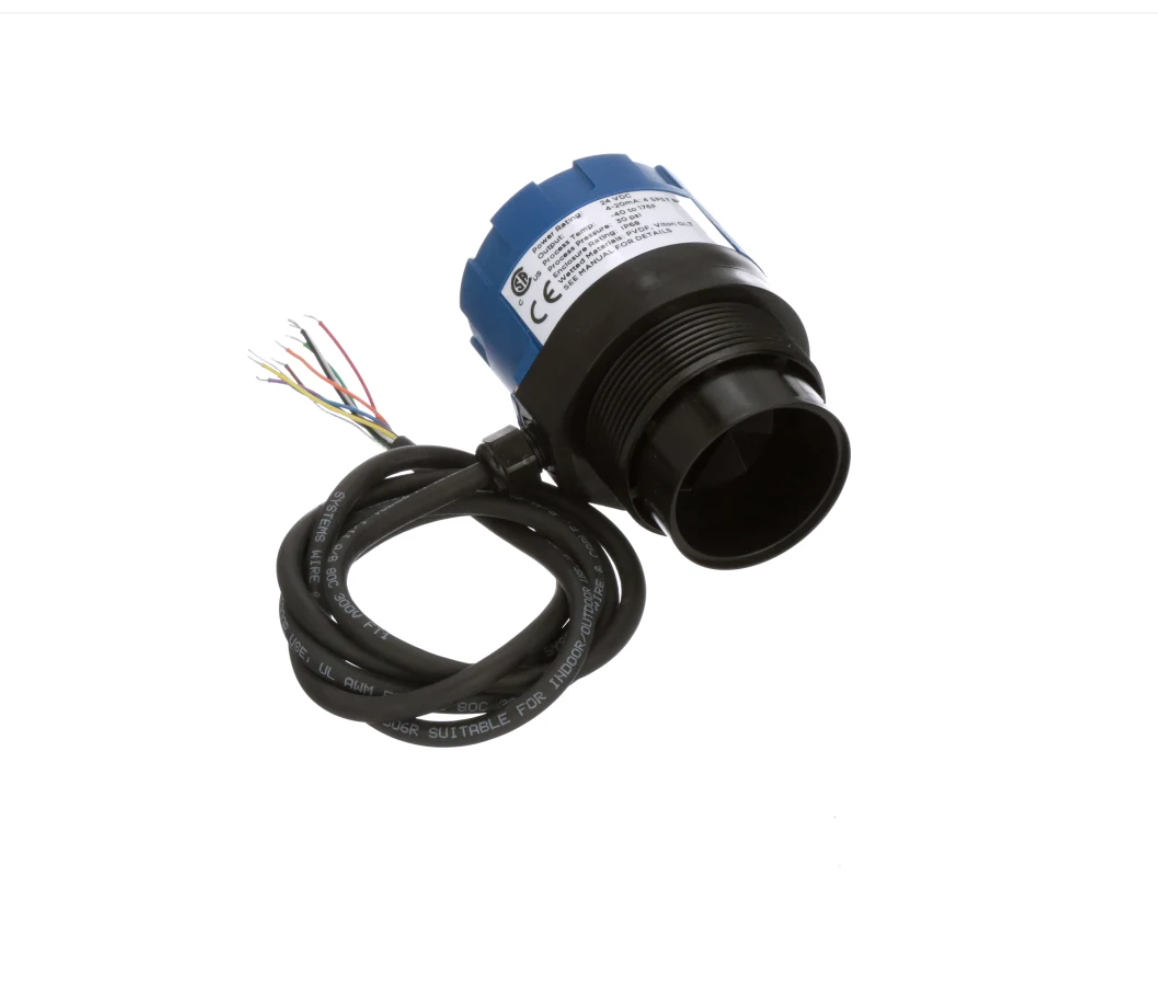

Reflective Ultrasonic Level Sensor, 3 m Range, 2" NPT, 4 Relays w/Fob
The UG03-0001-41 is a robust ultrasonic liquid level sensor and transmitter, engineered for tanks, sumps, and open-channel applications. It features a reflective ultrasonic transducer for enhanced measurement in challenging conditions such as vapor or condensate. With a range of up to 3 m (9.8 ft), it integrates 4 programmable SPST relay outputs for direct pump, valve, or alarm control. A supplied wireless programming fob simplifies on-site setup and adjustments, eliminating the need for manual calibration tools.
Product Details
📏 Key Specifications
Model Number: UG03-0001-41
Measurement Range: 0.3 ft to 9.8 ft (0.1 m to 3 m)
Sensor Type: Reflective ultrasonic
Process Connection: 2" NPT (male)
Output:
(4) SPST relay outputs (programmable for alarms, pumps, valves)
Optional 4-20 mA analog output (model dependent; confirm at order)
Programming: Remote fob included for wireless setup & calibration
Power Supply: 12–28 VDC (verify spec)
Accuracy: Typically ±0.25% of full scale
Housing: NEMA 4X / IP65 corrosion-resistant enclosure
Operating Temp: -4 °F to +140 °F (-20 °C to +60 °C)
Approvals: CE compliant
🚚 Shipping & Handling
Packaging: Individually boxed with fob and installation manual
Shipping Weight: ~3 lbs
Shipping Method: Standard parcel service (FedEx / UPS)
Lead Time: Typically 2–3 weeks (verify at quote)
Installation Notes: Mount on top of tank via 2" NPT; ensure unobstructed path to liquid surface for accurate reflection.
