How much water to divert

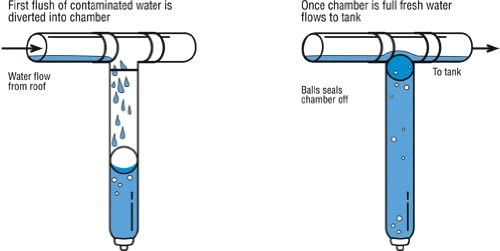

It is important to prevent heavy sediments and other roof pollutants from entering the rainwater tank/cistern. The amount of water diverted should be a minimum of 12.5 gallons per 1000 square feet of roof area (or 0.0125 gallons per square foot). In calculating the amount of water to divert, consideration can be given to (1) the surface area of the roof, and (2) the amount of pollutants on the roof and gutters. The following factors can be used as a guide in determining the volume of water to be diverted. As a rule of thumb, the more water that is diverted the better the quality of water in the tank/cistern.
Installation Instructions

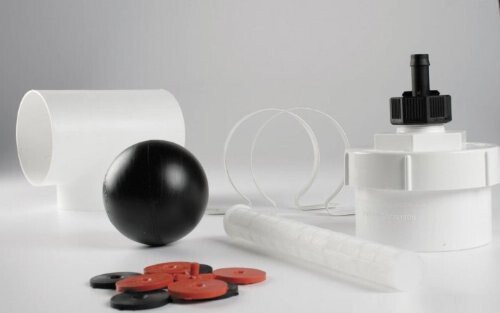

- Determine the length of Diverter Chamber #4. Consider as a guide that each 3 foot section of 3" Schedule 40 PVC pipe holds approx. 1.5 gallons of water.
Fit the longest length of pipe possible, making sure the Screw Cap #10 is at least 6" from the ground to allow for removal and cleaning. - Place the ball Seat #9 into the Tee Junction #6 ensuring the narrow end of the ball seat points down into the Diverter Chamber #4. Apply glue to the Diverter Chamber #4 and fit up against the Ball Seat #9 and hold until the glue sets. (Optional: Use a 45º bend adapter to allow easier removal of the Screw Cap #10). Glue the Socket #14 to the bottom end of the Diverter Chamber #4.
- Fix the assembled chamber directly to the wall in the desired position using the Wall Brackets.
- Connect a Male & Female (M&F) Elbow #8b (if required) to the Chamber Outlet #8 and connect the downspout #3. Fit an elbow to the InFeed pipe #2 (if required) and connect to the bottom of the selected rain head.
- Select the appropriate Flow Control Valve #11 and insert into the Hose Connector #16, making sure the valve is inserted with the side marked "TOP" still showing. Start by using the Control Washer with the smallest gauge hole (lowest number). Try a larger gauge Washer if experiencing blockages. Place the Filter Screen #13 into position from the outside of the Screw Cap #10 and then attach the Hose Connector #16.
An extra filter screen that helps stop the Control Valve blocking is available from your local store. Ask for the "Optional Stainless Steel Primary Screen" (Product Code: WDAC02). This filter is fitted in addition to the Plastic Filter Screen #13. To install:
After completing step 5, insert the Keeper Ring #1a into the Screen Cap #10 and then place the Optional Stainless Steel Primary Screen on top of the Keeper Ring #1a. Proceed to step 6. - Place the Sealing Ball #5 into the Diverter Chamber #4 and attach the assembled Screw Cap #10 to the Socket #14.
