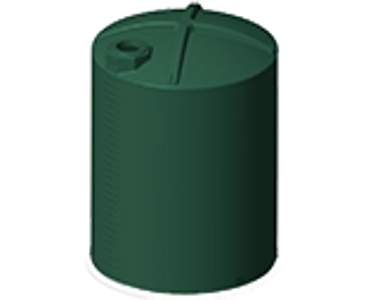

Snyder Industries 12,000 Gallon Green Vertical Water Storage Tank - PN 32078
Snyder 12000 Gallon Plastic Water Storage Tank
Constructed with durable, rotationally molded polyethylene resin, ensuring resistance to cracks, chips, and ruptures.
Built with materials that meet FDA standards for safe-food grade storage, ensuring compliance and safety.
Equipped with UV inhibitors to protect liquid contents from direct sunlight, suitable for indoor and outdoor use.
The black or dark green color prevents light penetration, reducing the growth of algae in the water.
The tanks come pre-fitted with a heavy-duty, bolted bottom drain fitting and a top fitting located near the manway for tank float accessories.
Tanks come standard with large manway openings for easy cleaning and inspection.
📱 For freight quote and lead time.
| Technical Documents | |
|---|---|
| View Technical Drawing | |
| NSF Certification | |
| FDA Statement | |
| Warranty Statement | |
Product Details
Key Specifications
Part Number (MPN): 32078
Capacity: 12,000 gallons
Dimensions: Ø 142″ × H 196.5″
Weight: 2,075 lbs (shipping weight)
Material: FDA-approved, UV-stabilized polyethylene, BPA-free
Color: Green
Inlet: 1 × 1½″ PP female NPT bulkhead fitting
Outlet: 1 × 2″ PP female bulkhead fitting
Manway: 26″ threaded vented lid
Specific Gravity Rating: 1.0 (suitable for potable water)
Certifications: Meets FDA 21 CFR 177.1520; NSF/ANSI 61 compliant
Maximum Operating Temperature: 120 °F (48 °C)
Design Features: Molded gallon indicators; tie-down and lifting lugs; weather-tight lid; stainless-steel bolted fittings; seamless rotational molded construction for durability and crack resistance.
Shipping & Handling
Freight Class: 400 (LTL, over-dimensional freight)
Shipping Dimensions: Matches tank size — Ø 142″ × H 196.5″
Shipping Weight: 2,075 lbs
Shipping Origin: California (e.g., CA warehouse ZIP 93610)
Freight Requirements: Over-dimensional – no liftgate available; forklift or unloading assistance required
Pallet/Truckload Quantity: 2 units per truckload
Lead Time: Typically ships from AL within standard freight timelines; contact for ETA.
| Dimensions | |
|---|---|
| Diameter | 142" |
| Length | 142" |
| Width | 142" |
| Height | 196.5" |
| Weight | 2075lbs |
| Inlet | 1.5 |
| Outlet | 2 |
| Lid Size | 26" |
| Key Specs | |
|---|---|
| Manufacturer | Snyder Industries |
| Color | Green |
| Gallon Capacity | 12000 |
| Gallon Indicators | 1 |
| Specific Gravity | 1 |
| Material | High Density Linear Polyethylene |
| Max Temperature | 120 F/ 48 C |
| Certifications & Compliances | ANSI / NSF 61 Approved, FDA Approved |
| Warranty | 3 years |
