Leaf Eater Advanced
The Leaf Eater Advanced™ is the next generation Rain Head, featuring the new patented Clean Shield™ (single screen) technology and VH Pivot™ outlet.
The RHAD100 Leaf Eater Advanced is a compact, high-performance rain head designed to filter leaves and debris from your rainwater harvesting system. Its dual-size adapters fit both 3" and 4" round or rectangle downspouts, ensuring versatility and ease of installation.
Product Details
THE NEXT GENERATION IN RAIN HEADS
THE NEXT GENERATION IN RAIN HEADS
The Leaf Eater Advanced™ Rain Head prevents debris from entering the Rain Harvesting system, improves water quality and reduces tank maintenance.
The single screen incorporates Clean Shield™ technology which deflects leaves and debris away from the flow of water. This minimizes maintenance and enhances catchment efficiency. This Rain Head incorporates a VH Pivot™ outlet that swivels to suit vertical or horizontal downpipes. The Leaf Eater Advanced™ can also be used as a debris removing device even when rainwater is not being collected.
Nominal Size SKU Number Without Adapter
With Included Adapter Inside Diameter Outside Diameter Inside Diameter Outside Diameter 3" RHAD99 3.175" 3.375" 3.5" 3.75" 4" RHAD98 3.875" 4" 4.5" 4.75" 3" / 4" RHAD100 All of the Above Adapters
| Nominal Size | SKU Number | Without Adapter | With Included Adapter | ||
| Inside Diameter | Outside Diameter | Inside Diameter | Outside Diameter | ||
| 3" | RHAD99 | 3.175" | 3.375" | 3.5" | 3.75" |
| 4" | RHAD98 | 3.875" | 4" | 4.5" | 4.75" |
| 3" / 4" | RHAD100 | All of the Above Adapters |
Key Features
Fits 3" or 4" Round or Rectangle Downpipes – Adapters included
Self-Cleaning Stainless Steel Screen – Keeps out leaves, debris, and mosquitoes
Pivoting Cover – Easy access for cleaning and inspection
Compact & Stylish Design – Ideal for residential or visible installations
Reduces Blockages in Pipes and Improves Water Quality
UV-Stabilized Plastic – Long life under sun exposure
Compatible with Rainwater Tanks, First Flush Systems, and Gutter OutletsCompact, versatile rain head for quick and easy installation
Patented single screen technology for advanced debris shedding (Clean Shield™)
Minimal maintenance

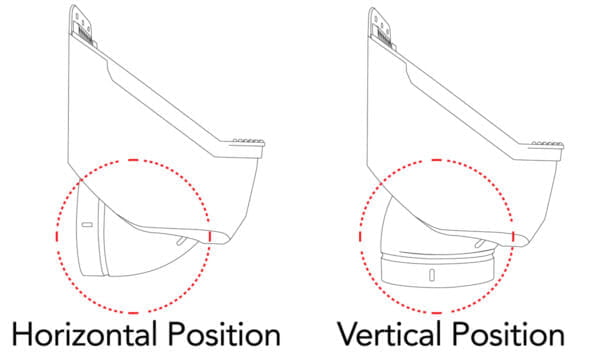

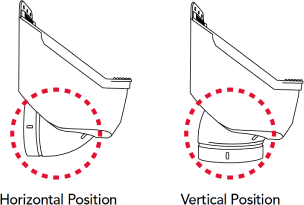

Pivot the outlet to suit vertical or horizontal (rear outlet) downpipes – variety of installation options in one product (VH Pivot™ patent pending)
High flow rate performance
Superior catchment efficiency at low and high flow rates

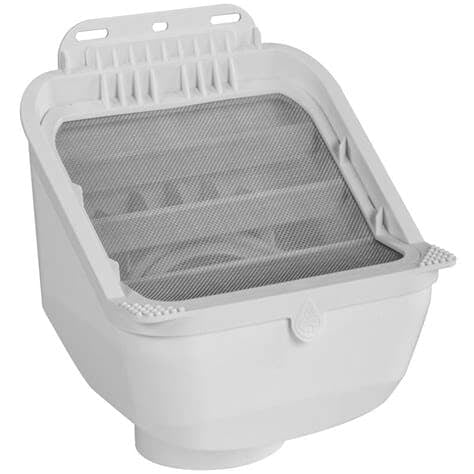

Single screen with 0.955mm aperture mosquito proof stainless steel mesh
Fits 3" or 4" Round or Rectangle Downpipes – Adapters included
Self-Cleaning Stainless Steel Screen – Keeps out leaves, debris, and mosquitoes
Pivoting Cover – Easy access for cleaning and inspection
Compact & Stylish Design – Ideal for residential or visible installations
Reduces Blockages in Pipes and Improves Water Quality
UV-Stabilized Plastic – Long life under sun exposure
Compatible with Rainwater Tanks, First Flush Systems, and Gutter OutletsCompact, versatile rain head for quick and easy installation
Patented single screen technology for advanced debris shedding (Clean Shield™)
Minimal maintenance
Pivot the outlet to suit vertical or horizontal (rear outlet) downpipes – variety of installation options in one product (VH Pivot™ patent pending)
High flow rate performance
Superior catchment efficiency at low and high flow rates
Single screen with 0.955mm aperture mosquito proof stainless steel mesh
Specifications
Inlet Size: 3” or 4” round (includes adaptors)
Outlet Size: 3" or 4" round or rectangle
Screen Material: Mosquito-proof stainless steel
Body Material: UV-stabilized polypropylene
Color: Usually gray or beige (varies by supplier)
Weight: Approx. 1.5 lbs
Flow Capacity: Suitable for high-flow roof areas (up to 400 m² / 4,300 ft²)
Inlet Size: 3” or 4” round (includes adaptors)
Outlet Size: 3" or 4" round or rectangle
Screen Material: Mosquito-proof stainless steel
Body Material: UV-stabilized polypropylene
Color: Usually gray or beige (varies by supplier)
Weight: Approx. 1.5 lbs
Flow Capacity: Suitable for high-flow roof areas (up to 400 m² / 4,300 ft²)
Dimensions
Height: ~11.5 inches
Width: ~9 inches
Depth (Front to Back): ~8 inches
Height: ~11.5 inches
Width: ~9 inches
Depth (Front to Back): ~8 inches
