Rain Harvesting Leaf Eater Advanced 4" Gutter Debris Separator Kit
🌧️ Rain Harvesting Leaf Eater Advanced – 4" Gutter Debris Separator Kit
💧 Advanced rain head with Clean Shield™ technology and VH Pivot™ outlet for cleaner rainwater collection
───────────────────────────────────────────────────────────────────────────
🛠️ Product Overview

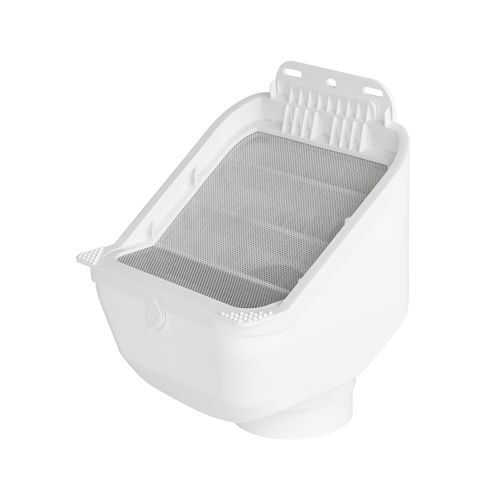

The Rain Harvesting Leaf Eater Advanced is a next-generation rain head designed to improve water quality and reduce maintenance in rainwater harvesting systems. Featuring patented Clean Shield™ single-screen technology and a versatile VH Pivot™ outlet, it effectively filters out debris while allowing flexible installation on both vertical and horizontal downpipes.
$52.00
Choose Quantity :
Product Information
Product Details
📄 Key Specifications • Model: RHAD90 • Pipe Compatibility: Fits 3" and 4" round PVC downpipes • Screen Aperture: 0.955mm (1/32") stainless steel mesh • Material: UV-stabilized plastic housing • Dimensions: 8" L × 8" W × 10" H • Weight: 3 lbs • Installation Orientation: Vertical or horizontal (rear outlet) • Maintenance: Low; self-cleaning screen design • Included Components: - Leaf Eater Advanced rain head - 3" and 4" adaptors - Mounting screws - Installation guide ──────────────────────────────────────────────────────────────────────────── ✅ Benefits • Filters leaves, debris, and insects before they enter your rainwater system • Clean Shield™ technology deflects debris, reducing maintenance • VH Pivot™ outlet allows for versatile installation options • Stainless steel mesh screen prevents mosquito entry • Compact design fits in tight spaces under eaves or gutters • Enhances water quality and extends the life of your rainwater system ──────────────────────────────────────────────────────────────────────────── 🔧 Installation Overview 1. Determine the installation point at least 20" above the tank inlet. 2. Remove a section of the downpipe (approximately 8") at the chosen location. 3. Remove the Clean Shield™ screen by lifting it up and out. 4. Slide the Leaf Eater Advanced into position, ensuring a snug fit with the downpipe. 5. Secure the unit using the provided screws through the mounting slots. 6. Reinsert the Clean Shield™ screen, ensuring it sits firmly in place. 7. For horizontal installations, swivel the VH Pivot™ outlet to the desired position before securing. ──────────────────────────────────────────────────────────────────────────── 🚚 Shipping & Handling • Shipping Dimensions: 8" L × 8" W × 10" H • Shipping Weight: 3 lbs • Ships From: United States • Shipping Method: Standard ground shipping |
