SBS Tank ST10R03 – 30.6K Gal, 100 MPH Wind Rated, NFPA 22 Compliant
🛠️ Product Overview

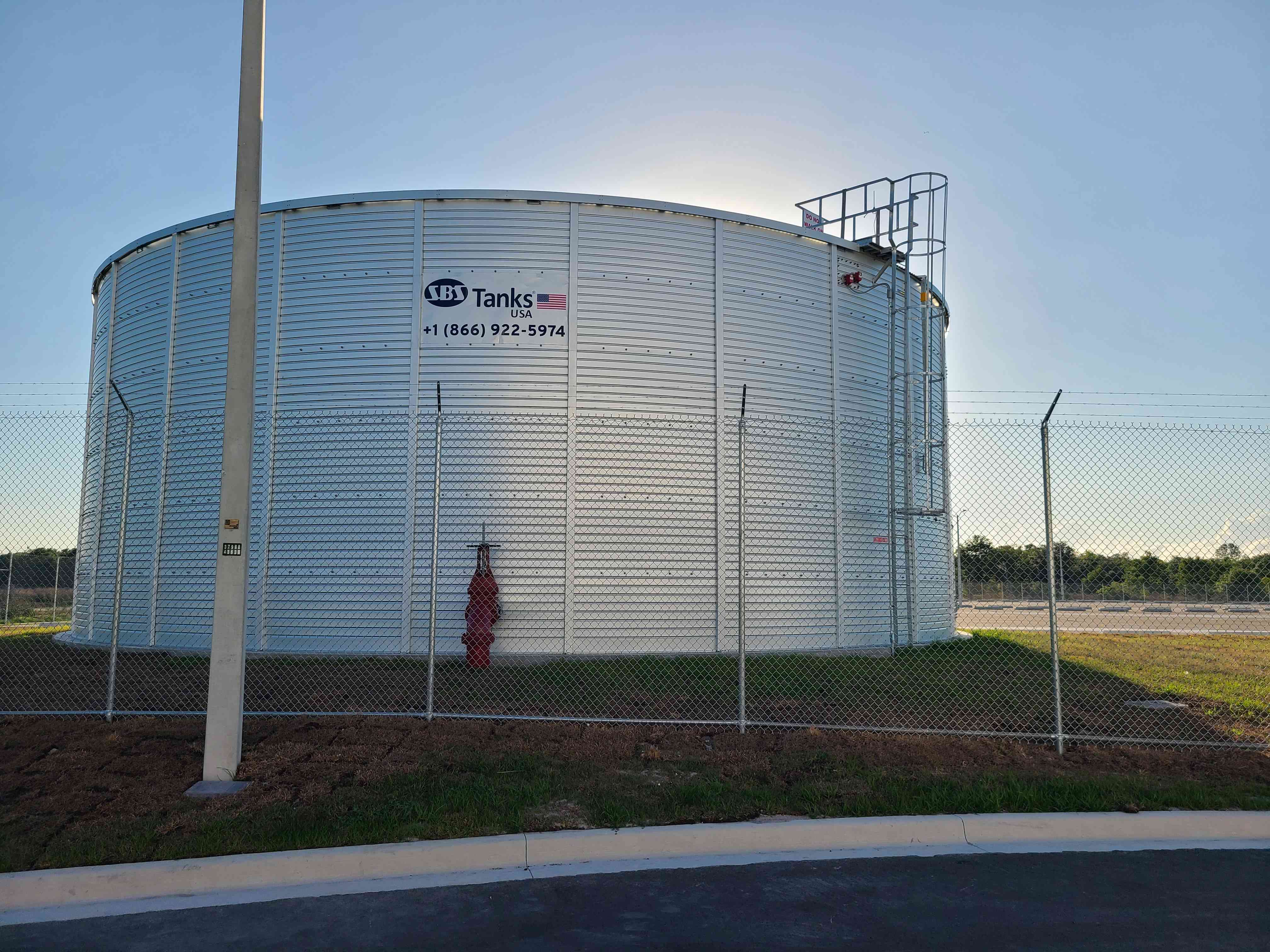

The SBS Tank ST10R03 is a low-profile, high-durability steel reservoir designed for fire protection and potable storage applications in moderate-space installations. Built for 100 MPH wind zones and full NFPA 22 compliance, it features Galvalume® G300 steel walls, a self-supporting dome roof, and a certified liner for long-term corrosion resistance and water safety.
📞Contact Us for freight quote and lead time (Typical delivery time: 12–16 weeks)

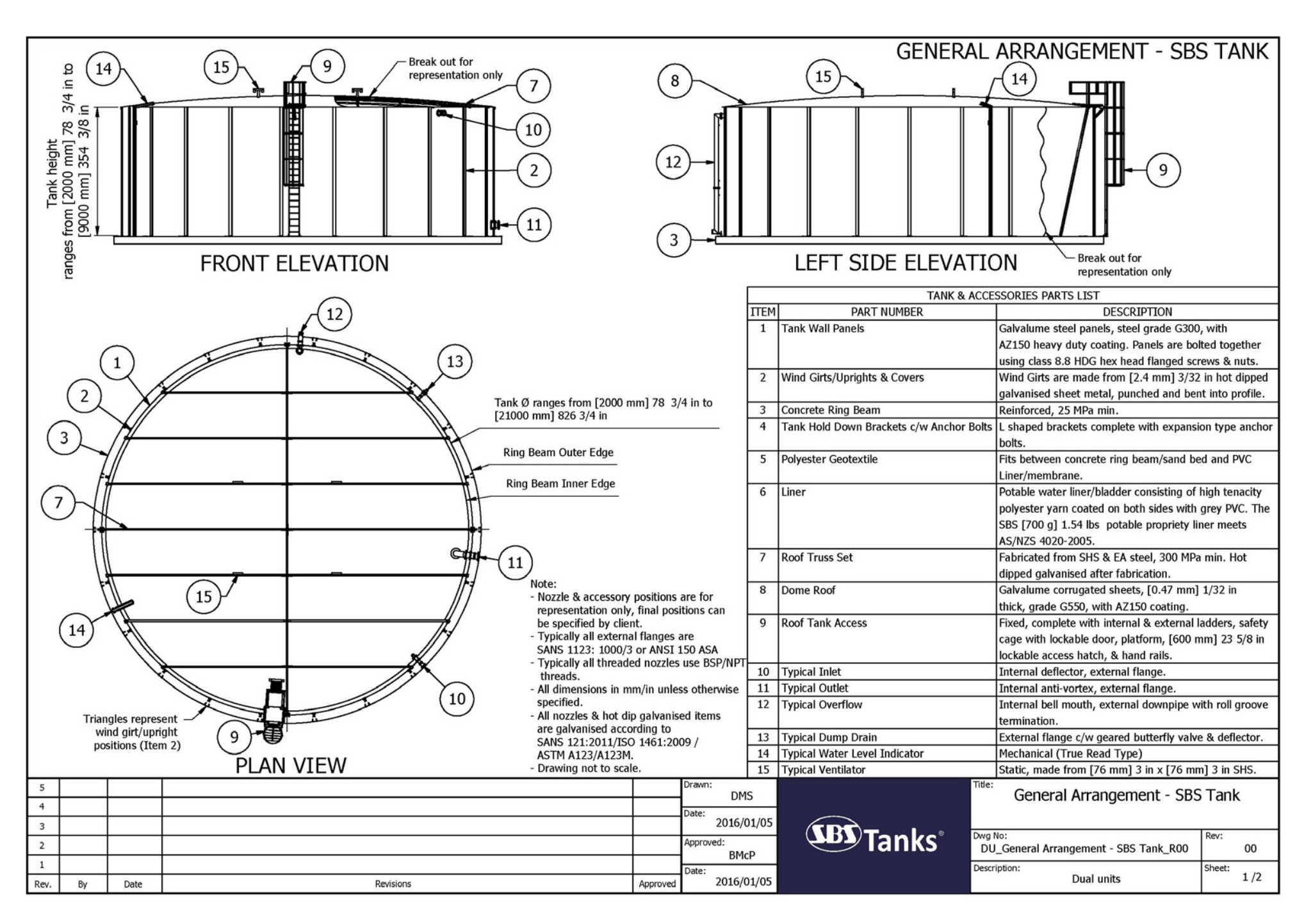

Tank Sizing Chart:
Product Details
📏 Key Specifications
Capacity: 30,591 gallons (gross), 24,500 gallons (usable)
Model Number: ST10R03
Diameter: 24′ 8″
Height: 10′ 5″
Wall Panels: Galvalume® steel, G300 grade with AZ150 coating
Roof: Self-supporting corrugated dome roof
Liner: NSF/ANSI 61-certified synthetic liner
Wind Rating: Up to 100 MPH
Seismic Rating: Earthquake zone compatible
Tank Color: Mill-finish (silver); optional powder-coated exterior
Bolt Design: M10/M12 hot-dip galvanized high-tensile bolts
Nozzles: 2″–6″ galvanized steel or optional HDPE/stainless steel
Lifespan: 60+ years under normal operating conditions
Warranty: 12-month materials/workmanship + 20-year no-leak conditional warranty
📦 Shipping & Handling
Packaging: Flat-packed steel panels and liner
Shipping Weight: ~6,000–7,500 lbs (estimated)
Shipping Method: Containerized freight
Delivery Time: 10–12 weeks (from receipt of order & deposit)
Installation Time: ~3–5 days with certified crew
Site Prep: Level pad with compacted sand or concrete ring beam
Installation Requirements: Forklift or crane required for unloading
