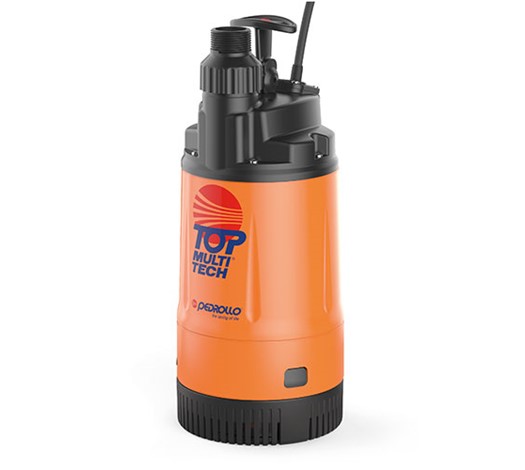

Pedrollo TOP Multi-Tech 5 | 120V Auto Submersible Pump
The Pedrollo TOP Multi-Tech 5 is a high-efficiency, multi-stage submersible pump designed for clean water applications. Ideal for domestic water supply, irrigation, and rainwater harvesting systems, this pump offers reliable performance with integrated electronic controls. 10 GPM @ 50 PSI, 60 PSI shutoff, 1 HP, start point 20 psi (fixed). Automatic dry run protection. Blockage/pump exerciser function. Thermal overload. Class F Insulation. 30' USA grounded plug. 1.25" NHT (or MPT) connection.

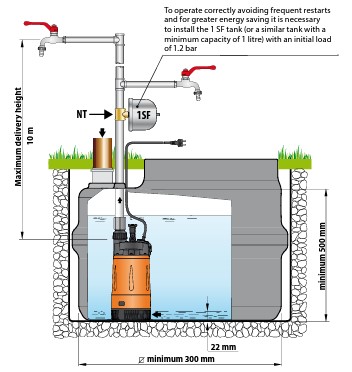

External pressure tank recommended, to prevent short cycling and premature pump wear.
Product Details
🔍 Key Specifications
Part Number: TOP.Multi-Tech.5.120V
Power Supply: 120V, Single-phase
Power: 0.75 kW (1 HP)

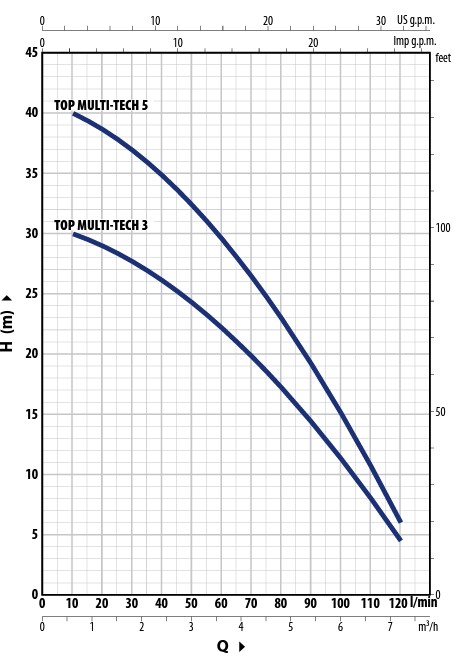

Maximum Flow Rate: 120 L/min (7.2 m³/h)
Maximum Head: 41 meters
Restart Pressure: 1.5 bar
Maximum Immersion Depth: 5 meters
Maximum Liquid Temperature: +40°C
Outlet Size: 1¼" threaded connector
Weight: 23lbs

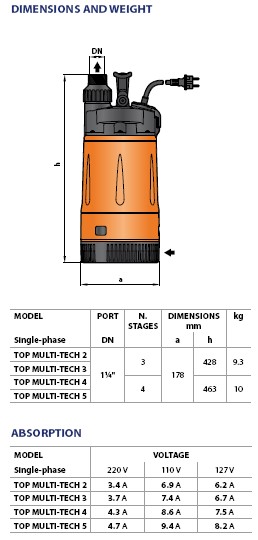

Dimensions: 7" diameter × 18.2" height
🛠️Standard Inclusions
Submersible pump with integrated pressure controller
10-meter power cable
Built-in dry run protection
Hose connector and user manual
🌿 Applications Suitable for:

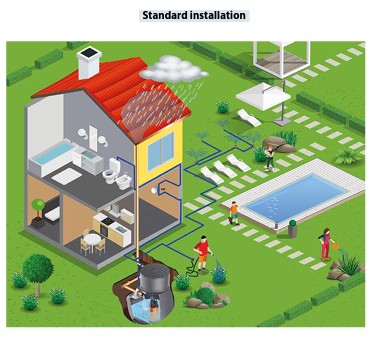

Cistern and rainwater harvesting systems
Residential water supply
Garden and landscape irrigation
Pressure boosting
📄 Certifications & Compliance
Manufactured to ISO 9001 standards
CE compliant
🚚 Shipping & Handling Notes
Shipping Dimensions: 7" L × 7" W × 18.2" H
Shipping Weight: 23lbs
Packaging: Boxed with protective foam
Delivery: Ships via standard ground service
