CorGal WST1204 – 12,300 Gallon Steel Tank w/ Vent & Calc Package
🛠️ Product Overview

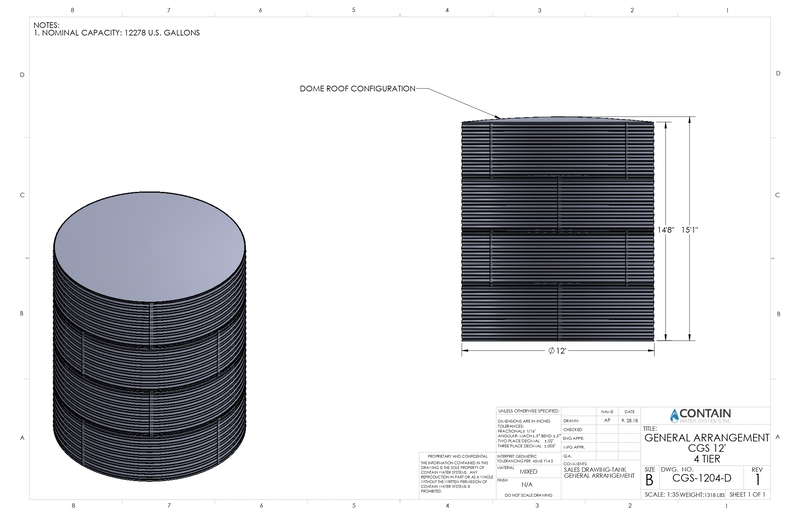

The WST1204 is a 12,300-gallon corrugated steel above-ground water tank designed for applications where a compact diameter and taller vertical profile are preferred. With a 12′ footprint and over 14′ eave height, it is ideal for fire water reserves, irrigation, and utility water storage. This model includes a low-profile vent and a full structural design calculation package, making it well-suited for permitted installations.
Product Details
📏 Key Specifications
Model: WST1204
Capacity: 12,300 gallons
Diameter: 12′ 0″
Eave Height: 14′ 4″
Peak Height: 17′ 11″
Full Load Weight: ~108,000 lbs
Material: Corrugated galvanized steel
Included:
Low-profile roof vent
Structural Design Calculation Package (SDCP)
Applications: Fire protection, irrigation, rainwater harvesting, emergency backup storage
Design: Above-ground with high vertical clearance and efficient footprint
🚚 Shipping & Handling
Packaging: Flat-packed steel panels
Shipping Method: Freight
Lead Time: 4–6 weeks
Installation Time: 3–5 days with certified crew
Site Prep: Level compacted pad or concrete ring beam
Tools Required: Forklift or crane for setup
