CorGal WST3606 – 162,000 Gallon Steel Water Tank Kit
🛠️ Product Overview

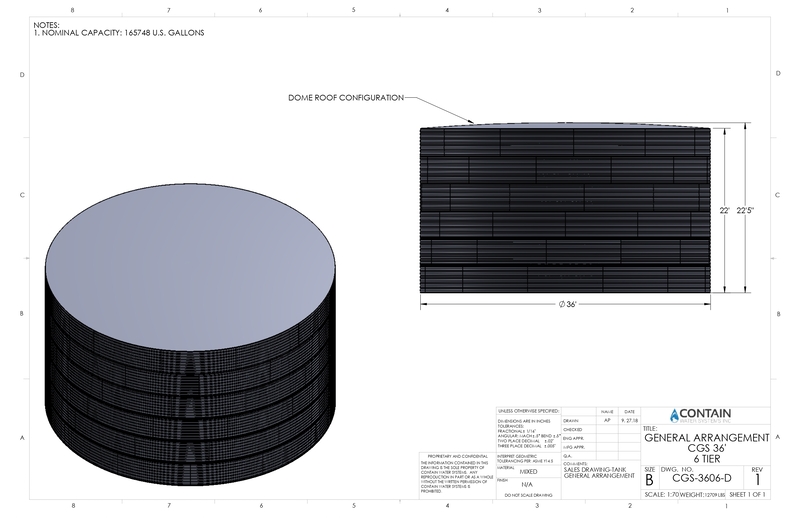

The WST3606 CorGal Model 3606-WT-CHR is a large-scale above-ground corrugated steel water storage tank engineered for high-volume use in fire protection, irrigation, stormwater retention, and rainwater harvesting. With a 36′ diameter, over 21′ eave height, and over 31′ peak, this tank kit provides exceptional capacity and structural reliability. Its modular design allows for fast field assembly, and it's ideal for both commercial and municipal installations.
Product Details
📏 Key Specifications
Model: WST3606 / 3606-WT-CHR
Nominal Capacity: 162,000 gallons
Diameter: 36′
Eave Height: 21.42′
Peak Height: 31.33′
Construction: Corrugated galvanized steel
Roof Style: High-rib conical roof
Design: Above-ground tank kit for rapid deployment
Applications: Fire reserves, irrigation systems, rainwater harvesting, stormwater control
🚚 Shipping & Handling
Packaging: Flat-packed steel panels
Shipping Method: Freight
Lead Time: Typically 8–10 weeks
Installation Time: 6–8 days with certified crew
Site Prep: Compacted gravel base or concrete ring beam
Installation Requirements: Forklift or crane required
