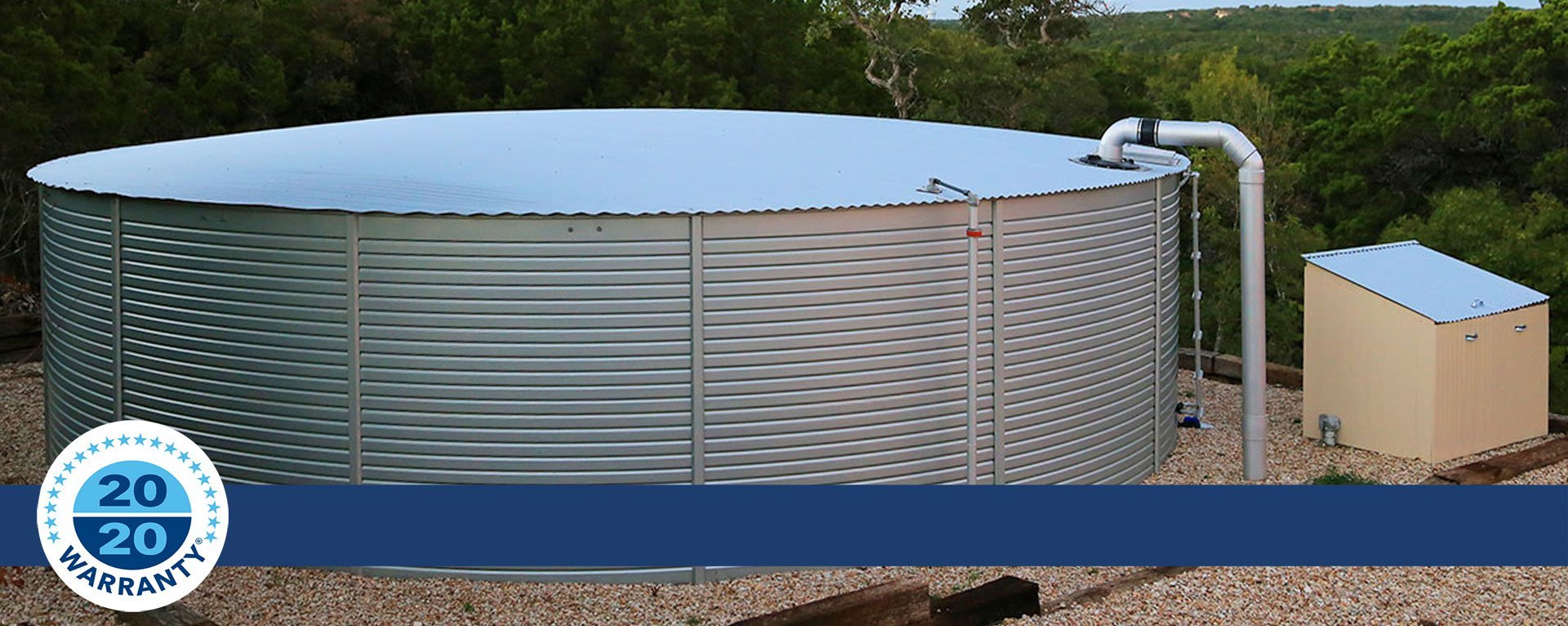

Pioneer Water Tanks XL25/08 – 132,082 Gallons
The Pioneer XL25/08 is a custom-engineered steel water storage tank offering a massive 132,082-gallon nominal capacity. Built with Zincalume® steel, this heavy-duty tank is part of Pioneer’s XL Series and is ideal for large-scale water storage needs including agriculture, commercial use, or municipal supply.
STANDARD INCLUSIONS
AQUALINER® FRESH
The first antimicrobial tank liner in the world, our exclusive five-layer AQUALINER® Fresh keeps your water fresher for longer with embedded Sanitized® Silver technology. With a life expectancy of 65 years, the AQUALINER® Fresh is designed to fit the Pioneer Water Tank to prevent contamination.
GEOTEXTILE UNDERLAY
Our geotextile underlay is the ideal way to protect your AQUALINER® Fresh from being compromised by sharp objects that may be caught inside your water tank.
SUPER SEAL
Reduce the number of contaminants to protect your precious water supply with Pioneer Water Tanks’ high-density foam sealer.
SACRIFICIAL ANODES

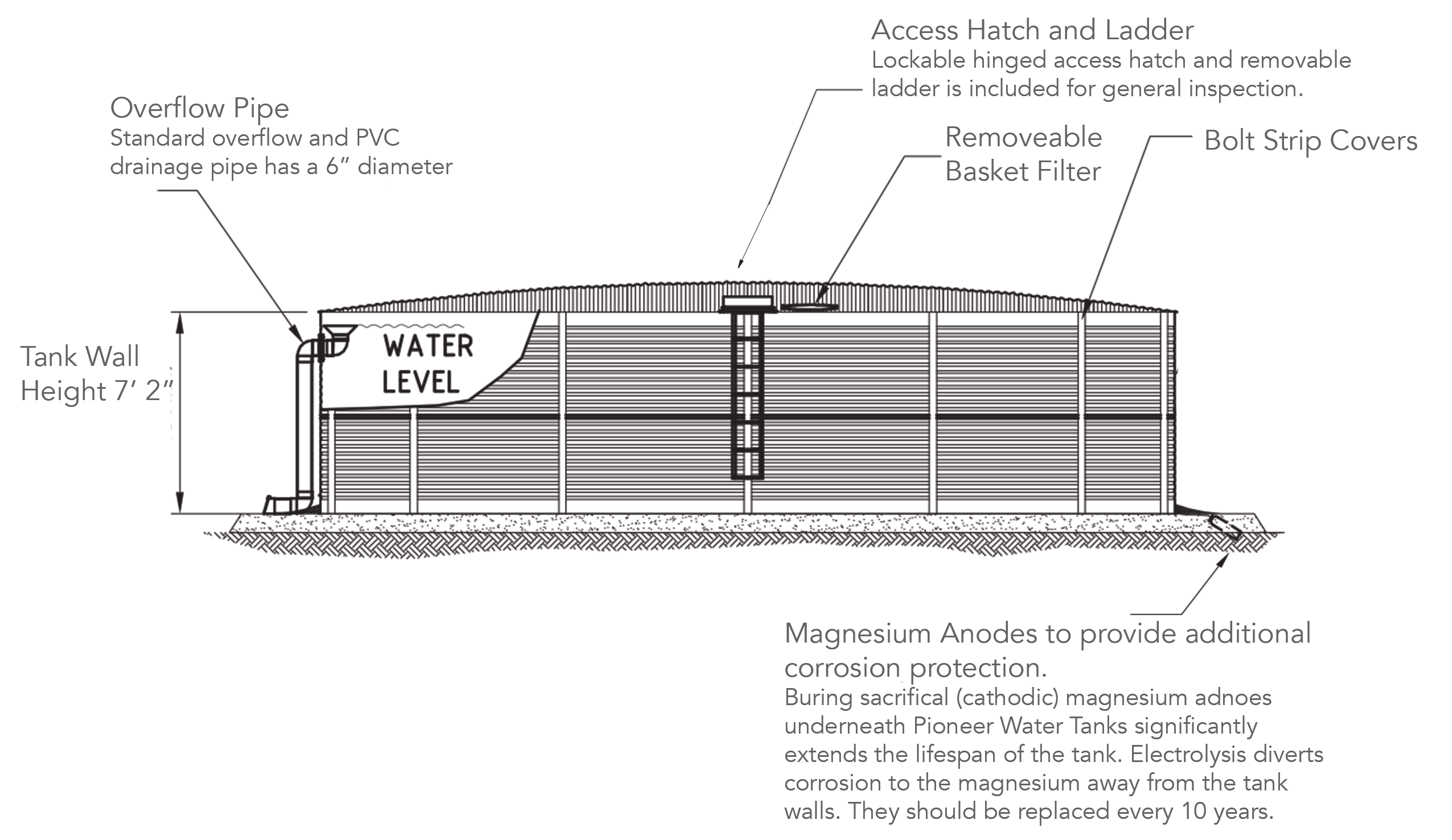

Our sacrificial magnesium anodes significantly extend the life of your water tank by protecting the tank from corrosion. Made from magnesium, the anodes erode in place of the water tank, thereby protecting the steel and allowing the tank to last longer than other systems. Pioneer Water Tanks recommend your anodes be replaced every 10 years so you can enjoy the benefits of your tank for life.
6-INCH DIAMETER OVERFLOW
Pioneer Water Tanks provides a 6” diameter overflow downpipe, the largest overflow system on the market. The overflow size moves excess water away from the tank quickly to effectively reduce pressure on your tank and avoid costly damage to your tank components.
$143,221.60
Choose Quantity :
Product Information
Product Details
📄 Key Specifications
Model: XL25/08
Capacity: 132,082 Gallons (Nominal)
Diameter: 28′ 7″
Straight Wall Height: 27′ 8″
Material: Zincalume® Steel
Coating: Standard Zincalume finish
Liner: (Varies by package – typically includes AQUALINER® Fresh antimicrobial liner if specified)
Roof System: Optional or engineered as per application
Outlet: Configurable based on engineering requirements
Overflow: Configurable
Access: Optional hatch and ladder system
Note: Net usable gallons may vary depending on site-specific engineering
🌿 Features
• Engineered for extreme capacity and site-specific applications
• Constructed from corrosion-resistant Zincalume® steel
• Modular base tank kit for custom configuration
• Ideal for rural water supply, fire protection, or commercial irrigation
• Compatible with liner and roof upgrade packages
🔧 Applications
• Agricultural irrigation and livestock storage
• Municipal or commercial water reserves
• Industrial process water supply
• Fire protection in non-residential applications
🚚 Shipping & Handling
Ships via freight on multiple skids
Requires crane or lift equipment for assembly
Weight and shipping dimensions vary by configuration
Engineering documents required for installation approval (if applicable)
