CorGal WST3903 – 97,000 Gallon Steel Water Tank
🛠️ Product Overview
The WST3903 is a high-performance, corrugated galvanized steel tank built for demanding water storage applications including fire protection, municipal supply, and industrial use. With a wide 39′ diameter and over 10′ eave height, it provides 97,000 gallons of capacity and supports up to 840,000 lbs when full. This model includes a roof hatch and a complete flange penetration kit (2″, 3″, 4″, and 8″), offering maximum connection flexibility for inlet, outlet, overflow, and drain lines.
Product Details
📏 Key Specifications
Model: WST3903
Capacity: 97,000 gallons

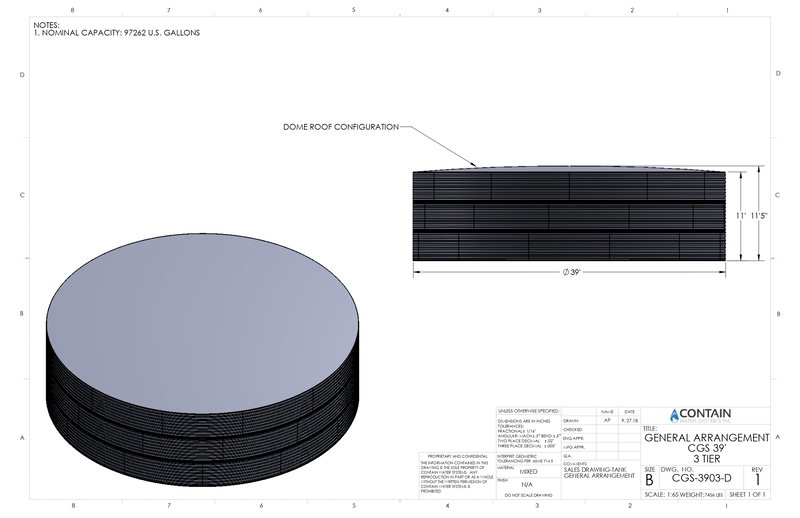

Diameter: 39′ 0″
Eave Height: 10′ 9″
Peak Height: 22′ 2″
Full Load Weight: ~840,000 lbs
Material: Corrugated galvanized steel panels
Included Accessories:
Roof hatch
2″, 3″, 4″, and 8″ flange penetration kits
Applications: Fire suppression, stormwater storage, municipal water, industrial systems
Design: Above-ground dome-roof tank with multi-port access
🚚 Shipping & Handling
Packaging: Flat-packed steel panels and flange kits
Shipping Method: Freight
Lead Time: 6–8 weeks typical
Installation Time: 5–7 days with certified crew
Site Prep: Compacted pad or concrete ring beam required
Tools Required: Crane or forklift, pipe connection tools
