SBS Tank ST19R07 – 254.9K Gal, 100 MPH, NFPA 22
🛠️ Product Overview

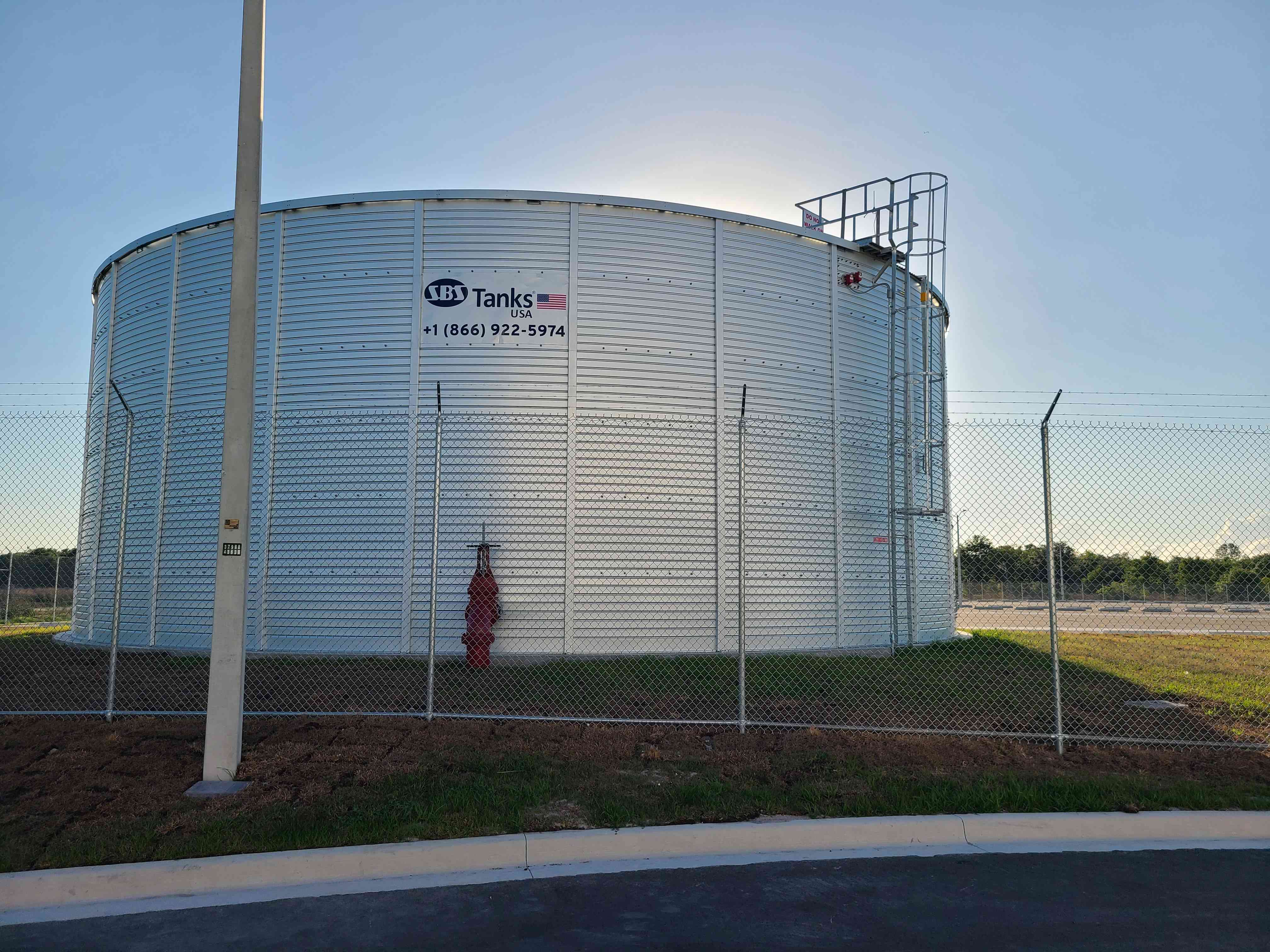

The SBS Tank ST19R07 is a robust, large-scale bolted steel tank engineered for high-capacity fire protection and water storage in wind-prone regions. Built to meet NFPA 22 standards and wind-rated up to 100 MPH, it features heavy-duty Galvalume® steel construction, a self-supporting dome roof, and a potable-certified liner—ideal for municipal, agricultural, or emergency use applications.
Tank Sizing Chart:
Product Details
📏 Key Specifications
Capacity: 254,930 gallons (gross), 228,000 gallons (usable)
Model Number: ST19R07
Diameter: 42′ 7″
Height: 24′
Wall Panels: Galvalume® steel, G300/G550 grade with AZ150 coating
Roof: Self-supporting corrugated dome roof
Liner: NSF/ANSI 61-certified synthetic liner
Wind Rating: Up to 100 MPH
Seismic Rating: Earthquake zone compatible (optional design)
Tank Color: Mill-finish (silver); optional powder-coated exterior
Bolt Design: M10/M12 hot-dip galvanized high-tensile bolts
Nozzles: 2″–6″ galvanized steel or optional HDPE/stainless steel
Lifespan: 60+ years under normal operating conditions
Warranty: 12-month materials/workmanship + 20-year no-leak conditional warranty
📦 Shipping & Handling
Packaging: Flat-packed steel panels and liner
Shipping Weight: ~15,000–16,000 lbs (estimated)
Shipping Method: Containerized freight
Delivery Time: 10–12 weeks (from receipt of order & deposit)
Installation Time: ~6–8 days with certified crew
Site Prep: Level pad with compacted sand or concrete ring beam
Installation Requirements: Forklift or crane required for unloading
